Storike 1.2 ton 12hp China Suppliers Mini double drum vehicle type vibratory road rollers compactors price for sale ST-1200

Introduction:

Variable displacement pump and fixed displacement motor

Tandem walking drive

Hydraulic articulated steering

Vibration switch on the instrument panel

Each wheel is equipped with the two blades

Gravity sprinkle system

Adjustable driver’s seats

Plastic water tank


Product Detail

Product Tags

Video

Features

1.The machine is equipped with the brand power,brand-name quality assurance,superior performance,easy to start.

2.The machine is selected of international brand-name Hydraulic variable pump and quantitative mator,continuously variable,it can walk backward and forward.

3.It has Hydraulic steering,steering light and flexible.

4.It has completed control function,to fully control the machine running at any time.

5.It uses the Japanese-made Nsk(seiko)bearings ,to ensure the machine's performance.

6.It is installed of luxury seats,easy adjustment,comfortable work.

7.It has streamlined body design,more beautiful and generous.

8.The machine's surface is treated by spray.

9. The product has passed CE certification.

Standard configurtion

Variable displacement pump and fixed displacement motor

Tandem walking drive

Hydraulic articulated steering

Vibration switch on the instrument panel

Each wheel is equipped with the two blades

Gravity sprinkle system

Adjustable driver's seats

Plastic water tank

Control and warning indicators

Work chronographs

Mechchical transmission electromagnetic clutch

Anti-tilt protection

Parameter

Technical paramerers Unit
Model ST1200A ST1200B ST1200S
Operating weight kg 1200 1200 1230
Static line load n/cm 56/77 56/77 58/77
Size
Working width mm 825
Length of the whole machine(protective frame dumped/upped) mm 1870/1780
The height of the whole machine(protective frame is titled /upped) mm 1450/1985
Outside turning radius mm 2600
Steel wheel width mm 700
Steel wheel diameter mm 500
Wheelbase mm 1230
Drive
Engine brand Honda Changfa/Changchai Fuzhou golden flying fish
Engine model GX390 186F
Number of cylinders a 1 1 SRD90N-1
Output power kw 9.7 6 5.88
Rotating speed rpm 3600 3600 2400
Electrical equipment v 12
Drive way Variable plunger pump/Stepless variable speed/Hydraulic double drive
Walking characteristics
Speed km/h 0-6
Theoretical climbing ability % 30
Brake
Working brake Variable piston pump
Steering
Steering method Hydraulic steering
Steering system Swing articulated
Excitation system
Vibrating steel wheel Forward
Vibration form Mechanical transmission,electromagnetic clutch
Vibration frequency hz 70/65
Vibration amplitude mm 0.5
Exciting force kn 25
Sprinkler system
Form Intermittent electronic pressure water spray
Capacity
Hydraulic oil capacity l 15
Fuel capacity l 6.5 5.5 10
Water tank capacity l 67

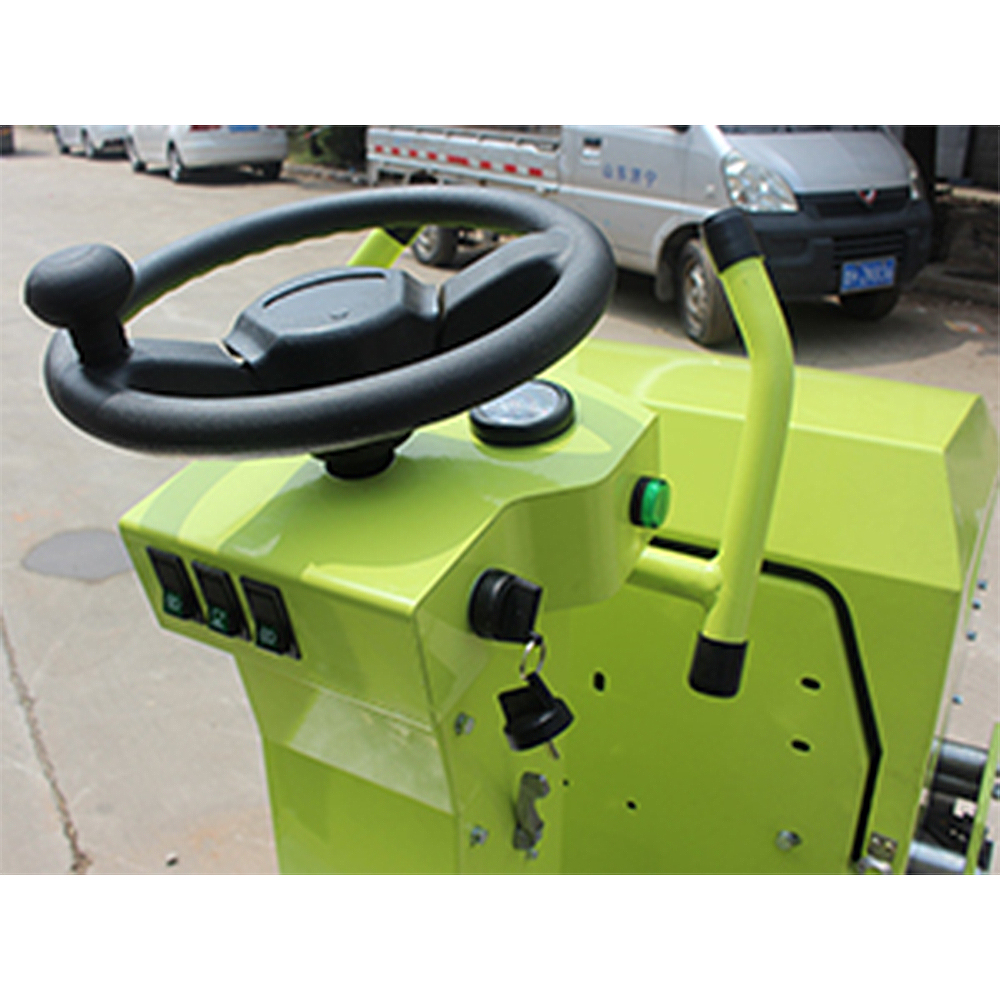

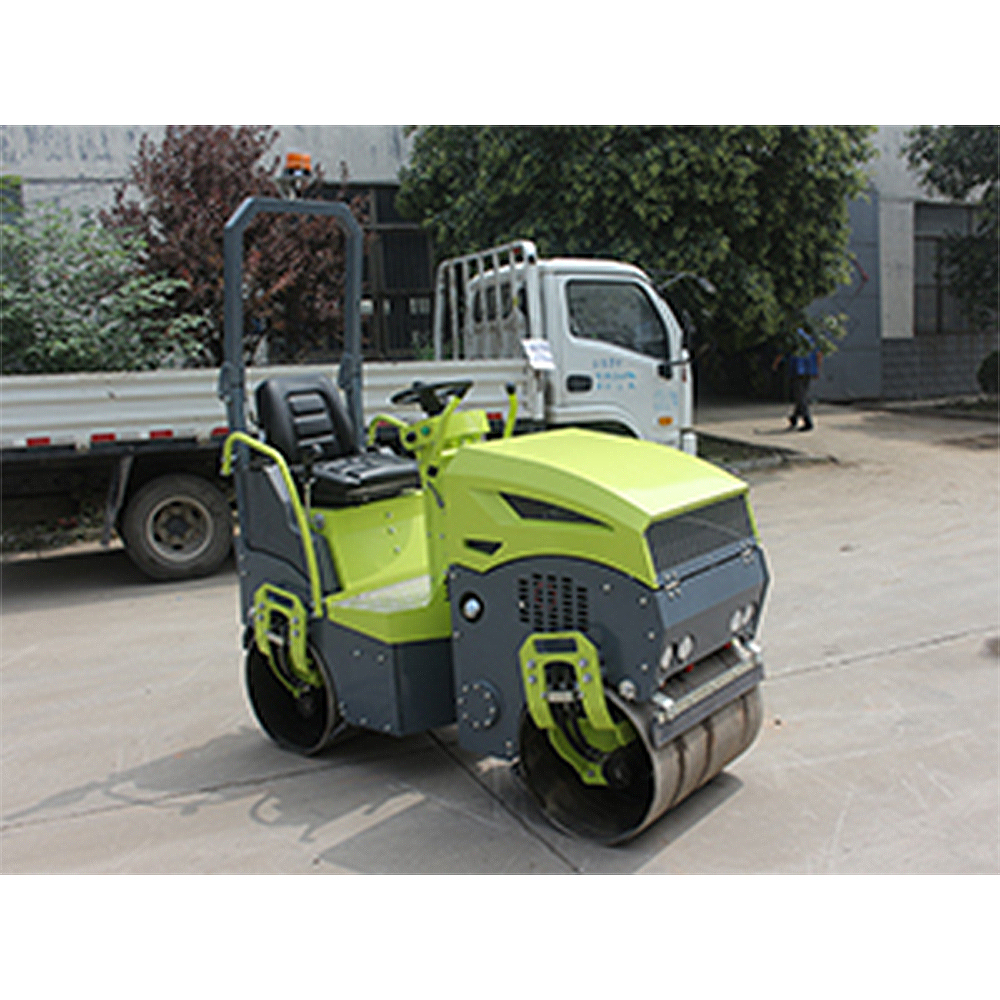

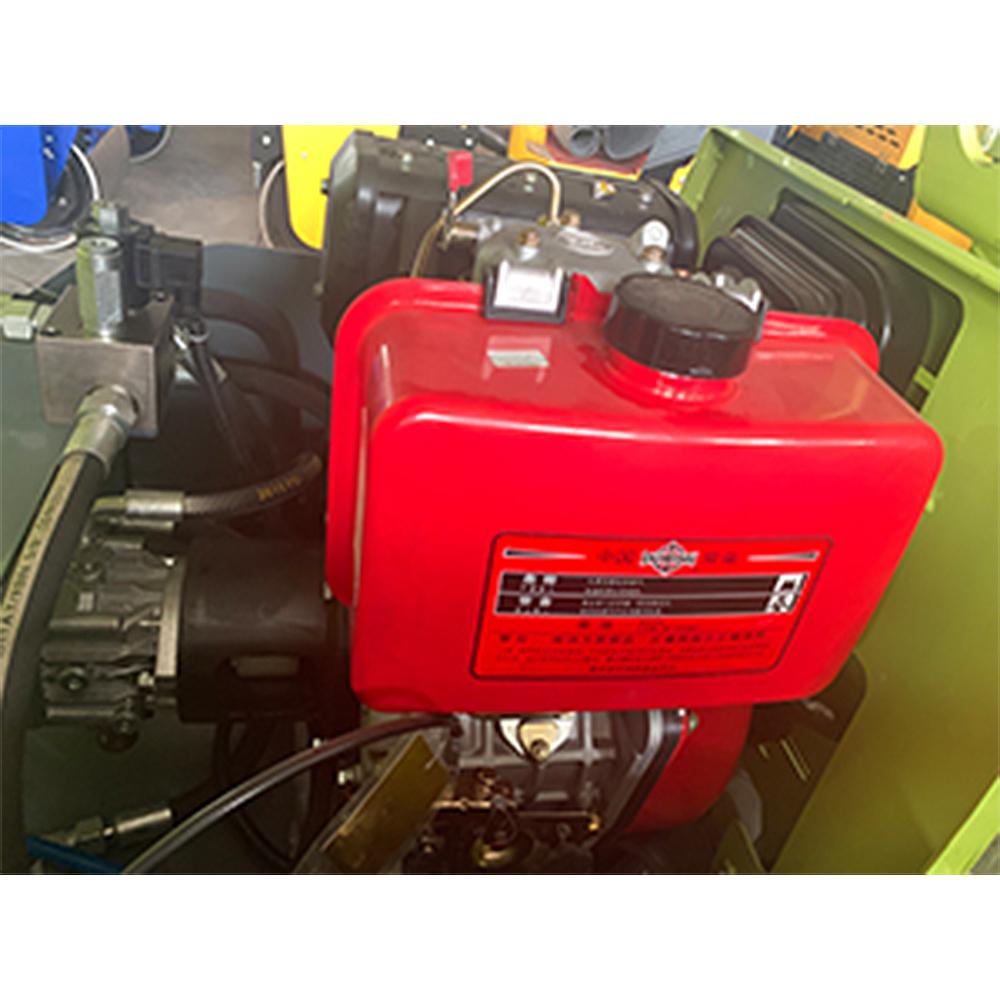

Product Display
