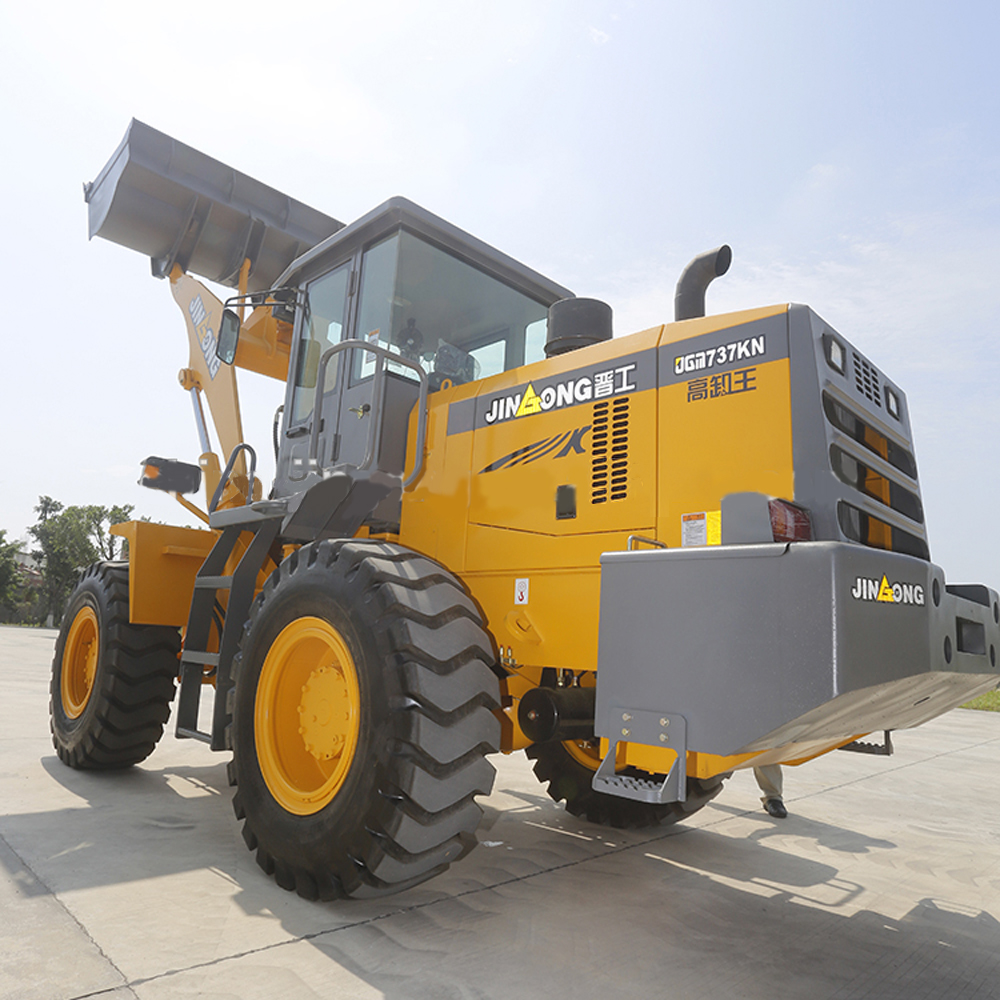

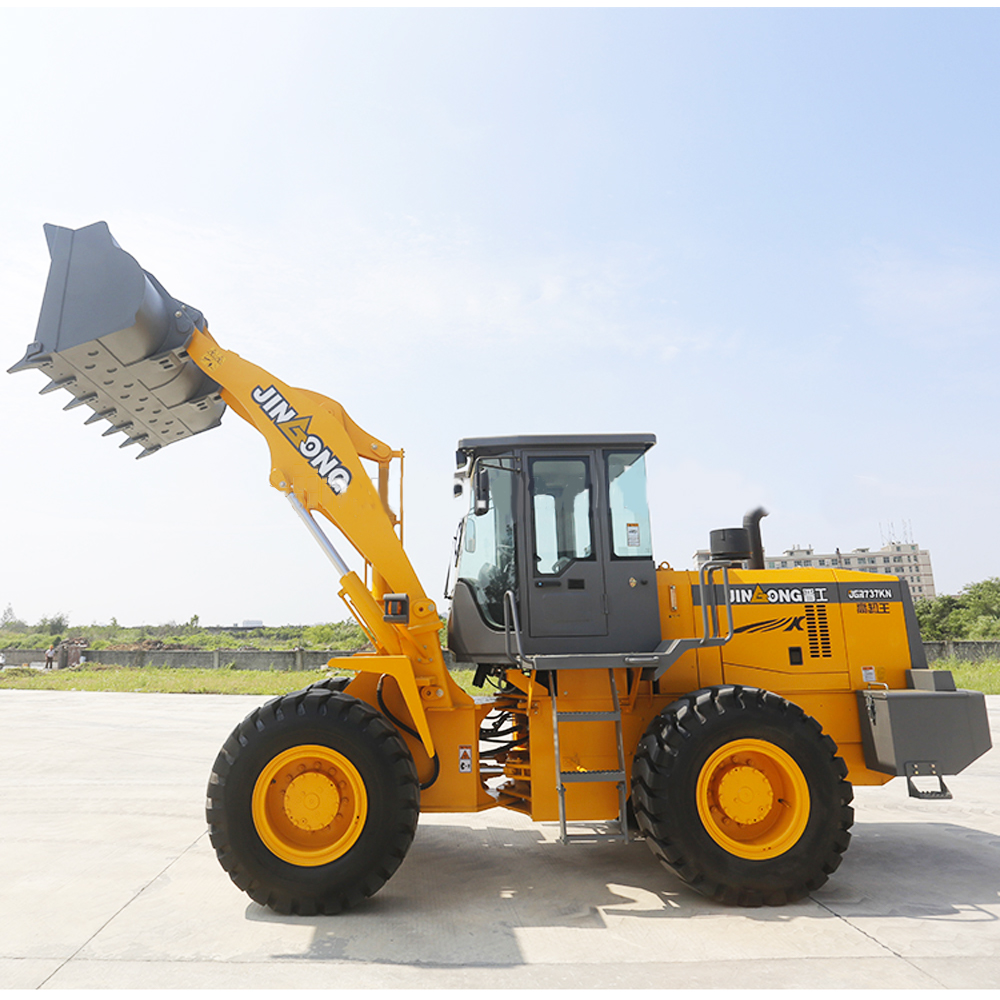

3 ton JGM737-III new model Wheel loader

Introduction:

(1)SHENZHOU luxury cab ;
(2)cool or cool&warm AC ;
(3)Qianjin tyre(first-class in China ;
(4)excavator standard painting ;


Product Detail

Product Tags

Video

Optional Equipment

(1)SHENZHOU luxury cab ;
(2)cool or cool&warm AC ;
(3)Qianjin tyre(first-class in China ;
(4)excavator standard painting ;

Features

Quipped with Yuchai 6108G diesel engine,which is of high power reserve,excellent performance and reliability.
With single-turbine,three-elements hydraulic converter and fixedshaft power shift transmission (forwrd4 reverse 2 ),the product matches rationally,is powerful and efficient.
Fully hydraulic steering system with load sensing ,decrease the loss of power and enhance the work efficiency.
Articulated frame,turn radius is small.
Z-bar loader linkage is capable of high breakout force and high dump height.
All-wheel,dual-line,disc-caliper-type brakes,rear mounted airreservoirs,ensure safety and reliability.
Quenched integral cutting edge bucket,more strength,better wearing resistance and long life.
New ,sound insulated ,air pressurization cab with optional air conditioner provides excellent visibility and operator's station.

Parameter

Main Specification

Operating Weight

10300kg

Standard bucket capacity

1.7m3

Rated Load

3000kg

Max Tractive Force

95KN

Max Dumping Height

2850mm

Dumping Reach

1000mm

Overall dimension

7040*2460*3200mm

Engine

Model

Weichai Deutz TD226B-6G

Type

4-stroke, inline diesel engine, turbo charged direct-injection

Qty of Cylinders-Bore/Stroke

4-105*120mm

Rated Power

92KW

Rated Speed

2300r/min

Fuel Tank

150L

Hydraulic Tank

180L

Transimission System

Torque Convertor

Single-phase 3-element torque converter

Transmission

Sead axle power gearbox

Optional Equipment

High Lift

Bigger coal bucket

Rock bucket

Derivatives

Loader with high dumping height

underground mining machine
