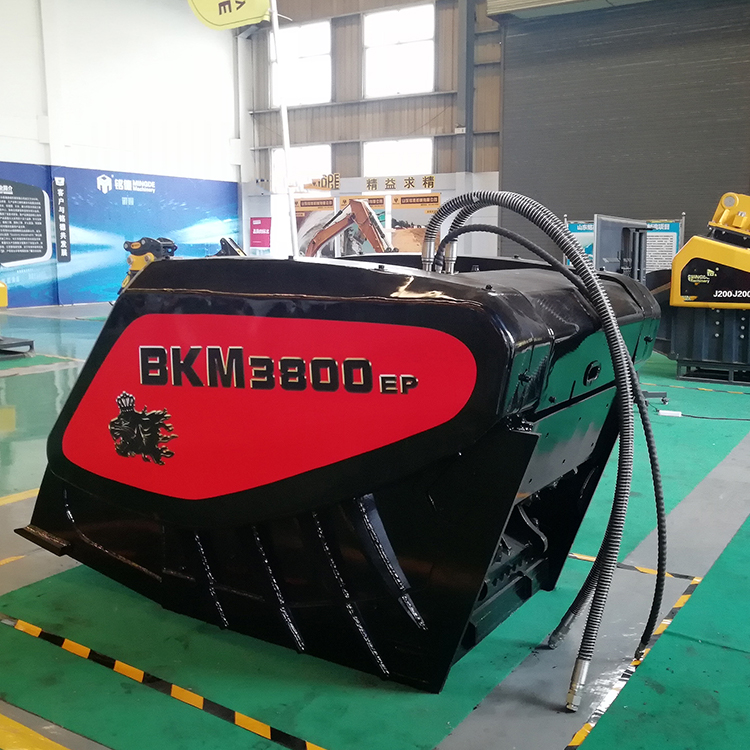

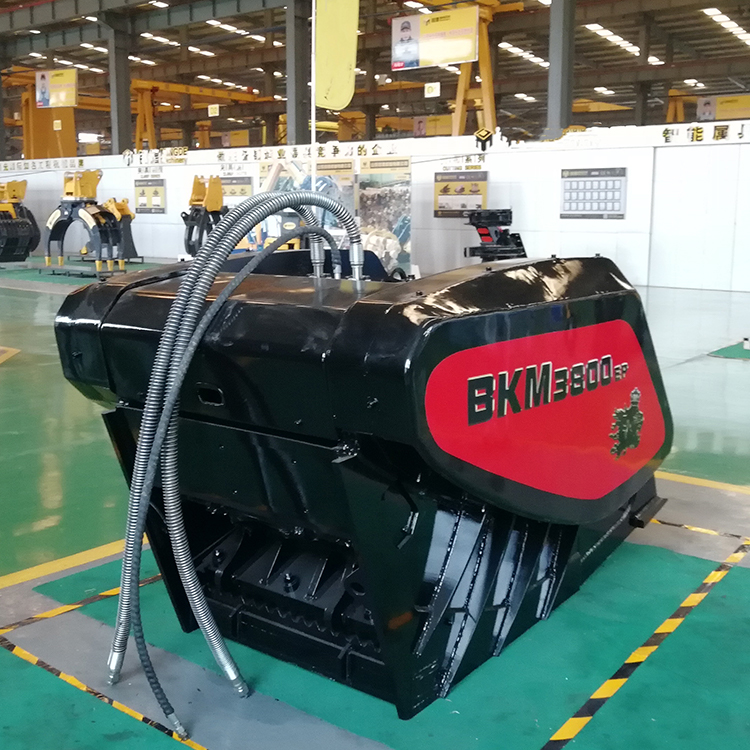

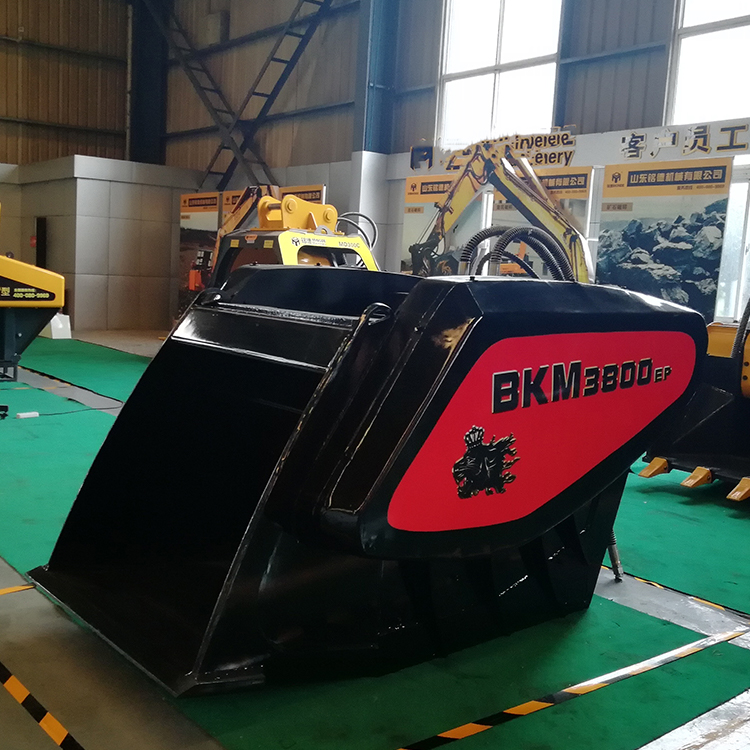

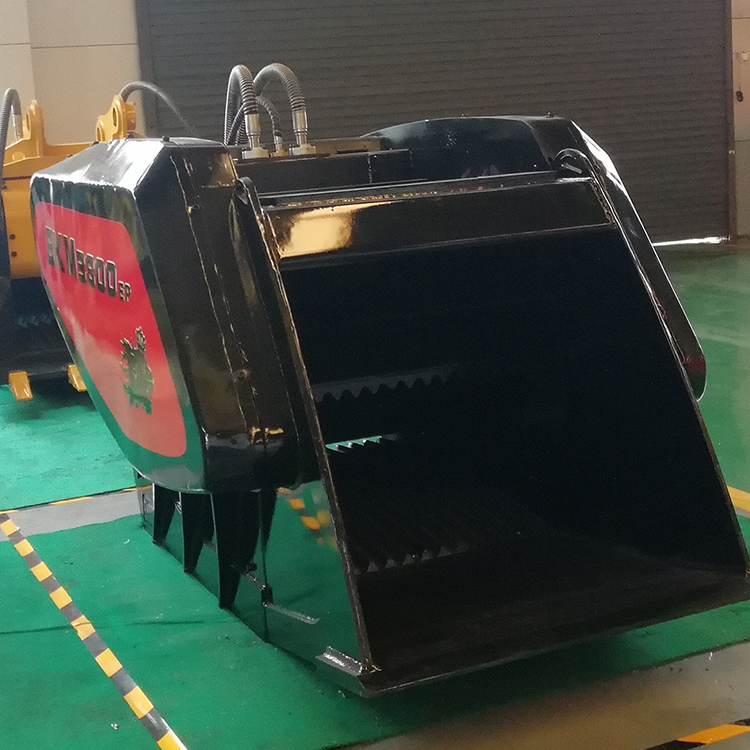

BROOKMAN Excavator jaw crusher bucket

Introduction:

Item NameBKM Crusher Bucket

ModelBKM—3800

The output for crushing Concrete blocks:  around 20-35 tons/ hour

The output for crushing rock stonearound 15-30 tons/hour

About output are based the actual excavator model, the size of feeding material and output material size.

Brand ValueGermany brandEuropean Quality.


Product Detail

Product Tags

Video

Product Description

BKM Crusher bucket Features:

1、The BKM hydraulic jaw crusher with high swing frequency, optimized deep cavity hyperboloid cavity, the jaw plate participates in the work from top to bottom, low working noise, and stable operation.

2、The wear resistance and strength of the super curved jaw plate, the upper and lower jaw plates can be changeable, and the front and back of a single jaw plate can also be used interchangeably, which greatly extends the service life of the product

3The crusher bucket with both coarse crushing and fine crushing functions, which with more 30% output than same feeding size crusher.

4Made of imported Sweden SSAB HARDOX steel, with compact structure, light weight and stable quality.

5The size of the discharge port can be easily adjusted from 10mm to 120mm

It is suitable for the crushing of granite, basalt, pebble, limestone and other rocks. It is suitable for the crushing of all concrete and building demolition solid waste, and it is handy for dealing with hard rock. Heavy-duty structure, can work under high load for a long time.

All BKM series bucket crushers are equipped with hydraulic reversal function, which can easily improve the working efficiency and handle the clamping machine

Product parameter

MOdel BKM2200EP BKM3000EP
Excavator Weight(t) 15-24 24-30

Feeding Size(A*B)(mm)

800*505 900*505

Working Pressure(bar)

220 220
Oil Flow(l/min) >100 >145

Discharge Port Size(mm)

10-100 12-100
Capacity(m3) 0.51 0.8
Size(L*W*H)(mm) 1945/1105/1285 2215/1215/1375
Weight(kg) 2200 3100

Product Image

dav
dav
dav
sdr
