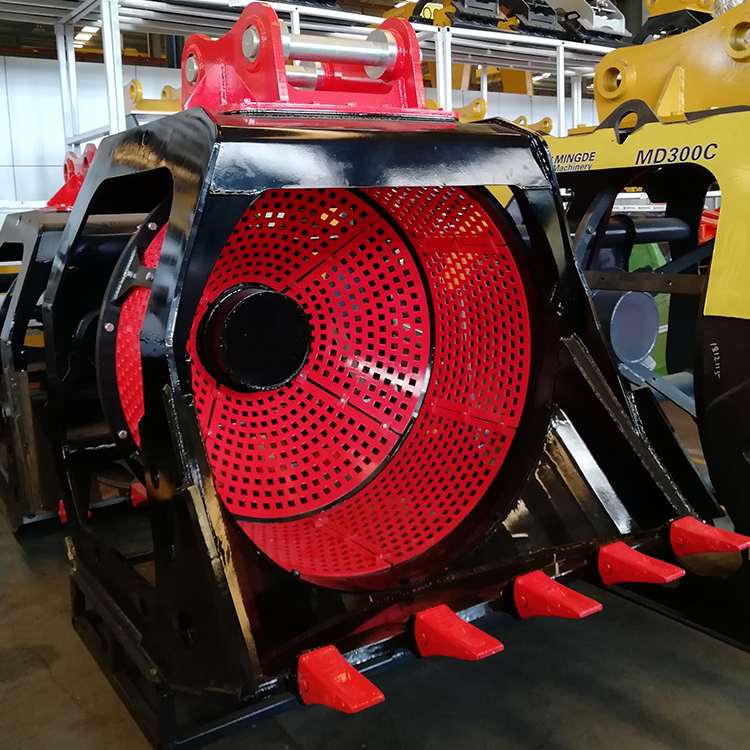

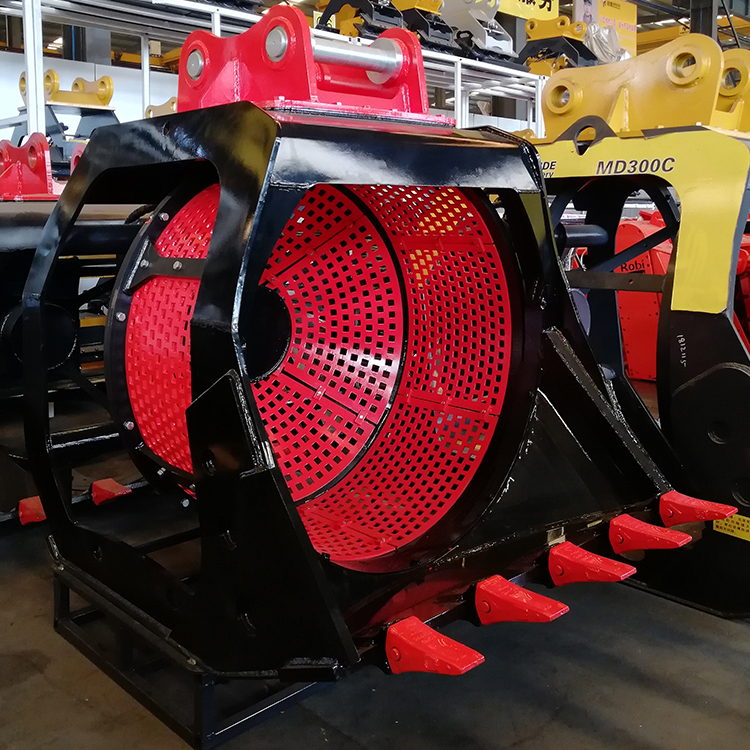

BROOKMAN Excavator Rotary Screening Bucket
Excavator rotary screening bucket, Crushing Sieve Bucket, specially designed multi-functional crushing sieve bucket for screening, sorting, mixing and composting. The customers can choose to installed on excavators or loaders according to the best utilization plan of sieve bucket. Through the soil wheel axle, the crushing screen can sift out different materials, including surface soil, sand and the parts below.
Excavator rotary screening bucket features
1. Supply wide-range the widths, tine configurations and capacities.
1. The bolt mounting type provides for maximum utilization various size machines
2. The Mesh size can be customized and the screening is changeable easily
3. Low noise to meet with environmental protection requirement.
Model |
MSB02 |
MSB08 |
MSB12 |
MSB16 |
MSB18 |
Machine Class(t) |
2-4 |
6-10 |
12-17 |
18-23 |
25-36 |
Rotary Screen Diameter(mm) |
610 |
810 |
1000 |
1350 |
1500 |
Rotrting Speed(r/min) |
60 |
65 |
65 |
65 |
65 |
Working Pressure(bar) |
150 |
220 |
230 |
250 |
250 |
Oil Flow(L/min) |
30 |
60 |
80 |
110 |
110 |
Weight(kg) |
175 |
630 |
1020 |
1920 |
2430 |
