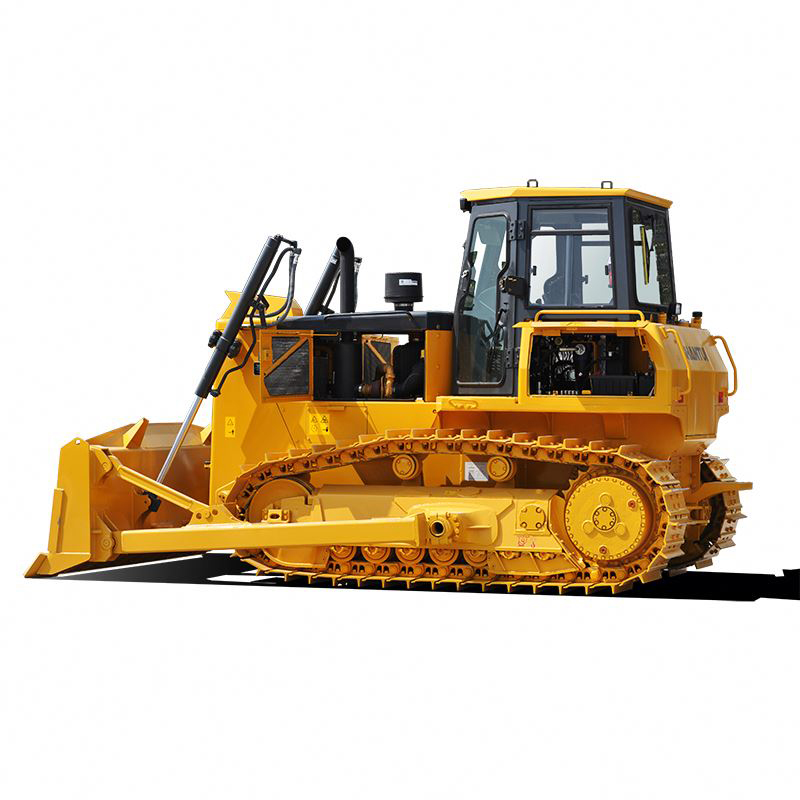

Shantui 23ton Cheap Earthmoving Machine SD26 Imported Engine Mining Bulldozer Made In China Hot Sale
The structural parts inherit the excellent quality of Shantui mature products.
The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.
The openable large-space side hoods make the repairs and maintenance easier.
All lubricating and maintenance points of machine are directed to the outer side of machine body to achieve convenient and rapid maintenances.
Shantui’s mature product chassis system is applicable to diversified severe working conditions, featuring high stability and reliability.
Long ground length, high ground clearance, stable driving, and good trafficability.
The straight tilting blade, semi-U blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.
The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.
The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.
The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.
Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.
The installed Weichai engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.
The rated power reaches 175kW, featuring high torque reserve coefficient.
The engine intake system adopts radially sealed intake system.
|
Parameter name |
SD26 |
SD26E(LONG TRACK) |

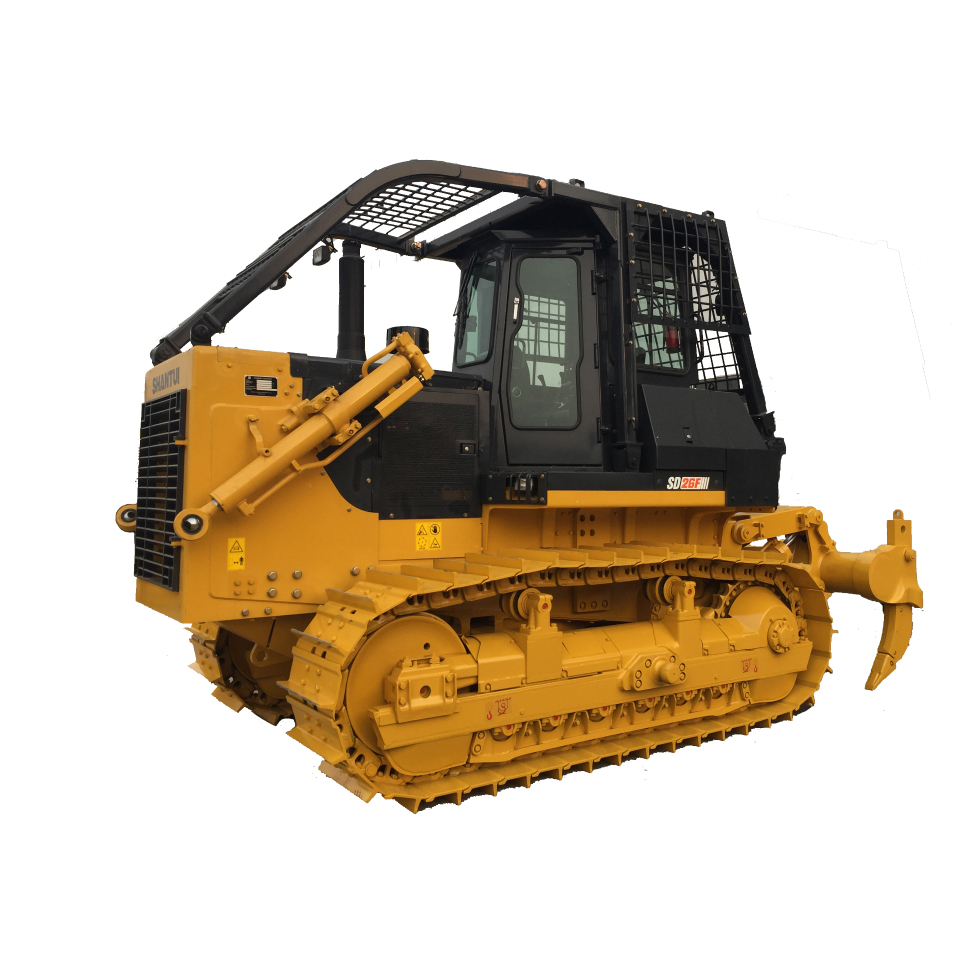

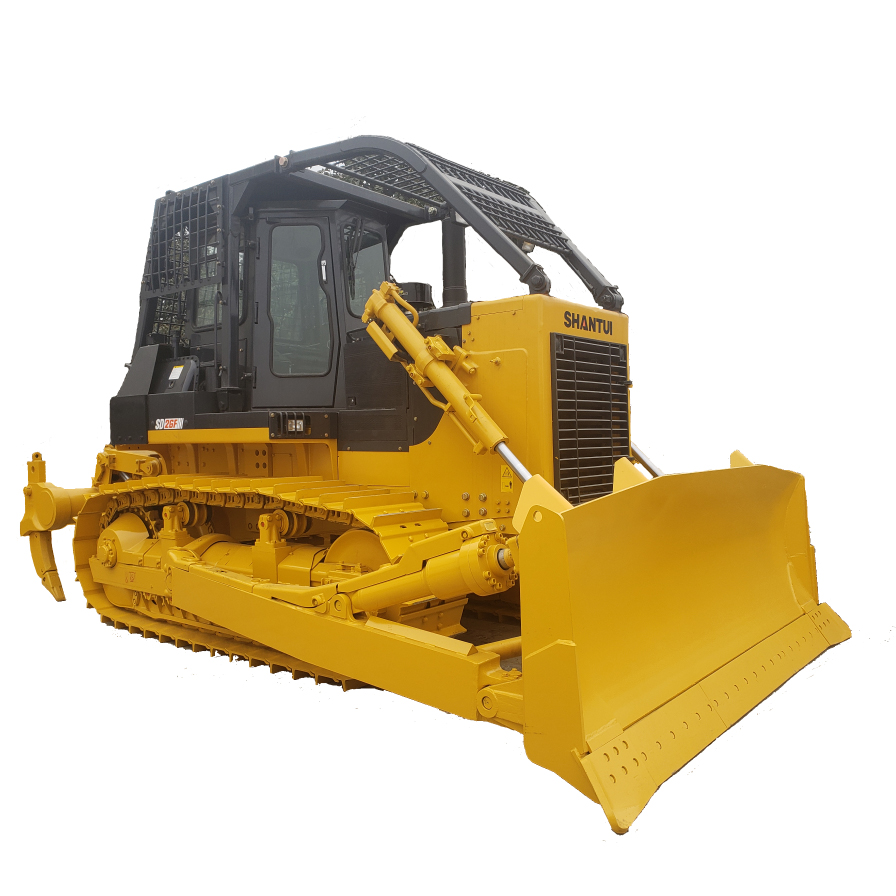

SD26F（FOREST LOGGING) |
SD26S(LGP) |
|
Performance parameters |
|
|
|
|
|
Operating weight (Kg) |
23400 |
24600 |
24700 |
25700 |
|
Ground pressure (kPa) |
77 |
72 |
66 |
41 |
|
Engine |
|
|
|
|
|
Engine model |
WEICHAI WP12 |
WEICHAI WP12 |
WEICHAI WP12 |
WEICHAI WP12 |
|
Rated power/rated speed (kW/rpm) |
206/1800 |
206/1800 |
206/1800 |
206/1800 |
|
Overall dimensions |
|
|
|
|
|
Overall dimensions of machine (mm) |
5495*3725*3402 |
5495*3725*3402 |
5495*3725*3402 |
6225*4365*3402 |
|
Driving performance |
|
|
|
|
|
Forward speed (km/h) |
F1: 0-3.8 F2:0-6.8 F3:0-11.7 |
F1: 0-3.8 F2:0-6.8 F3:0-11.7 |
F1: 0-3.8 F2:0-6.8 F3:0-11.7 |
F1: 0-3.8 F2:0-6.8 F3:0-11.7 |
|
Reversing speed (km/h) |
R1:0-4.5 R2:0-8.1 R3:0-13.9 |
R1:0-4.5 R2:0-8.1 R3:0-13.9 |
R1:0-4.5 R2:0-8.1 R3:0-13.9 |
R1:0-4.5 R2:0-8.1 R3:0-13.9 |
|
Chassis System |
|
|
|
|
|
Center distance of track (mm) |
2000 |
2000 |
2000 |
2250 |
|
Width of track shoes (mm) |
560 |
560 |
560 |
910 |
|
Ground length（mm） |
2730 |
3050 |
2730 |
3480 |
|
Tank capacity |
|
|
|
|
|
Fuel tank (L) |
450 |
450 |
450 |
450 |
|
Working device |
|
|
|
|
|
Blade type |
Straight-tilt |
Straight-tilt |
Straight-tilt |
Straight-tilt |
|

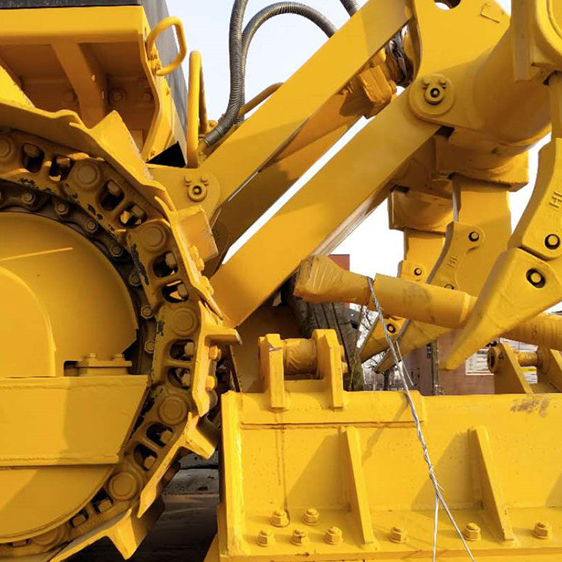

Ripper type |
Single shank/3 shanks |
Single shank/3 shanks |
Single shank/3 shanks |
—— |
|
Ripping depth (mm) |
695/666 |
695/666 |
695/666 |
—— |
