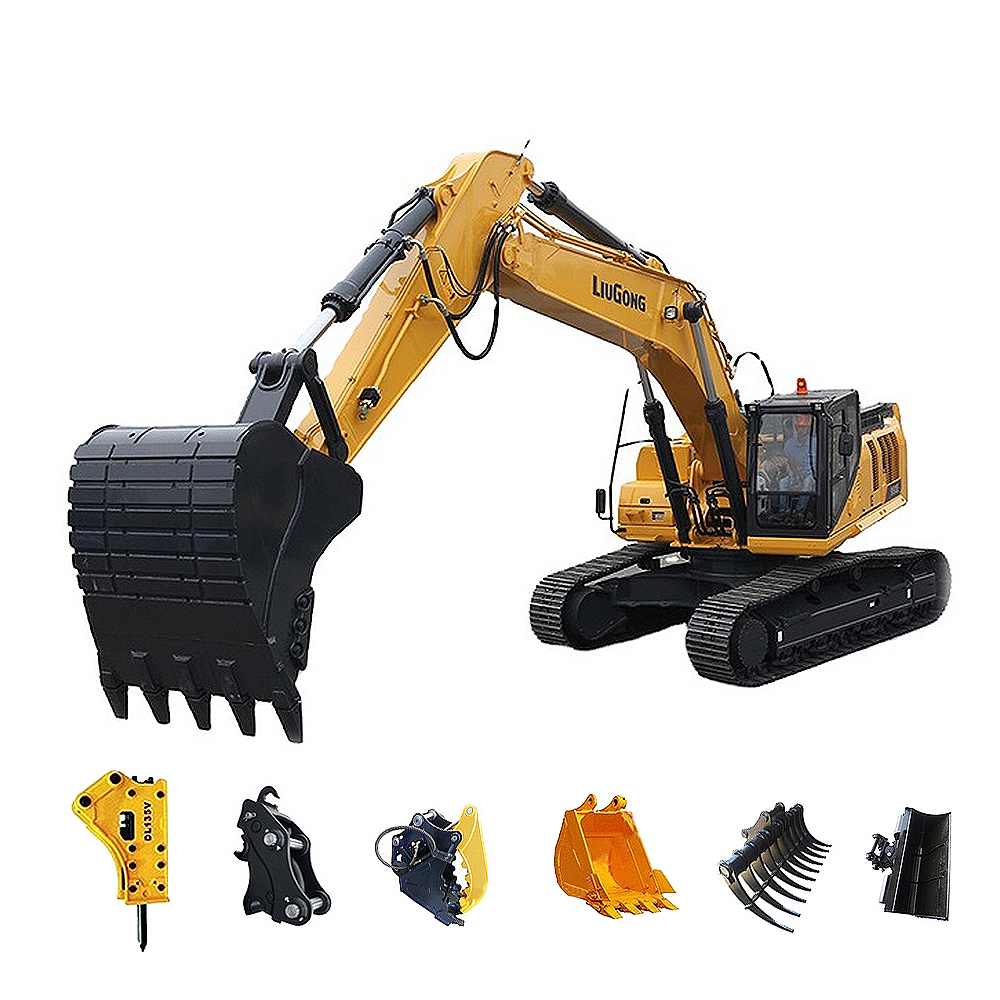

Liugong 48 ton China New Hydraulic Crawler Excavators Digger machine For Mining 950E
♠ New Appearance Design.
♠ Articulated frame with front wheel steering, small turning radius and flexible maneuverability.
♠ Electro-hydraulic control power shift gearbox, 6 gears forward and 3 gears backward.
♠ Internationalized hydraulic fittings, reliable operation.
♠ The action of spade is controlled by full hydraulic pressure.
♠ The rear axle is a three-stage drive axle equipped with NO-SPIN self-locking differential.
♠ The control platform and seat can be adjusted, the control handle and instrument are arranged reasonably, the use is convenient, and the driving comfort is improved.
♠ The cab is luxurious and beautiful, with wide vision and good sealing.
♠ It can be equipped with front bulldozer, back looser, front looser rake and automatic leveling device.














Operating Weight | 46,500kg |
Bucket Capacity | 3.2m³ |
Engine | QSM11 |
Gross Power | 375 hp @ 2,100 rpm |
Net Power | 349 hp @ 2,100 rpm |
Peak Torque | 1,898 N•m @ 1,400 rpm |
Travel Speed | High:5.5km/h |
Low:3.3km/h | |
Drawbar Pull | 386kN |
Swing Speed | 8.5rpm |
Arm Breakout Force, max, ISO | 255(270)kN |
Bucket Breakout Force, max, ISO | 265(280)kN |
Maximum Dig Depth | 6,521mm |
Reach at Ground Level | 10,388mm |
Depth of 8’Level Bottom | 6,337mm |
Maximum Dig Height | 9,977mm |
Dump Height | 7,038mm |
Maximum Dig Depth of Vertical Wall | 5,204mm |

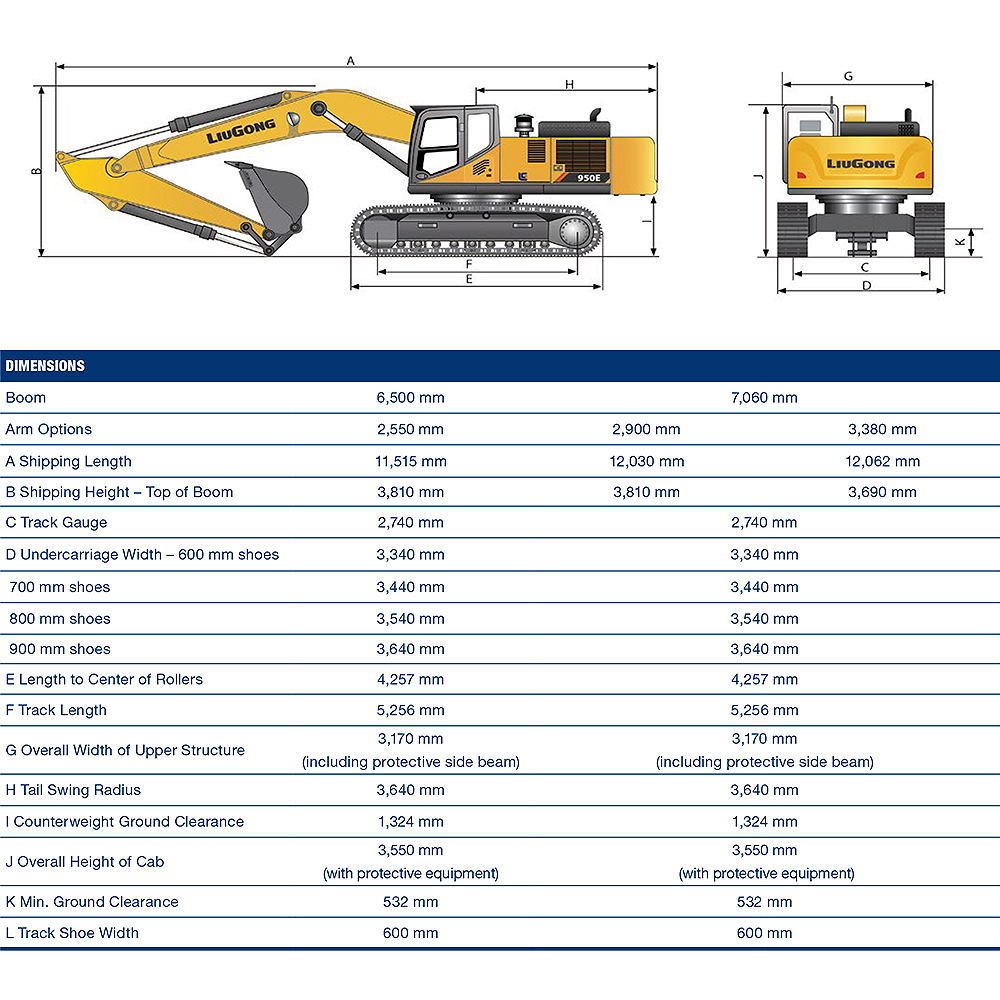

Overall Lenth | 11,515mm |
Overall Width | 3,340mm |
Overall Height | 3,810mm |
