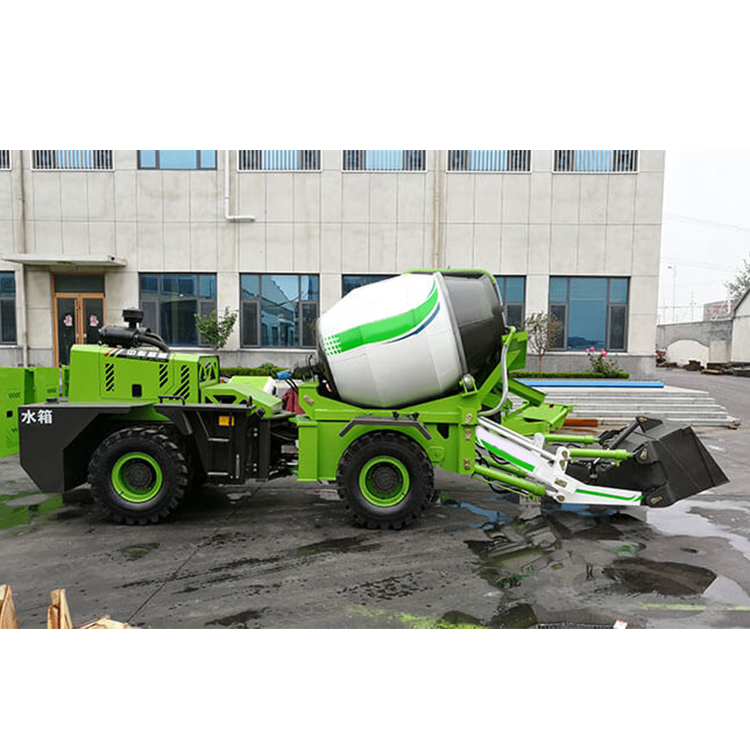

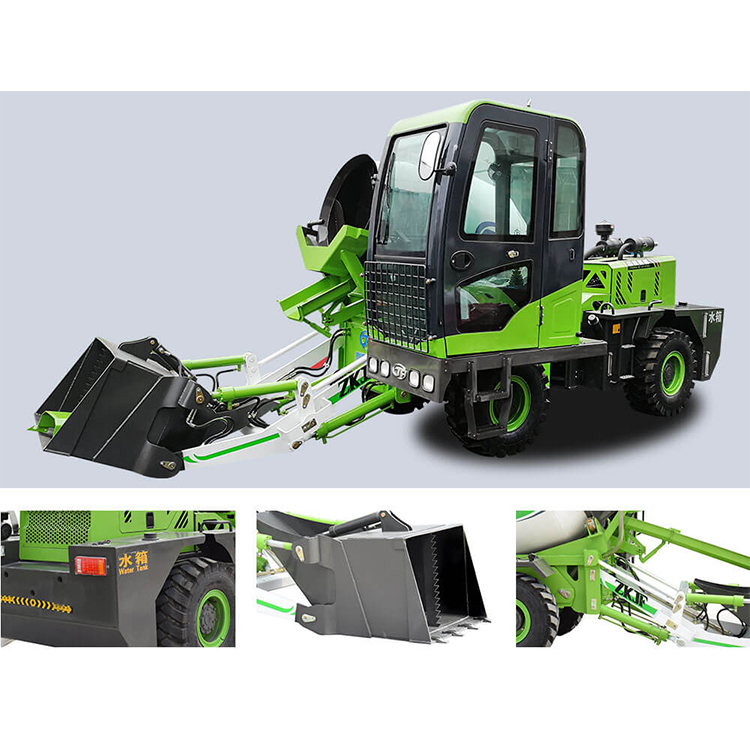

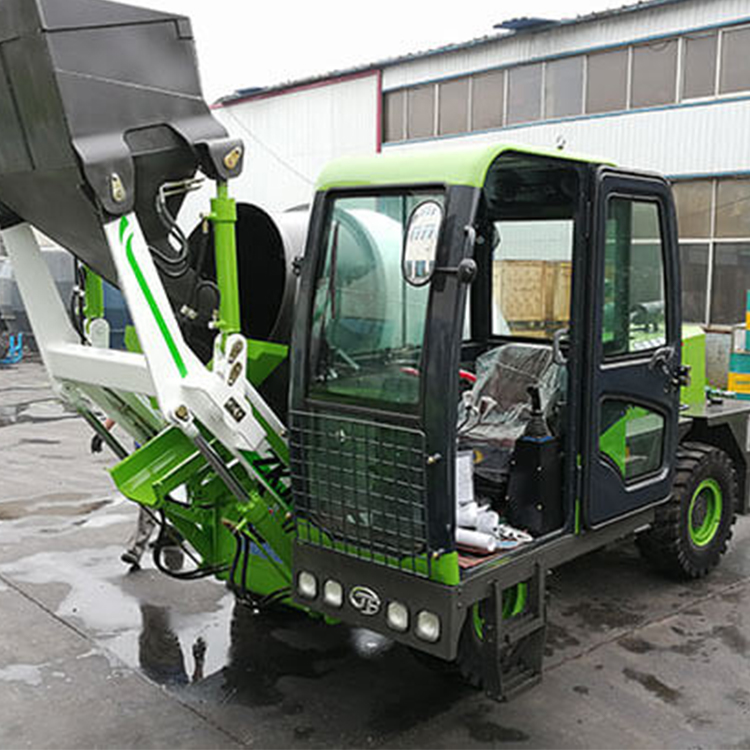

CNCMC 1.2m3 hot sale CSM-12 Small Self-loading Concrete Mixer Truck For Sale

Introduction:

The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer’s houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

Inquiry

Product Detail

Product Tags

Features

1.CSM-12 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture.

2.Cab and mixer drum can be integrated. Rolling drum can also be lifted up 20° to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.

3.It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.

4.Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.

5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.

Product details

Model	CSM-12	Discharge chute	2 Sets
Mixing Capacity	1.2 m³	Max. Travel Speed	25 km/h
Geometrical Capacity	1.8 m³	Grade ability	40°
Concrete Output	1.2 m³/batch, 4.8 m³/h	Min. Turning Radius	4750 mm
Drum Rotating Speed	13 rpm	Operating Weight	4500 kg
Model	YUNNEI YN27GBZ (Cummins Engine optional)	Max. Load	2900 kg
Type	In-line, 4-Cylinder, Turbo Charged and Water Cooled	Max. Gross Weight	7400 kg
Rated Power	55 KW (75HP) @ 2400 rpm	Overall Dimension (LWH)	*640025503750 mm*
Emission Standard	Euro II	Fuel Tank Volume	63 L
Loading Bucket Capacity	0.4m³	Total Hydraulic System Capacity	63 L
Loading Times to Full Drum	3 Times	Oil Tank Volume	16 L
