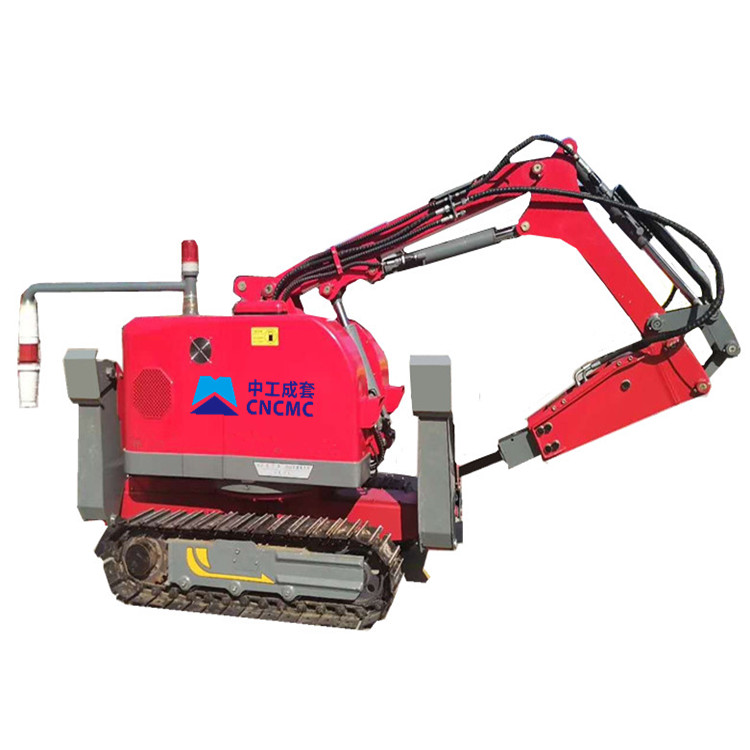

CNCMC PC800 Demolition Robot remote control track excavator breaker

Introduction:

The operator will have a comprehensive view of the work being undertaking as the machine is radio controlled thus providing a unique perspective. The operator is free to select the best location from which to supervise and progress the works at a safe distance

Inquiry

Product Detail

Product Tags

Specification

Basic performance
Hammer model	PC800
Work radius	8.5m
Grade ability	30°
Rotary speed/range	9rpm/360°
Max walking speed	3.5km/h
Outrigger	4, frog type
Noise level	105dB(A)
Weight	5500kg
Dimension(LxWxH)	6800mmx2250mmx2950 (mm)
Hydraulic system
Drive mode	Electron-hydraulic Proportional
Hydraulic pump Type	Load sensitive variable axial piston pump
Hydraulic valve type	Electron-hydraulic proportional valve
Hydraulic system capacity	200L
Max flow rate of hydraulic pump	140L/min
System pressure	25Mpa
Power system
Power option 1	Diesel engine 50Kw/2200rpm
Power option 2	Electric motor 45Kw(380/50Hz)
Start mode	Soft start
Control system
Operation	Portable remote controller
Signal mode	Digital
Control mode	Wired/wireless
Remote control distance	500m

Characteristic

Remote Control Demolition Robot is designed to remove large concrete structures in a very secure way, it can largely reduce the risks of falling rubble and debris, it is robust and powerful, and the machine is capable to break, crunch, clear, drill and scrabble any concrete structure.

Robotic demolition brings incredible benefits: allowing access to areas not possible with traditional methods, such as cross a single doorway, staircases, carried by elevator, safety for HAVS, high altitude demolition, cleaning of cement plant kiln, cleaning of steel smelting furnace, cleaning of radioactive cement for nuclear power plant, etc.

Main Features

1. Small size, light weight, suitable for indoor, roof, tunnel underground and other narrow spaces.

2. Two Power modes, diesel type insures long working hours, Electric type effectively cut noise.

3. Select high-definition wireless image transmission system to realize remote control.

4. The operation interface is intuitive and easy to operate.

5. Wireless remote control operation mode to keep operators away from dangerous sites.

6. Four legs support, low center of gravity, strong stability, and can work on uneven high slope surface. Cost-effective, safety, labor-saving.

8. Three-arm structure, 360° rotation, wide operating range.
