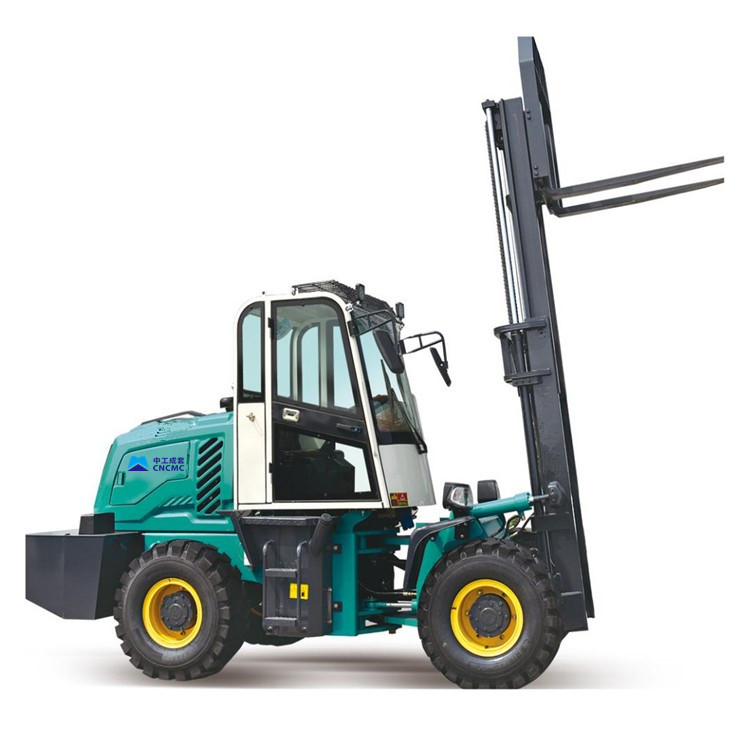

CNCMC High-power Military Terrain Forklift CNRF35
Rough terrain forklift has four-wheel drive which greatly increases the power of the forklift, it is a kind of safe and high efficiency construction machine used for loading, unloading and stacking materials on muddy fields, farms, mountain areas and other uneven grounds. It has good off-road capability, traffic ability and maneuverability.
1.Beautiful appearance, compact structure, small turning radius, light and flexible operation,can work in a narrow space, full hydraulic power steering, steering wheel and seat can adjust the angle and relative position before and after, to meet the individual requirements of the driver.
2. The setting of various joysticks in accordance with ergonomic requirements, optimize the design to reduce labor intensity and increase production efficiency.
3.Wide-view gantry, the driver has a wide perspective, so this forklift is very suitable for cargo handling, stacking and short-distance transportation in the wild and outdoor.
| Rated Load(kg) | 3500 |
| Max.unloading Height(mm) | 3000 |
| Overall Weight（kg） | 5500 |
| Max.Grade Ability | 16°≤30° |
| Drive mode | Four-wheel drive |
| Wheel tires | Pneumatic tire |
| Ground Clearance（mm) | 28 |
| Wheelbase（mm） | 1600 |
| Min.Turning Radius(mm) | 3200 |
| Engine power（kw） | 36.8KW |
| Dimensions（mm） | 3350*1620*2300 |
| Rated Load(kg) | 3500 |
| Max.unloading Height(mm) | 3000-4500 |
