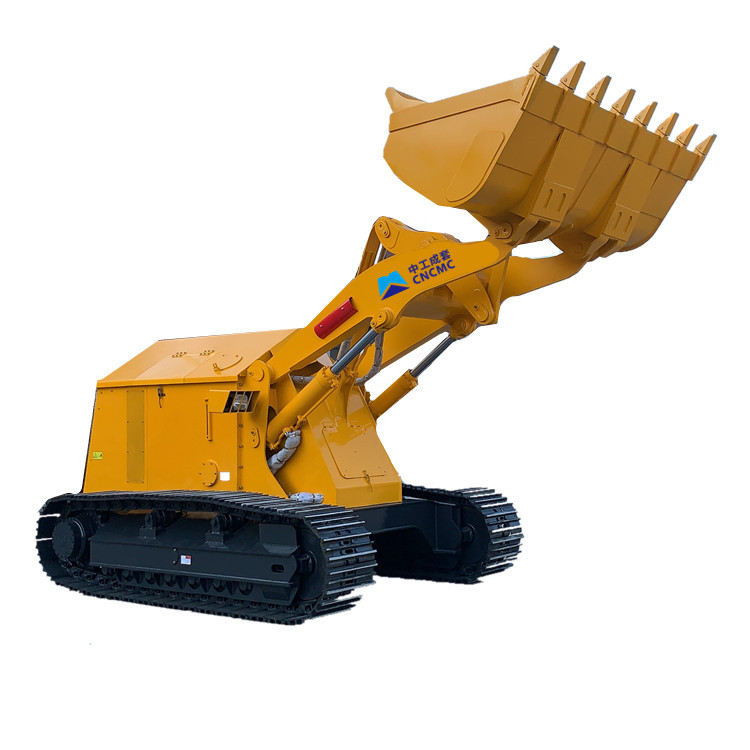

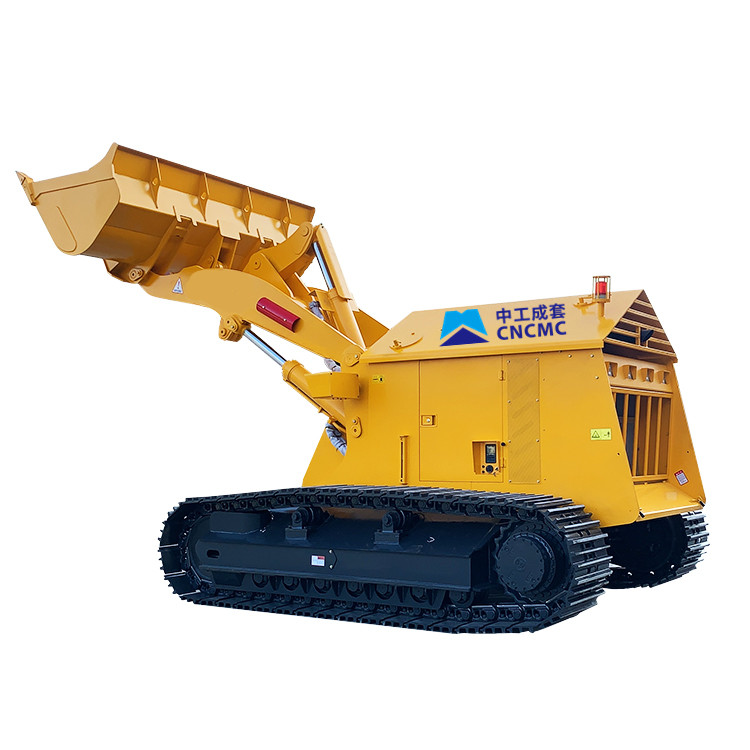

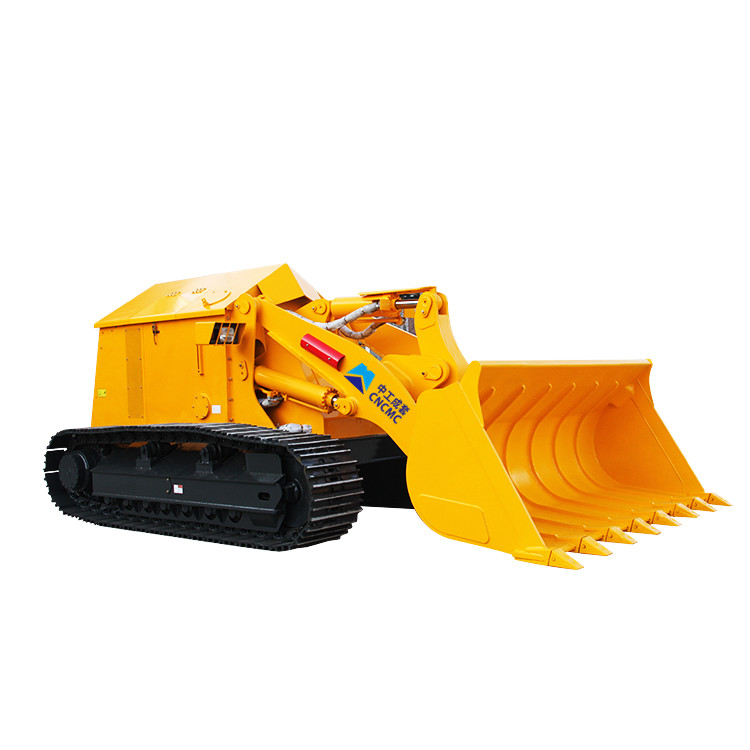

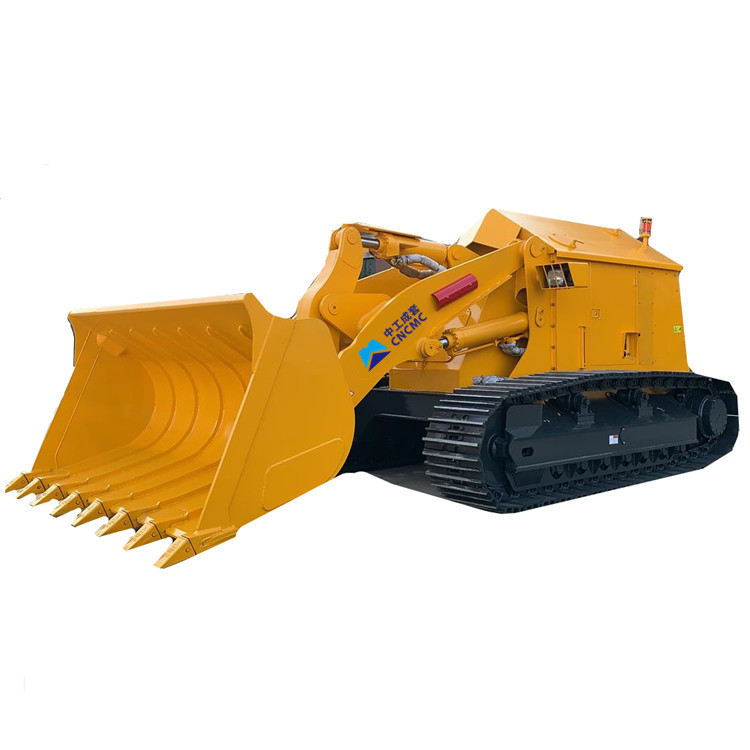

CNR955 Remote Control Crawler Loader
CNR955 remote control crawler loader is specially designed and manufactured for metallurgy, mining, hazardous materials carrying, dangerous materials carrying and other related fields. It can be used for slag cleaning of furnace and ore loading in underground mine.
The loader has excellent performance and can work in the complicated environments, It has good high temperature resistance ability, excellent heat radiation resistance ability and dust resistance ability. Most important of all, the remote control loader is extremely safe and reliable for operator and can largely enhance the working efficiency.
Basic performance | |
Bucket capacity | 3.0m³ |
Max unloading height | 3150mm |
Grade ability | 30° |
Track gauge | 1960mm |
Track width | 500mm |
Walking speed | 3.4-6km/h |
Weight | 20000kg |
Dimension(LxWxH) | 7000*3000*2650mm |
Hydraulic system | |
Drive mode | Electron-hydraulic proportional |
Hydraulic pump | Load sensitive variable axial piston pump |
Hydraulic valve | Electron-hydraulic proportional valve |
Max flow rate of hydraulic pump | 309*2 L/min |
System pressure | 25Mpa |
Power system | |
Diesel engine | WP10G240E342 |
Rated power | 178KW/2100rpm |
Engine cylinder | Six cylinders |
Cooling mode | Water-cooling |
Control system | |
Operation | Portable remote controller |
Start voltage | 24V |
Remote control distance | 500m |
Signal mode | Digital |
Control mode | Wireless |
1. Equipped with Weichai engine to provide strong power. High horsepower hydraulic transmission, hydraulic control, reasonable structure, excellent performance, easy to operate, reliable and high efficiency.
2.Equipped with strengthened bucket for steel slag bucket. The use of high quality wear-resistant and high temperature resistant steel further improves reliability and prolongs the service life of the bucket.

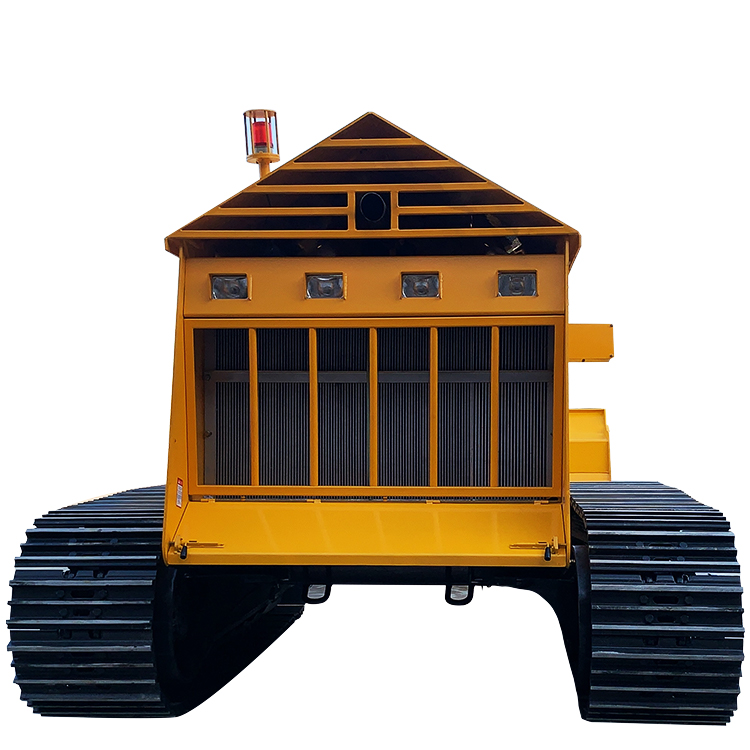

3.Equipped with inclined downward front grille air outlet, which reduces the heat radiation to the engine, prevents the radiator from being blocked by steel slag or liquid and increases the reliability of the cooling system.
4.Equipped with protective nets on both sides of the engine, can effectively prevent the steel slag or liquid from entering the engine.
5.Equipped with optimized air intake system improves the intake quality, reduces the early wear of the engine and prolongs the service life .
6.Equipped with track supporting roller, carrier roller, guiding roller which are all mounted with long life well sealed floating ring. All the rollers are protected bybimetallic sleeve, the "O" ring is made of high temperature resistant special rubber material.
7.Equipped with supporting roller which is made from the overall water spray quenching heat treatment process, which improves the thickness of wear-resistant layer, has super wear resistance ability and longthe service life.
8.Equipped with high temperature resistant oil cylinder hose and steel wire protective net to prevent heat and wear. A dust-proof oil seal is installed between the track joint and the track pin sleeve, greatly extending the service life.
9.Equipped with special section steel made track shoe, which has good wear resistance and high temperature resistance.
