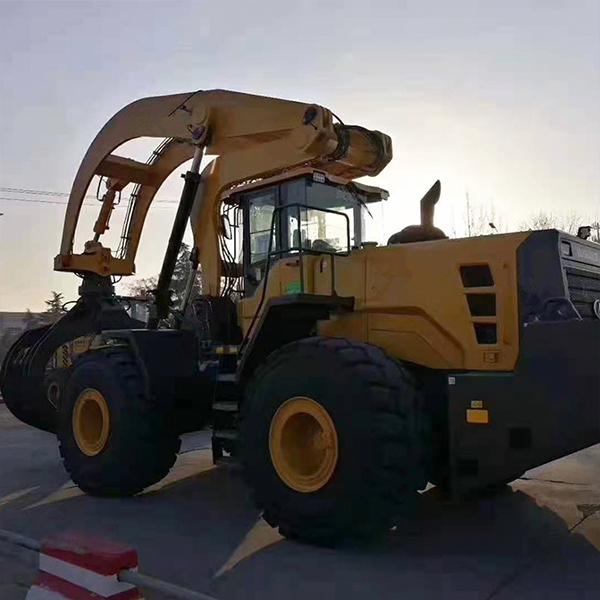

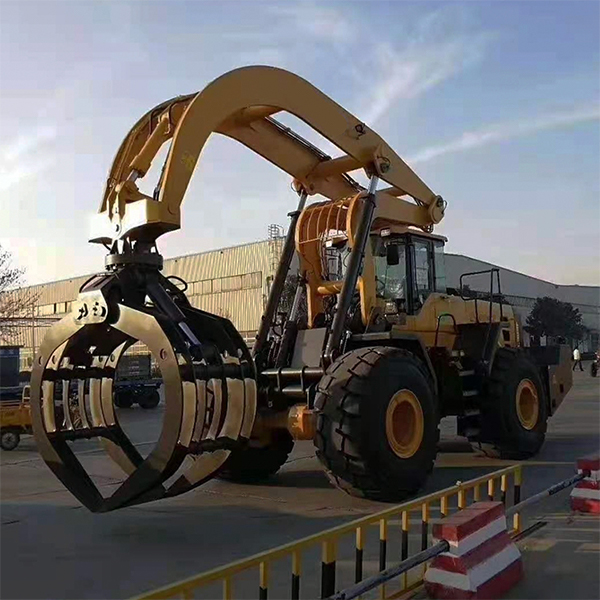

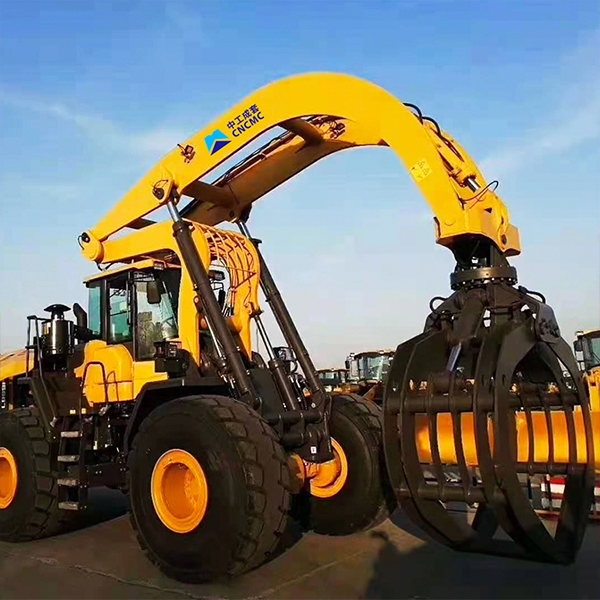

[Copy] CNCMC Quality High Lift 7Ton L980 Wheel Loader Handler
Comfortable to operate:
1. The cab has large internal space, wide field of vision, good sealing, good damping and low noise. The manual mode using small ball control handle, easy and fast operation.
2. Automatic mode: one key switch, more simple, comfortable and efficient operation.
3. Stepping color instrument panel, display is intuitive, clear, eye-catching
Reliable quality:
1. Equipped with 8t transmission, high bearing capacity.
2. Equipped with heavy load box frame, long service life.
3. Standard oil bath air filter, the second filter in the hood is 93%, and the filtration effect on particles and dust is more than 95%; It is more suitable for the bad dust condition of mine; The early wear of the engine is basically eliminated.
4. Double circuit full hydraulic brake, if one brake failure, the other also works, safe and reliable.
Easy maintenance:
1. Standard centralized lubrication system, realize timing, fixed-point, quantitative lubrication, realize intelligent maintenance. Automatic lubrication of starting machine; 2. Manual lubrication can set lubrication time, cycle times, etc.
Diesel filter, mechanical filter, air filter and torque converter oil filter are arranged in a centralized way, which is convenient for maintenance.
Overall dimensions(L*W*H) | 9700×3320×5300 mm |
Wheelbase | 3550mm |
Max height of fork tip | 6100mm |
Max unloading height | 5800mm |
Max lifting height | 9200mm |
Max downward extension | 1490mm |
Maximum opening width of grab | 3500mm |
Track width | 2350mm |
Steering angle | 38° |
Min turning radius | 6365mm |
Clamping area | 2.5m3 |
Working weight | 35000kg |
Max traction | 226KN |
Engine | WP10G270E341 |
Power | 199kw/2200 r/min |
Displacement | 9.726L |
Gear | 4F(0~36.5km/h)/4R(0~36.5km/h) |
Max torque / speed | 1300N.m/1400r/min |
Min fuel consumption | ≤215 g/(kW.h) |
Boom lifting time | 9s |
Brake type | Full hydraulic dry braking |
Steering system | Load sensing |
Hydraulic system | Hydraulic pilot control |
Refueling capacity | 380L |
Hydraulic oil | 230L |
