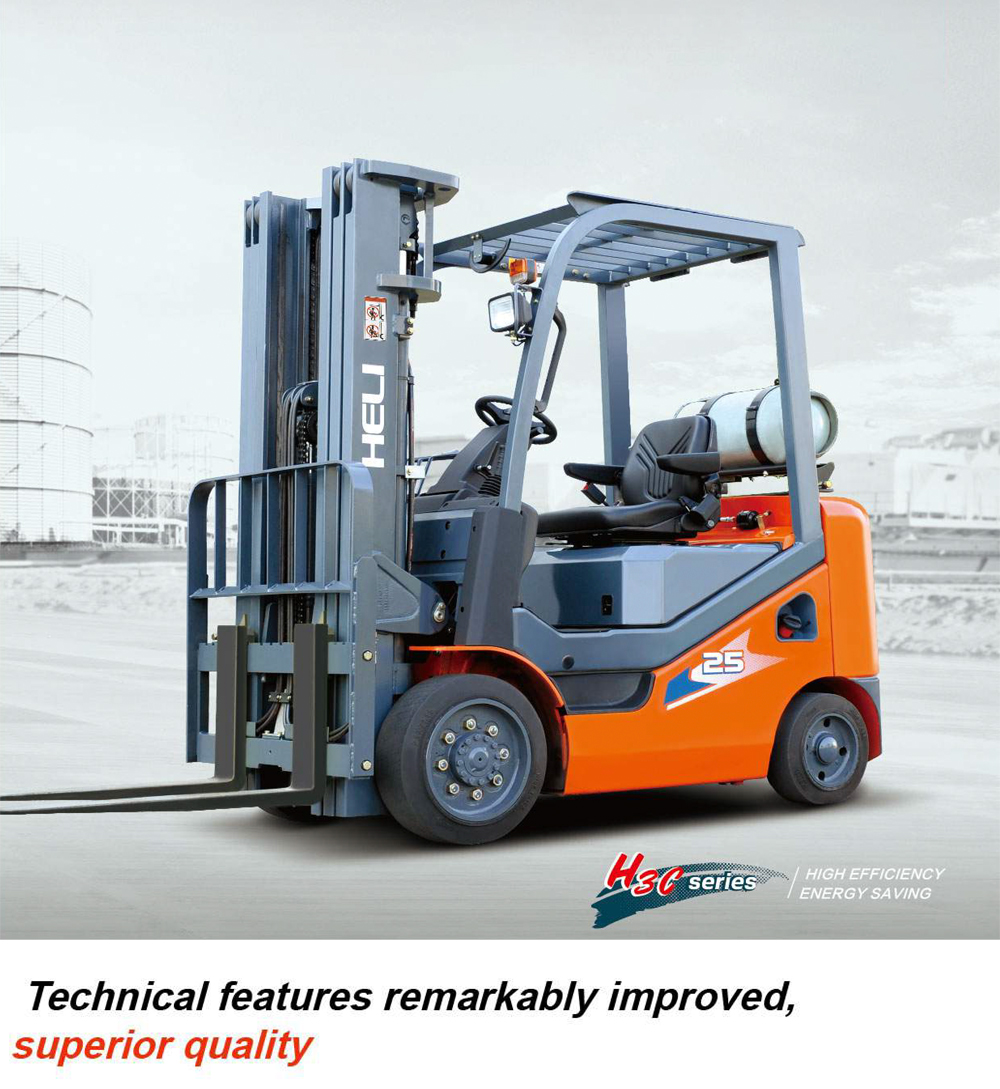

Heli CPYD20-32C 2-3 2t Engine Forklift-seriesH3C Series gasoline _ LPGCounterbalanced cushion Forklift Trucks

Ergonomics Improved
Vibration is reduced with suspended cab ( overhead guard )
Noise around ears is reduced by the fully closed meter gantry and floor which could segregate the chassis noise.

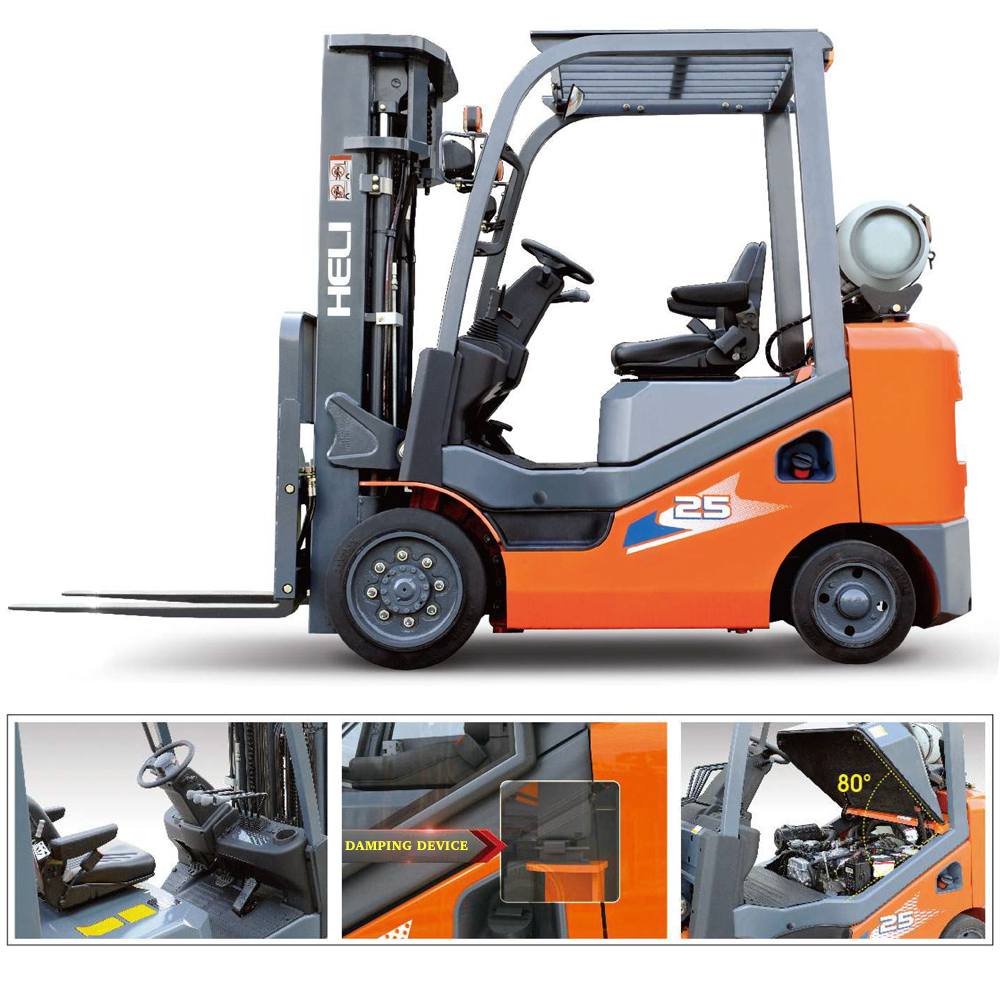

Lower damping device inside the lifting system reduces mast shock and vibration improving the whole trucks safety and reliability.
Space around foot is effectively increased through lifting up steering unit and using suspension type inching.
The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guards front leg.
Small diameter steering automobile type reversing lever and steering light switch fixed up like the car are easily to operate.
Half enclosed seat with ergonomic design is standard to improve back comfort and protect the waist as well.
Reliability Improved
The hot air reflow isolating device , optimal thermal dissipation duct and aluminum plate-fin type radiator improve cooling ability and ensure engine work reliably .
The optimal key parts such as frame , mast , overhead guard and steering axle improve the whole truck s safety and reliability .
Maintainability
The needing to disassembly the front floor when doing the transmission box maintenance because of the floor is smaller .
It is easily for checking and maintenance with enlarged engine hood opening angle .
Good fuel-economy and good fuel-economy
Optimal hydraulic system could decrease the overall fuel consumption obviously.
The cap with pressure could stop the fuel from volatilizing , decrease the overall fuel consumption and improve the safety .
The emissions meet the latest requirements of EPA , CARB

Applications : as lifting and transporting machineries , H3C Series 2-3 2t Gasoline /' G Counterbalanced Cushion Forklift Trucks are widely used for loading , unloading and transporting the packaged goods in factories , warehouses , stations , wharves ports and so on . With other attachments of fork lift trucks , they can be used for the handling of the bulk goods and unpackaged goods
