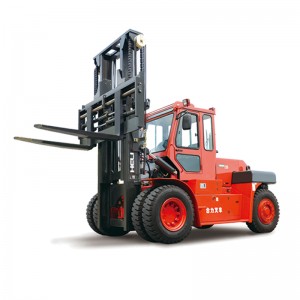

Heli 20-32t Heavy Forklift-seriesG2 series internal combustion counterbalanced forklift
1 . The wide held of view , high-strength lifting system provides the operator with a spacious front view .
2 . The wide-view cab is equipped with an electric tilting system , which is convenient for daily maintenance and spot inspection.
3 . Tumble the hood at a large angle , and open the hood safely and conveniently through a self-locking gas spring.
4 . Variable hydraulic system with full hydraulic priority steering , energy saving and noise reduction.
5 . The separate structural design of the hydraulic brake oil tank ensures the cleanliness of the oil and reduces the failure rate of the hydraulic system.
6 . LED high brightness , low energy consumption lighting and signal system provide better lighting environment and daytime safety instructions for night work.
7 . The operator has the application of the induction system . When the operator leaves the seat , the truck will automatically disconnect the power Without walking.
8 . Short wheelbase body , small turning radius , flexible operation.







Model |
Unit |
CP CD 200-vz1-12IlIg2 |
CP CD 250-vz1-12IlIg2 |
CP CD 200-vz1-12Ivg2 |
CP CD 250-vz1-12Ivg2 |
CP CD 280-vz1-12Illg2 |
CP CD 300-vz1-12Illg2 |
CP CD 320-vz1-12Illg2 |
|
Load center |
mm |
1200 |
1200 |
1200 |
1200 |
1200 |
1200 |
1200 |
|
Load capacity |
kg |
20000 |
25000 |
20000 |
250000 |
28000 |
30000 |
32000 |
|
Lifting height(standard) |
mm |
4000 |
4000 |
4000 |
4000 |
4000 |
4000 |
4000 |
|
Lifting speed(load) |
mm/s |
270 |
270 |
270 |
270 |
250 |
250 |
250 |
|
Mast tilt angle F/R |
Grad |
6/10 |
6/10 |
6/10 |
6/10 |
6/10 |
6/10 |
6/10 |
|
Engine |
volvo |
volvo |
volvo |
volvo |
volvo |
volvo |
volvo |
||
Overall dimensions |
Overall Length(with fork) |
mm |
8742 |
8742 |
8742 |
8742 |
9200 |
9200 |
9200 |
Overall Width |
mm |
3040 |
3040 |
3040 |
3040 |
3460 |
3460 |
3460 |
|
Height with mast lowered |
mm |
3995 |
3995 |
3995 |
3995 |
4120 |
4120 |
4120 |
