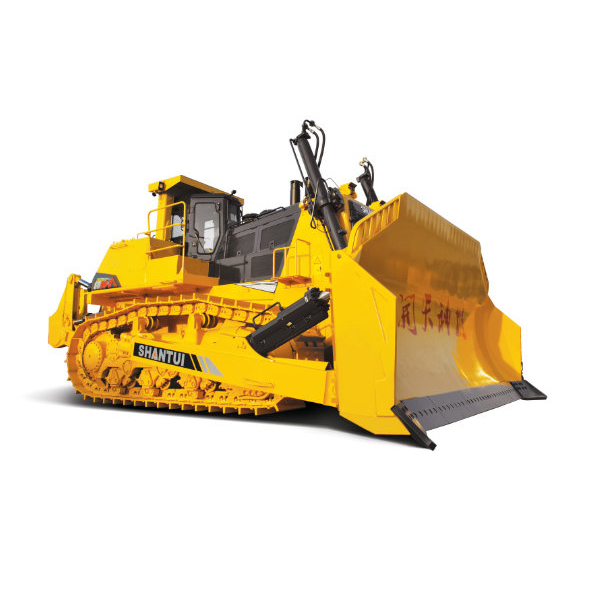

SHANTUI 90ton 900hp bulldozer SD90-C5
Driving/Riding Environment
● The ergonomic cab features large space and excellent vision.
● The cab is integrally sealed to effectively isolate the noise and lower the driver’s parotic noise to 80dB, which meets the EU regulation.
● The high-power A/C and heating system features excellent cooling and heating performances and the arrangement of A/C air vents is better humanized to achieve better driving/riding comfort.
● The upholstery adopts rapid formed parts (ABS+PVC vacuum formed parts on the top), featuring high grade and environmental-friendliness and good driving/riding experience
Working adaptability
● The heavy-duty chassis is matched to adapt to more severe working condition and achieve longer life.
● Featuring long ground length, high ground clearance, stable driving, and good trafficability, it can be installed with semi-U blade and U-blade.
● The track rollers adopt type K elastic suspension to achieve higher ground area of tracks and realize higher traction force and more stable working on uneven roads.
● The standard high-illumination LED working lamps improve the illumination capability during nighttime operations to achieve higher operating safety and reliability
Easy maintenances
● The wraparound safety passage design guarantees higher maintenance safety and convenience.
● The machine adopts modular design, featuring easy assembling and disassembling and easy maintenances.
● The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
● The core electric and hydraulic parts are globally procured to ensure high reliability





Parameter name | SD90-C5 RS (Rock version) |
Performance parameters | |
Operating weight (Kg) | 106260 |
Ground pressure (kPa) | 143.7 |
Engine | |
Engine model | QST30 |
Rated power/rated speed (kW/rpm) | 708/2100 |
Overall dimensions | |
Overall dimensions of machine (mm) | 11500*5265*4590 |
Driving performance | |
Forward speed (km/h) | F1:0-3.5 F2:0-6.3 F3:0-10.9 |
Reversing speed (km/h) | F1:0-4.7 F2:0-8.4 F3:0-14.3 |
Chassis System | |
Center distance of track (mm) | 2770 |
Width of track shoes (mm) | 710 |
Ground length(mm) | 4520 |
Tank capacity | |
Fuel tank (L) | 1638 |
Working device | |
Blade type | Semi-U blade |
Digging depth (mm) | 1010 |
Ripper type | Single-shank |
Ripping depth (mm) | 1670 |
