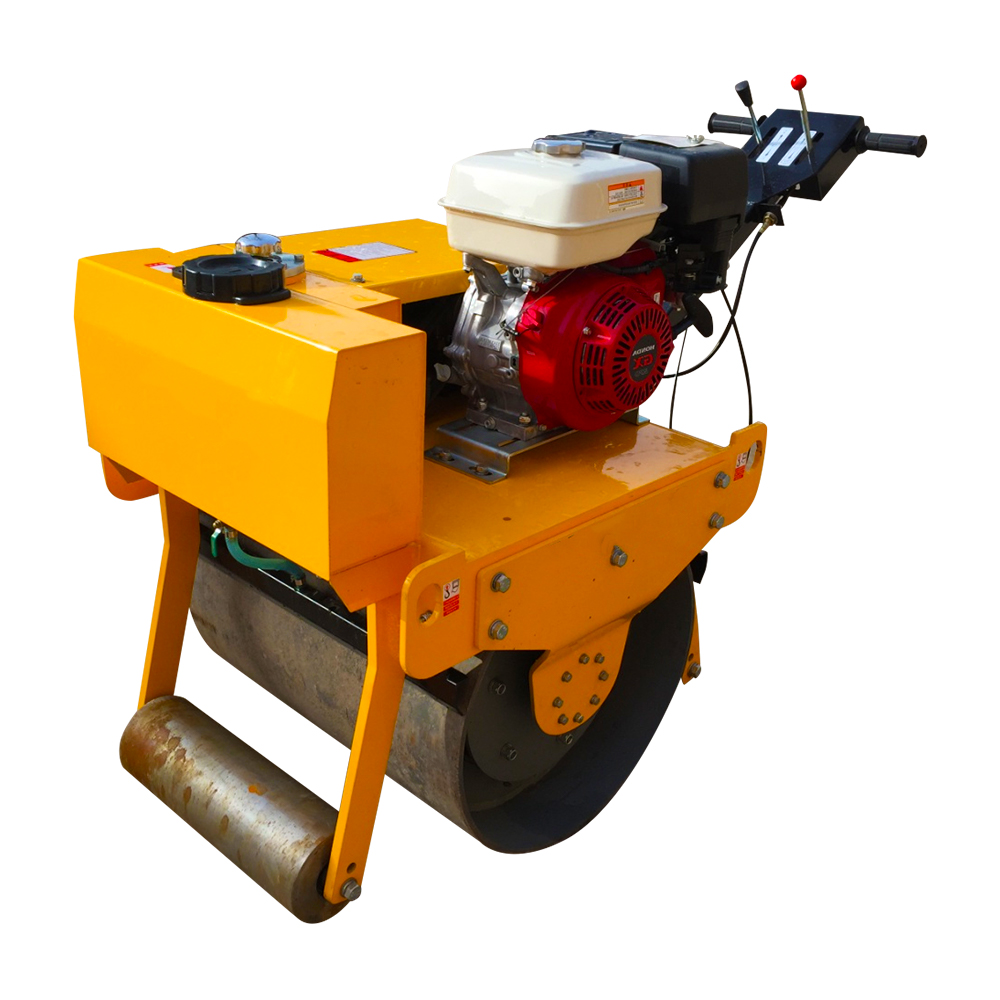

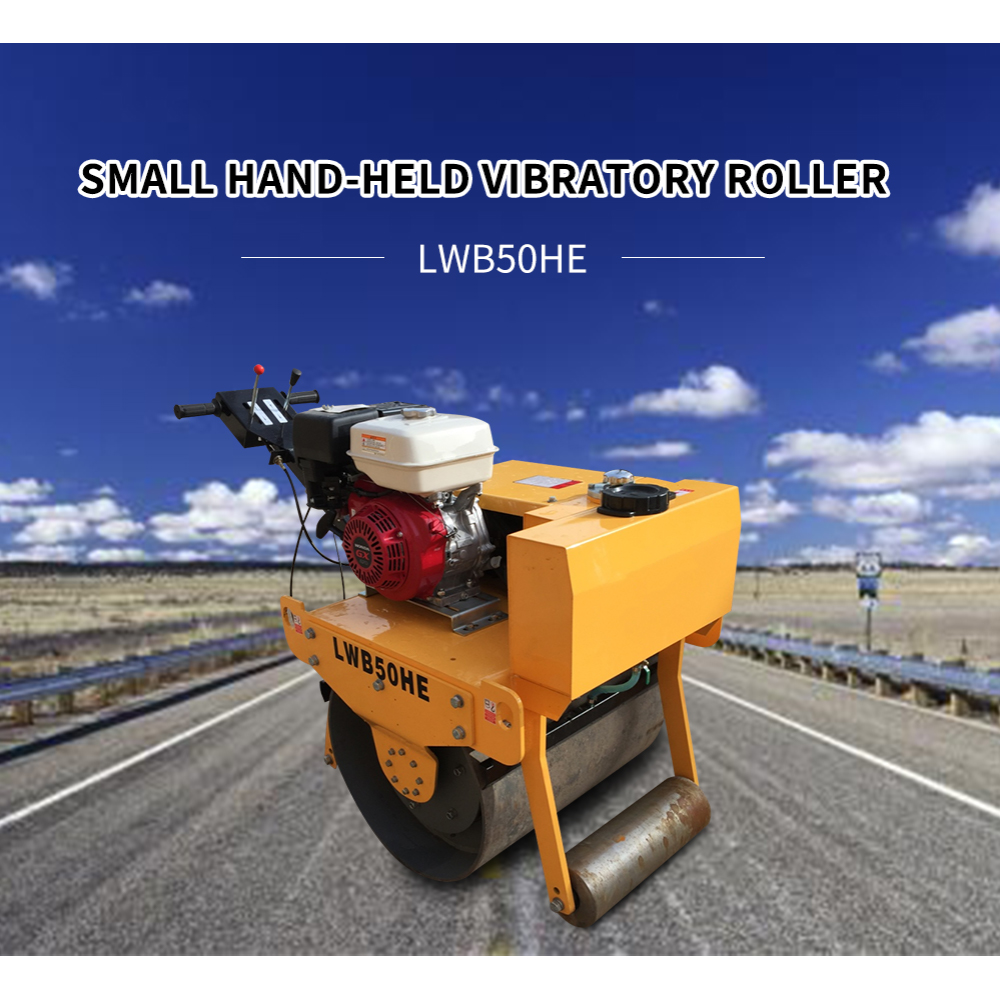

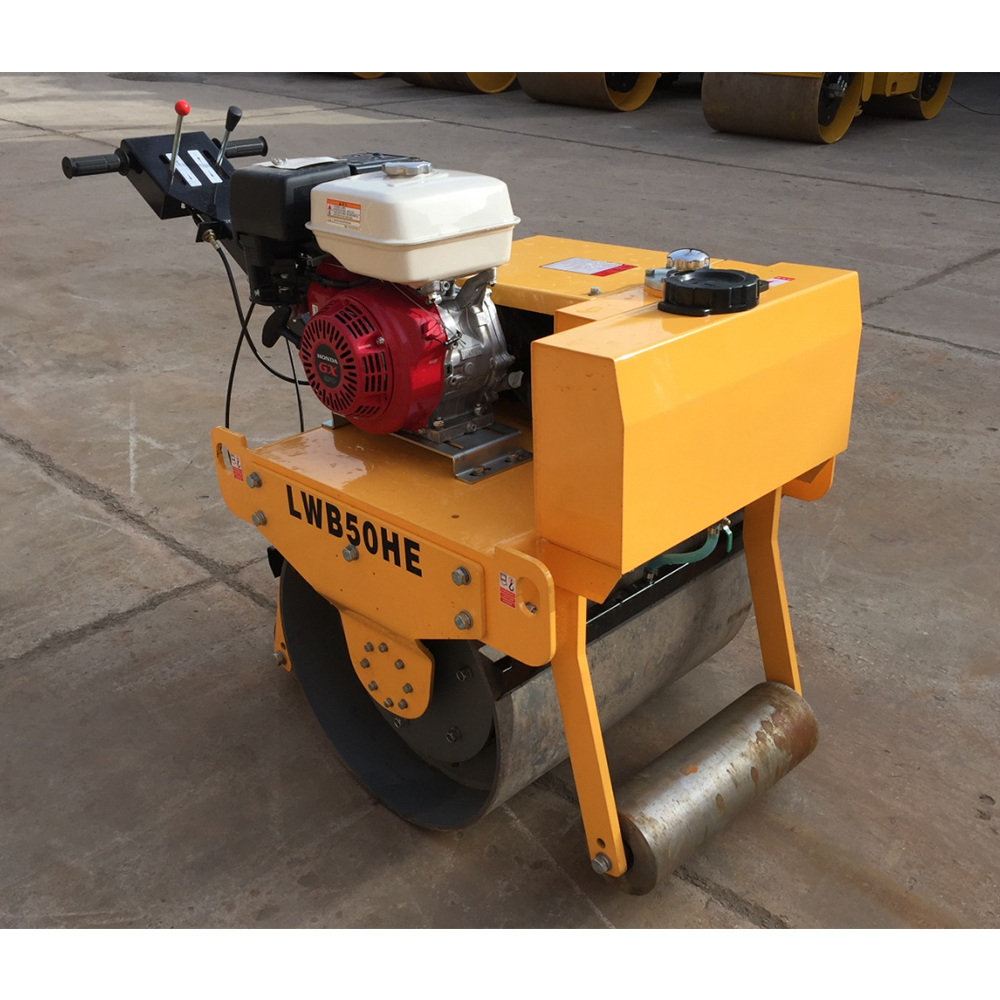

SINOMACH 0.5ton Mini vibratory road rollers for sale LWB50HE

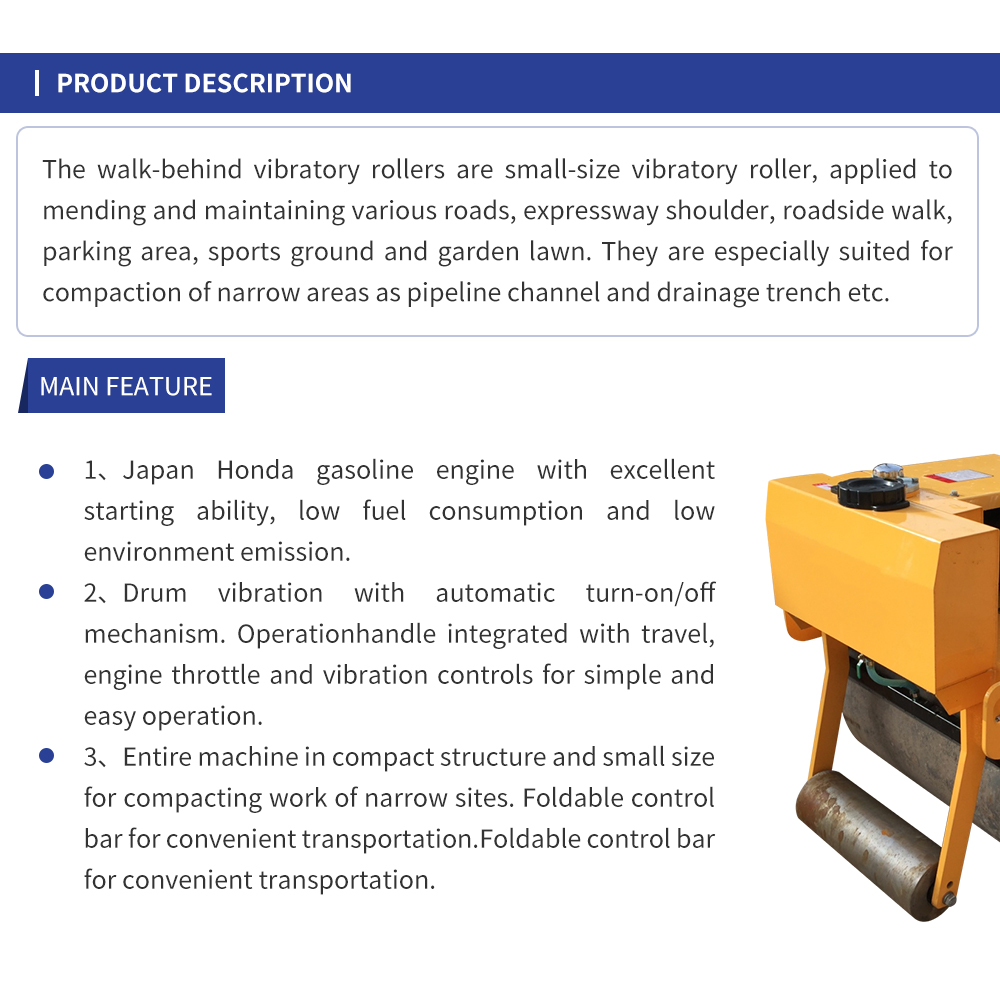

Introduction:

The walk-behind vibratory rollers are small-size vibratory roller, applied to mending and maintaining various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.

Inquiry

Product Detail

Product Tags

Video

Main features

Japan Honda gasoline engine with excellent starting ability, low fuel consumption and low environment emission.

Drum vibration with automatic turn-on/off mechanism. Operationhandle integrated with travel, engine throttle and vibration controls for simple and easy operation.

Entire machine in compact structure and small size for compacting work of narrow sites. Foldable control bar for convenient transportation.Foldable control bar for convenient transportation.

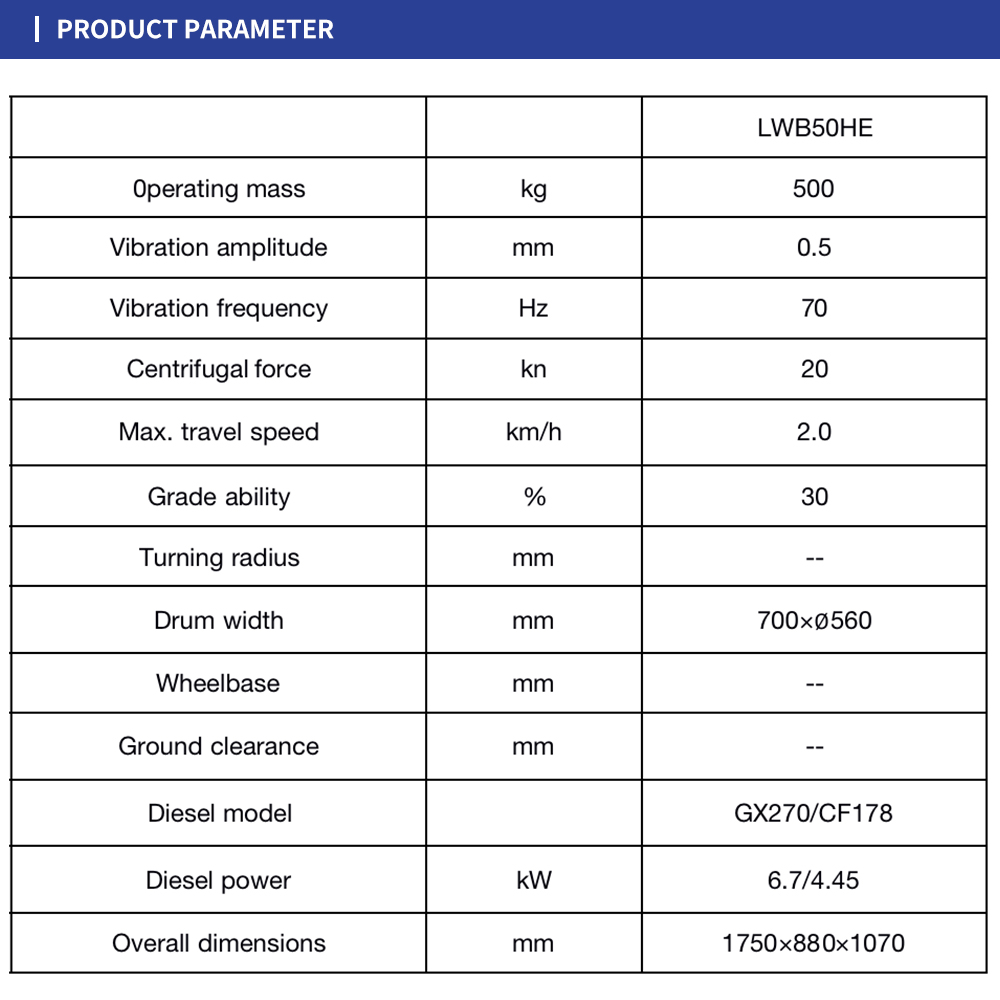

Parameter

Model		LWB50HE
Operating mass	kg	500
Vibration amplitude	mm	0.5
Vibration frequency	hz	70
Centrifugal force	kn	20
Max. travel speed	km/h	2
Grade ability	%	30
Turning radius	mm	--
Drum width	mm	700*Ø560
Wheelbase	mm	--
Ground clearance	mm	--
Diesel model		GX270/CF178
Diesel power	kw	6.7/4.45
Over dimensions	mm	17508801070
