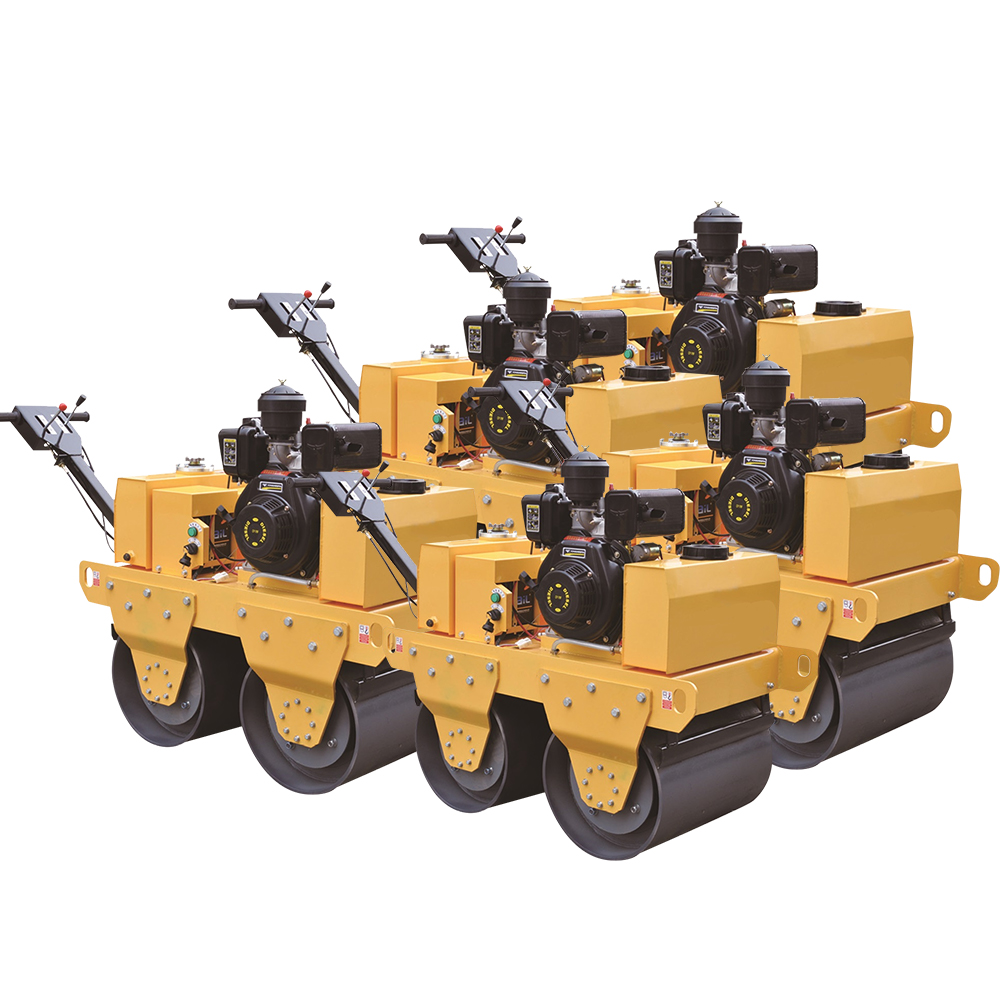

SINOMACH 0.6ton China Suppliers Mini double drum driving vibratory Hydraulic Walk Behind Vibratory Rollers GYW602

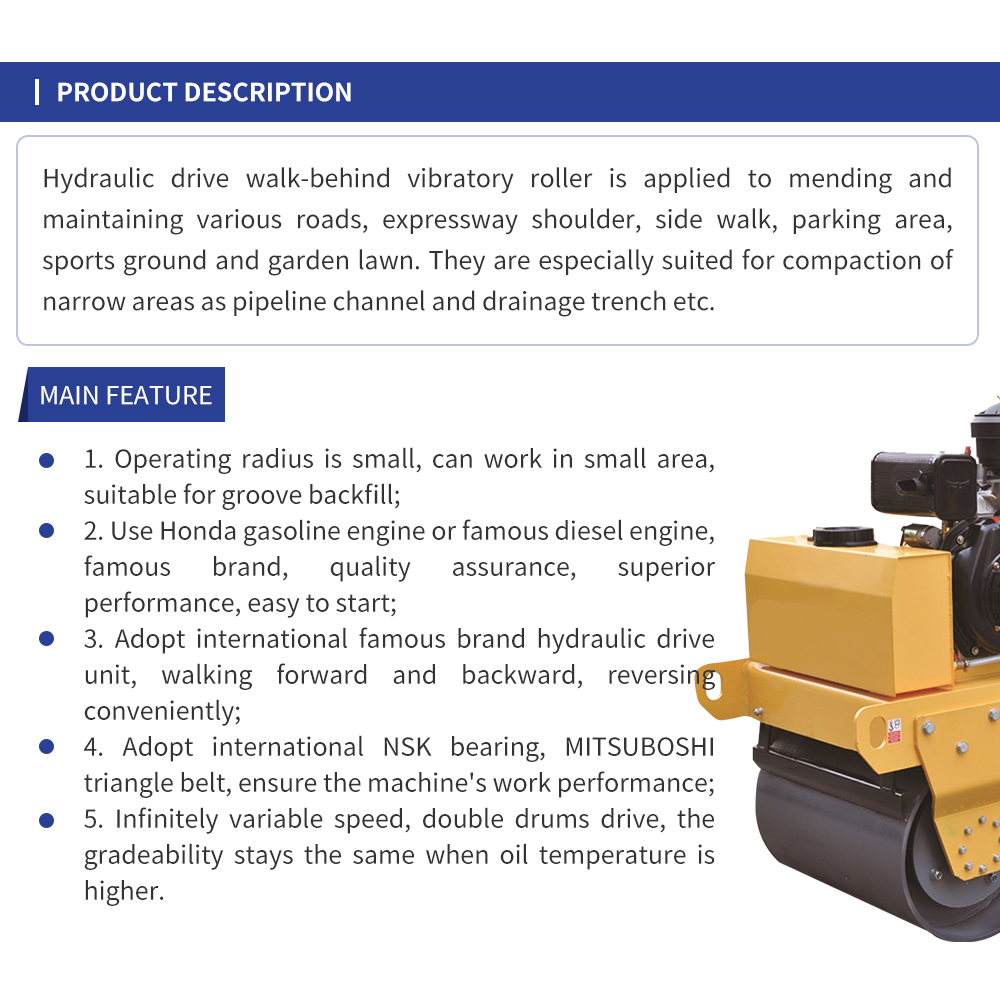

1. Operating radius is small, can work in small area, suitable for groove backfill;
2. Use Honda gasoline engine or famous diesel engine, famous brand, quality assurance, superior performance, easy to start;
3. Adopt international famous brand hydraulic drive unit, walking forward and backward, reversing conveniently;
4. Adopt international NSK bearing, MITSUBOSHI triangle belt, ensure the machine's work performance;
5. Infinitely variable speed, double drums drive, the gradeability stays the same when oil temperature is higher.

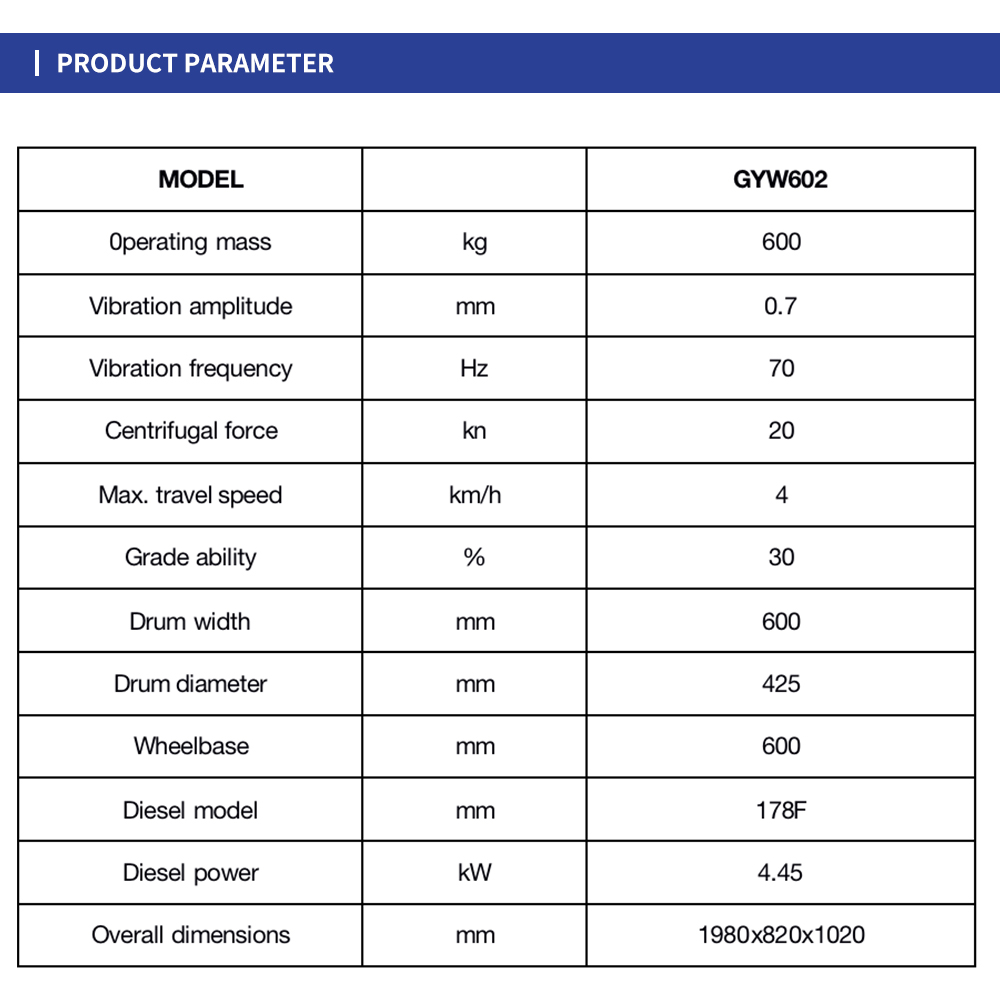

Model | GYW602 | |
Operating mass | kg | 600 |
Vibration amplitude | mm | 0.7 |
Vibration frequency | hz | 70 |
Centrifugal force | kn | 20 |
Max. travel speed | km/h | 4 |
Grade ablity | % | 30 |
Drum width | mm | 600 |
Drum diameter | mm | 425 |
Wheelbase | mm | 600 |
Diesel model | mm | 178F |
Diesel power | kw | 4.45 |
Overall dimensions | mm | 1980*820*1020 |
