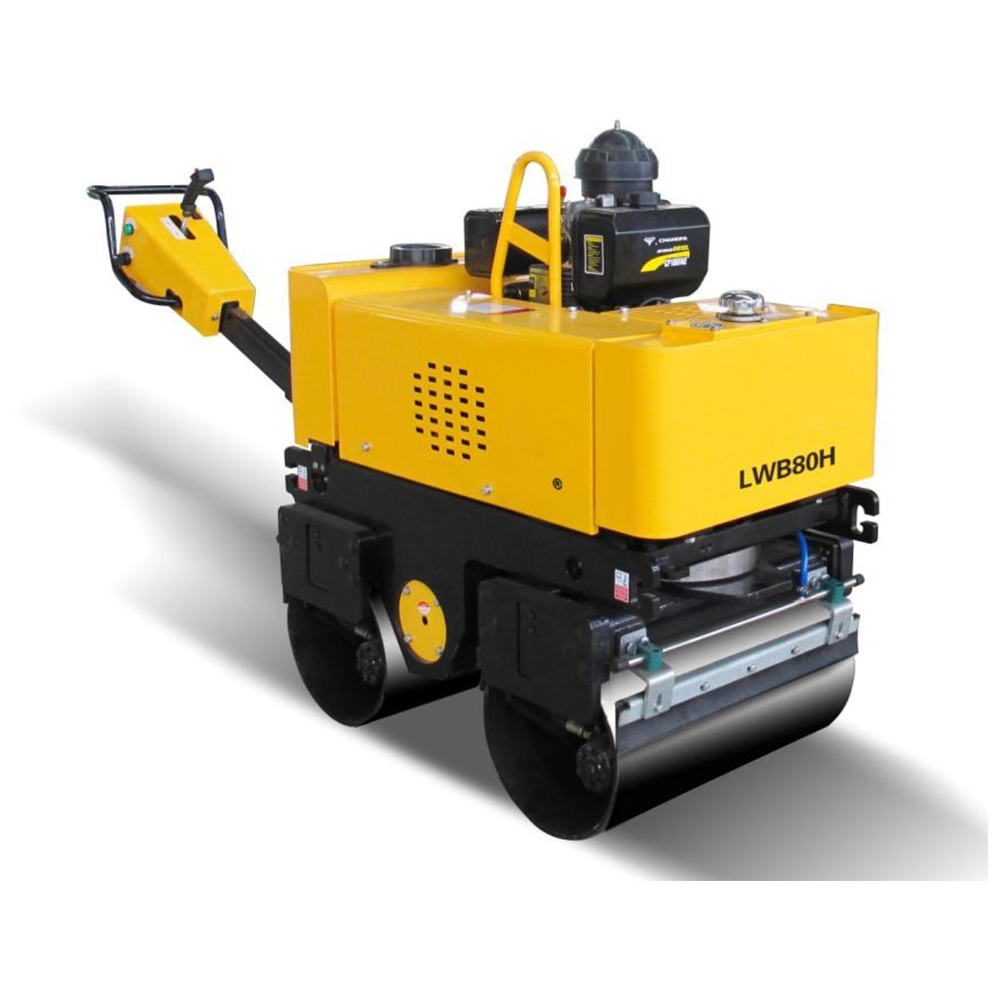

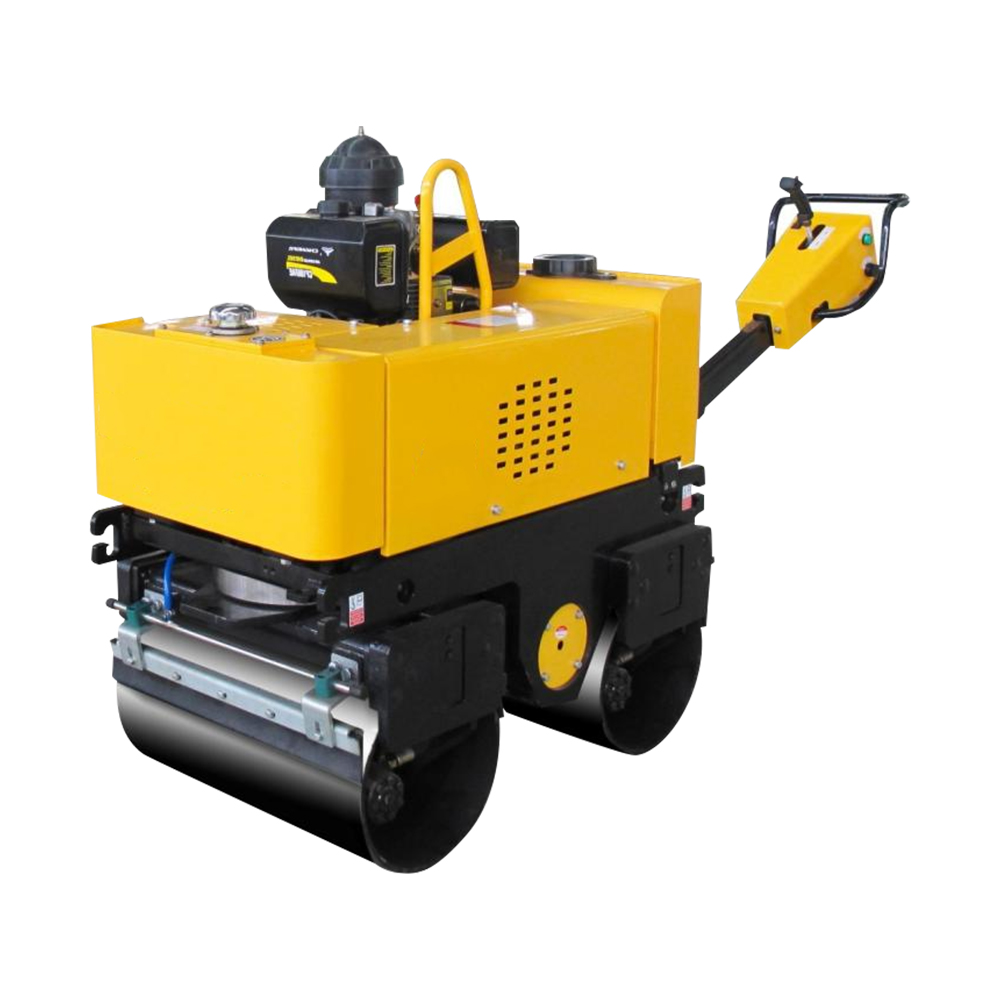

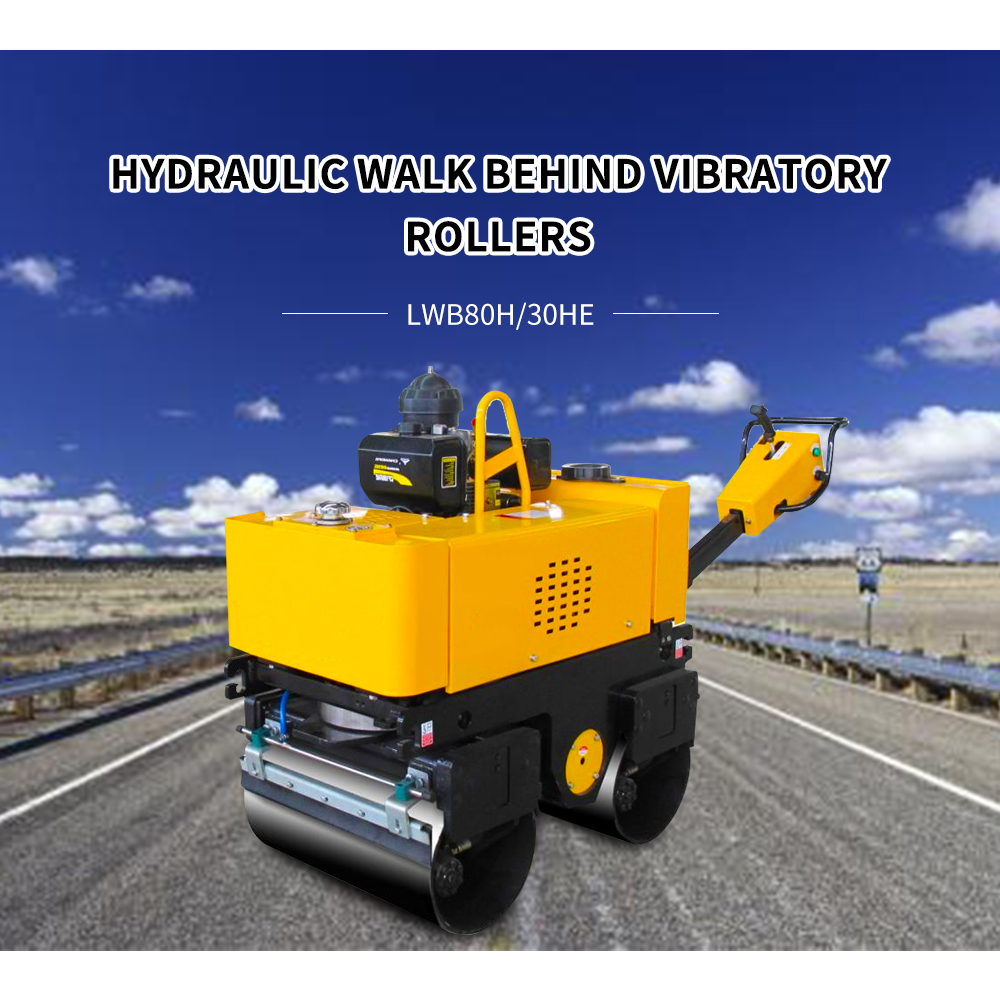

SINOMACH 0.8ton Mini Hydraulic Walk Behind Vibratory road Rollers for sale LWB80HE

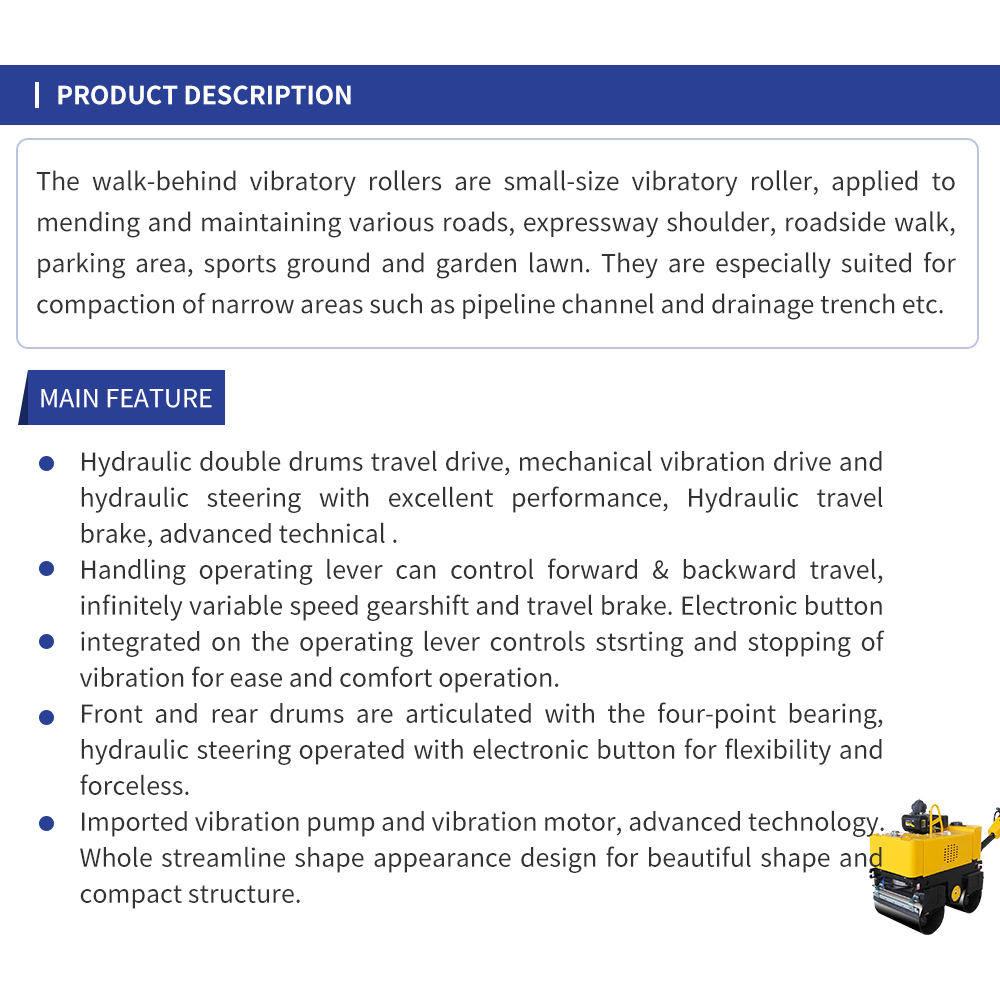

Introduction:

The walk-behind vibratory rollers are small-size vibratory roller, applied to mending and maintaining various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas such as pipeline channel and drainage trench etc.

Inquiry

Product Detail

Product Tags

Video

Main features

Hydraulic double drums travel drive, mechanical vibration drive and hydraulic steering with excellent performance, Hydraulic travel brake, advanced technical .

Handling operating lever can control forward & backward travel, infinitely variable speed gearshift and travel brake. Electronic button integrated on the operating lever controls stsrting and stopping of vibration for ease and comfort operation.

Front and rear drums are articulated with the four-point bearing, hydraulic steering operated with electronic button for flexibility and forceless.

Imported vibration pump and vibration motor, advanced technology.

Whole streamline shape appearance design for beautiful shape and compact structure.

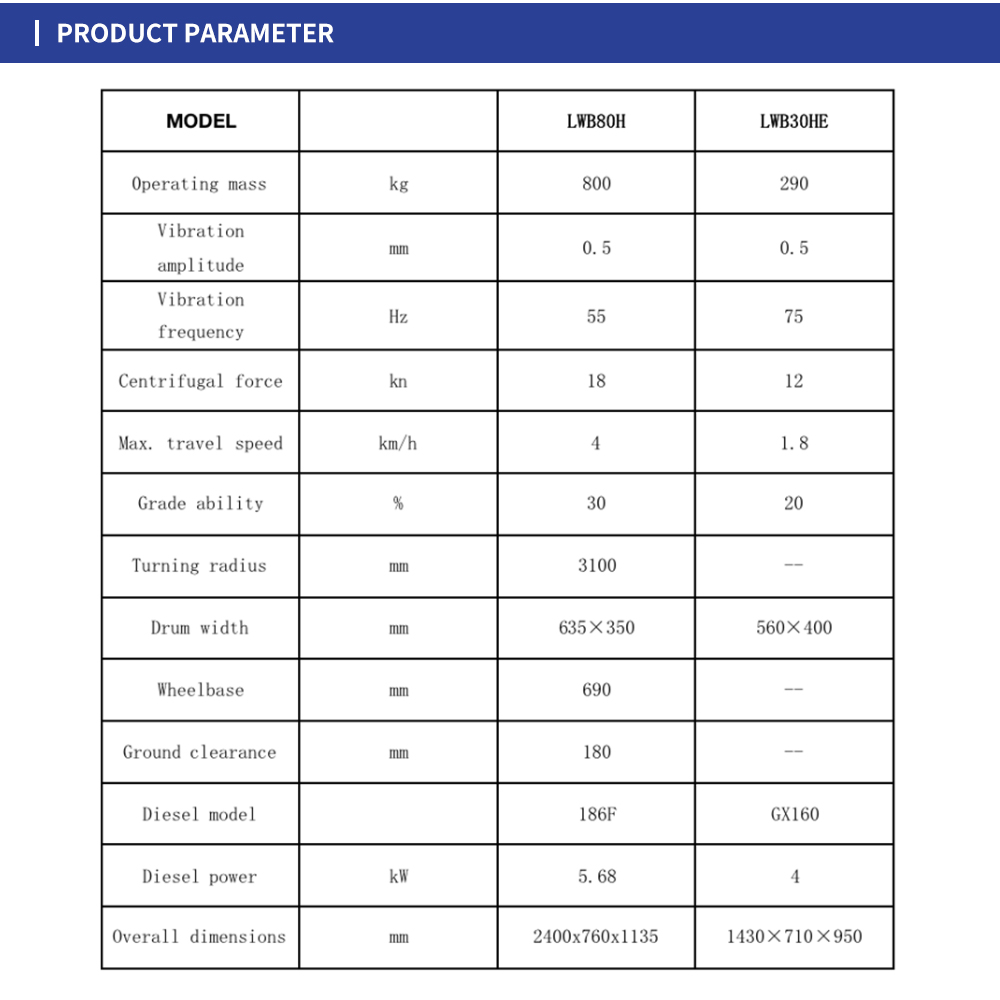

Parameter

Model		LWB80H	LWB30HE
Operating mass	kg	800	290
Vibration amplitude	mm	0.5	0.5
Vibration frequency	hz	55	75
Centrifugal force	kn	18	12
Max. travel speed	km/h	4	1.8
Grade ability	%	30	20
Turning radius	mm	3100	--
Drum width	mm	635*350	560*400
Wheelbase	mm	690	--
Ground clearance	mm	180	--
Diesel model		186F	GX160
Diesel power	kw	5.68	4
Over dimensions	mm	24007601135	1430710950
