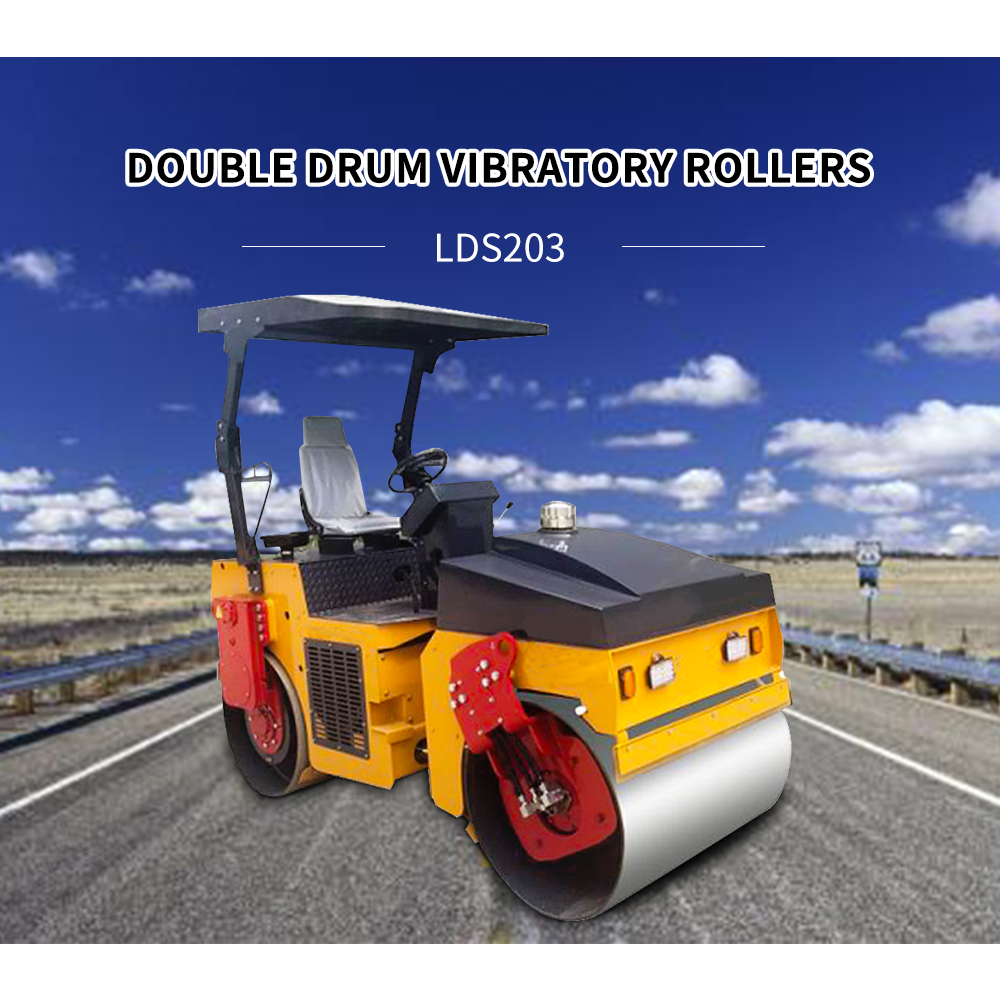

SINOMACH 3 ton Double Drum Vibratory road Rollers for sale LDS203

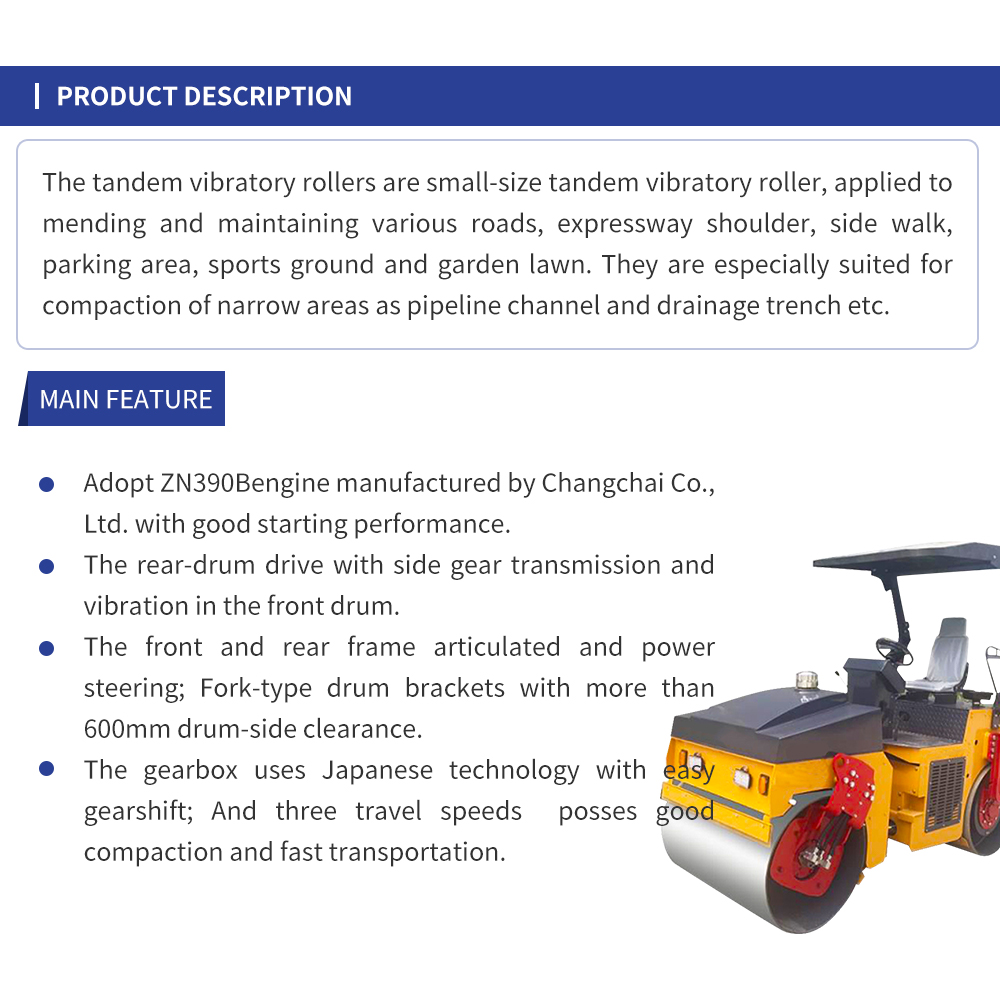

The tandem vibratory rollers are small-size tandem vibratory roller, applied to mending and maintaining various

roads, expressway shoulder, side walk, parking area, sports ground and garden lawn. They are especially suited

for compaction of narrow areas as pipeline channel and drainage trench etc.

Product Detail

Video

Characteristic

Adopt ZN390Bengine manufactured by Changchai Co., Ltd. with good starting

performance.

The rear-drum drive with side gear transmission and vibration in the front drum.

The front and rear frame articulated and power steering; Fork-type drum brackets

with more than 600mm drum-side clearance.

The gearbox uses Japanese technology with easy gearshift; And three travel

speeds posses good compaction and fast transportation.

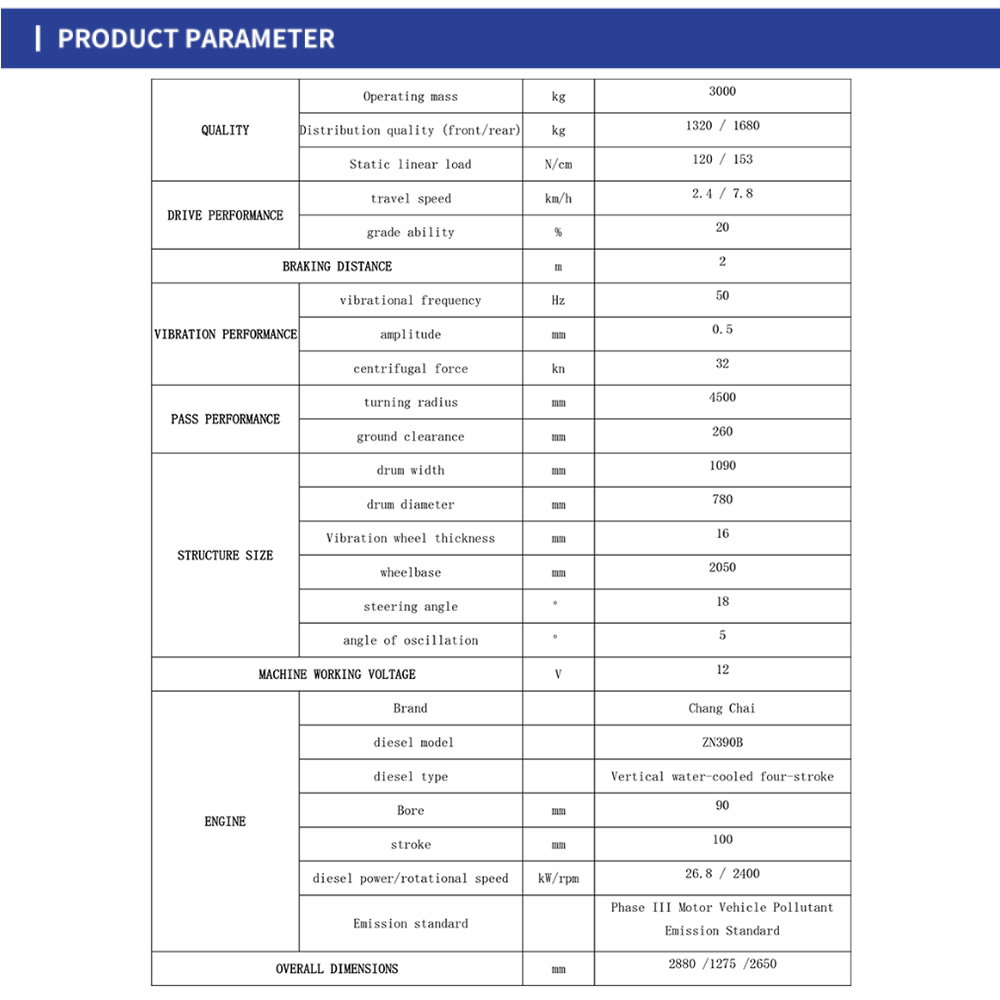

Parameter

Model		LDS203
Operating mass	kg	3000
Distribution quality(front/rear)	kg	1320/1680
Static linear load	N/cm	120/153
Travel speed	km/h	2.4/7.8
Grade ablity	%	20
Braking distance	m	2
Vibration frequency	hz	50
Amplitude	mm	0.5
Centrifugal force	kn	32
Turning radius	mm	4500
Ground clearance	mm	260
Drum width	mm	1090
Drum diameter	mm	780
Vibration wheel thickness	mm	16
Wheelbase	mm	2050
Steering angle	°	18
Angle of oscillationl	°	5
Machine working voltage	v	12
Brand		Chang Chai
Diesel model		zn390b
Diesel type		Vertical water-cooled four-stroke
Bore	mm	90
Stroke	mm	100
Diesel power/rotational speed	kw/rpm	26.8/2400
Emission standard		Phase III Motor vehicle pollutant emission standard
Overall dimensions	mm	2880/1275/2650
