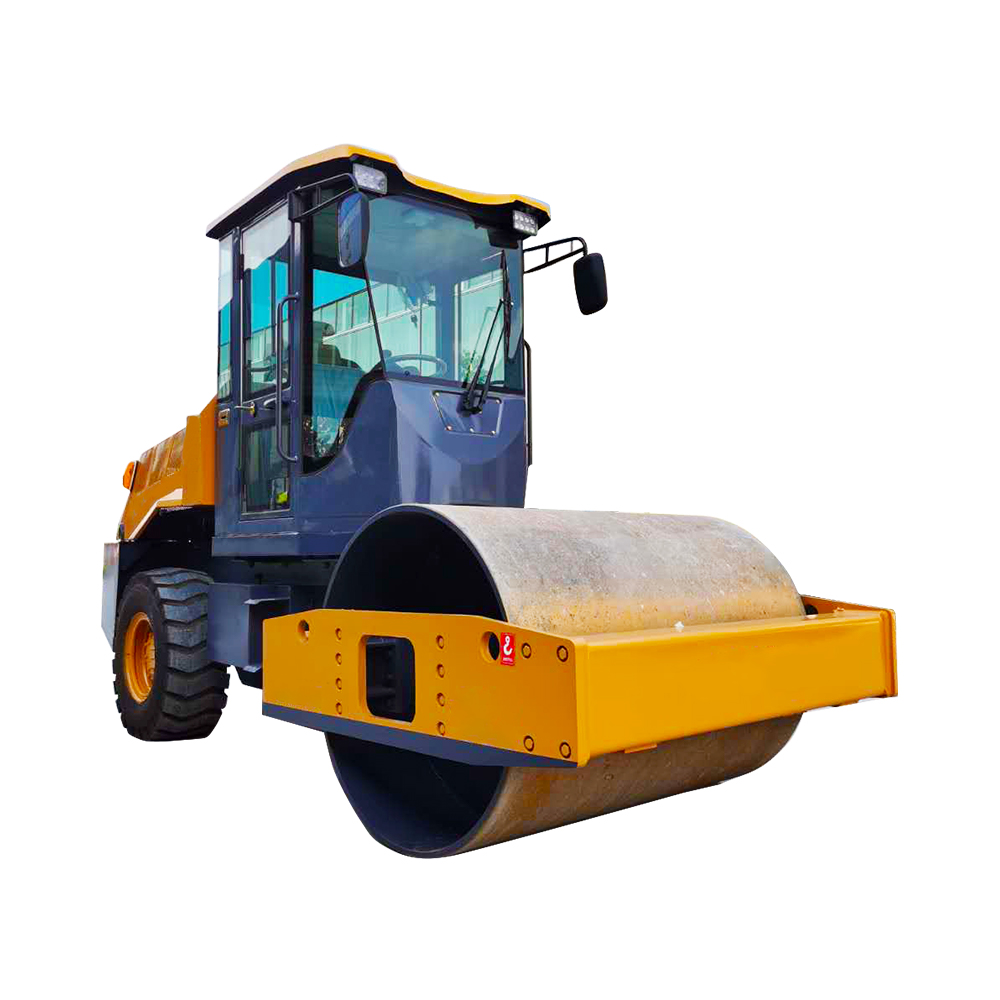

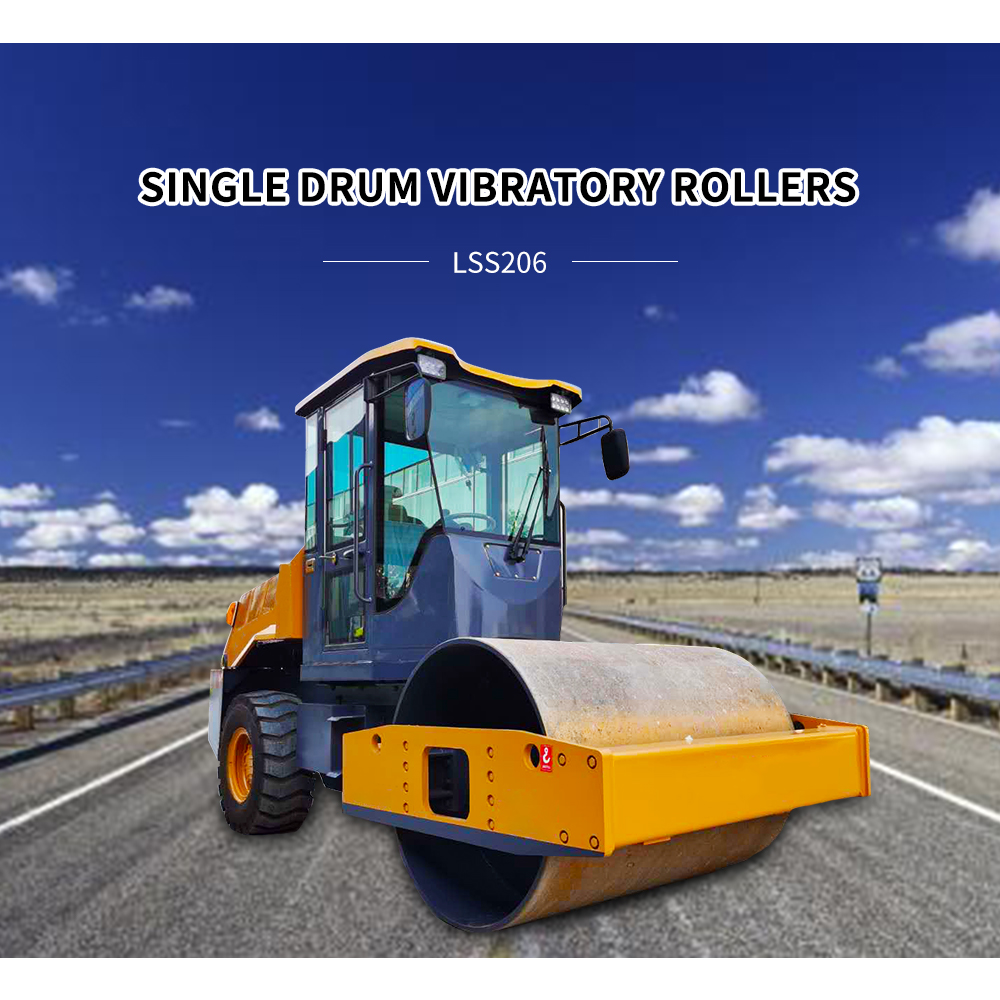

SINOMACH 6 ton Single Drum Vibratory road Rollers compactors LSS206

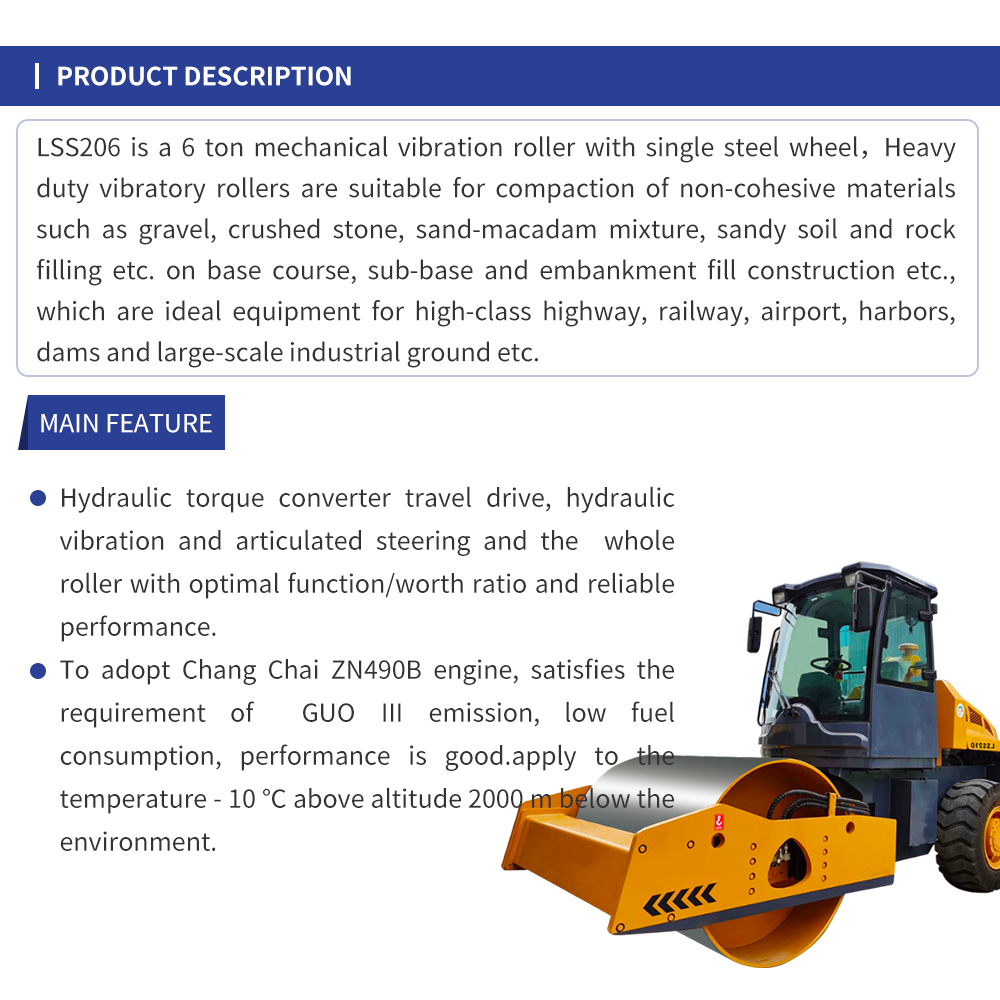

LSS206 is a 6 ton mechanical vibration roller with single steel wheel,Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.
Hydraulic torque converter travel drive, hydraulic vibration and articulated steering and the whole roller with optimal function/worth ratio and reliable performance.
To adopt Chang Chai ZN490B engine, satisfies the requirement of GUO Ⅲ emission, low fuel consumption, performance is good.apply to the temperature - 10 ℃ above altitude 2000 m below the environment.

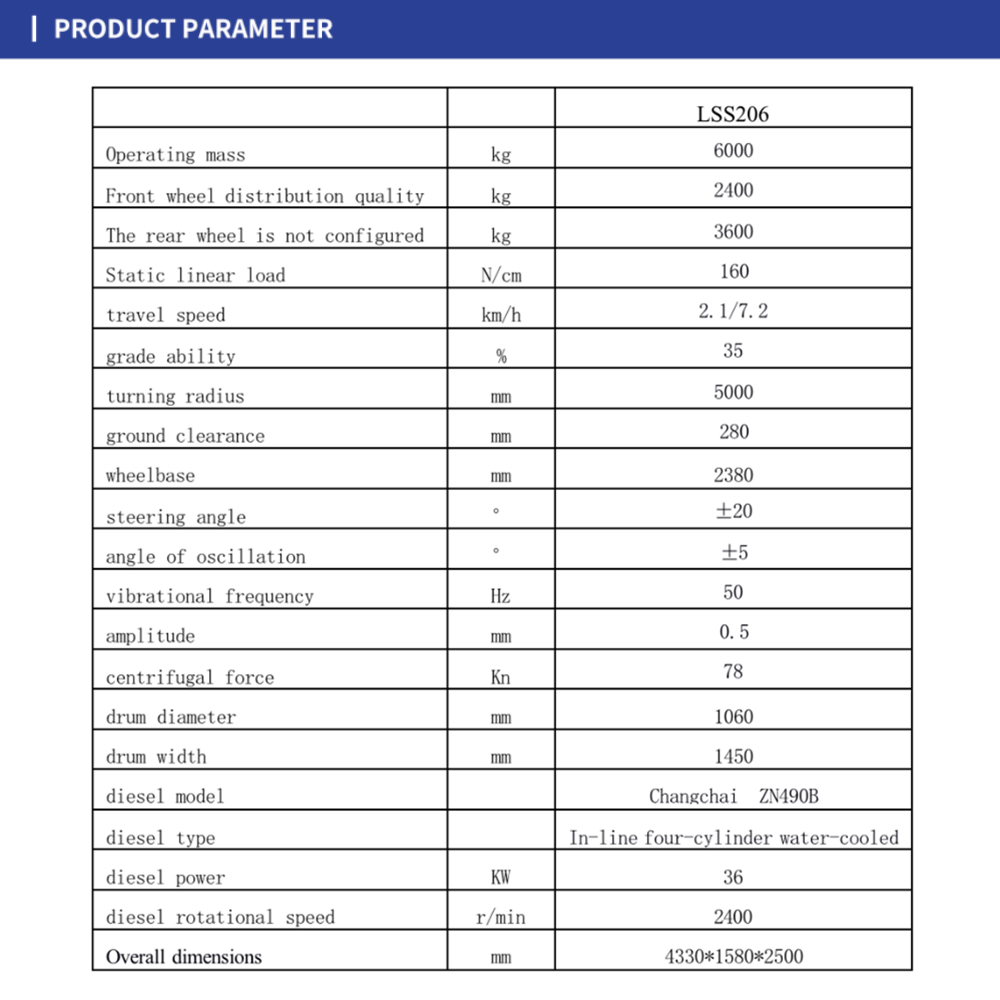

Model | LSS206 | |
Operating mass | kg | 6000 |
Front wheel distribution quality | kg | 2400 |
The Rear wheel is not configured | kg | 3600 |
Static linear load | N/cm | 160 |
Travel speed | km/h | 2.1/7.2 |
Grade ability | % | 35 |
Turning radius | mm | 5000 |
Ground clearance | mm | 280 |
Wheelbase | mm | 2380 |
Steering angle | ° | ±20 |
Angle of oscillation | ° | ±5 |
Vibrational frequency | hz | 50 |
Amplitude | mm | 0.5 |
Centrifugal force | kn | 78 |
Drum diameter | mm | 1060 |
Drum width | mm | 1450 |
Diesel model | Changchai zn490b | |
Diesel type | In-line four-cylinder water-cooled | |
Diesel power | kw | 36 |
Diesel rotational speed | r/min | 2400 |
Over dimensions | mm | 4330*1580*2500 |
