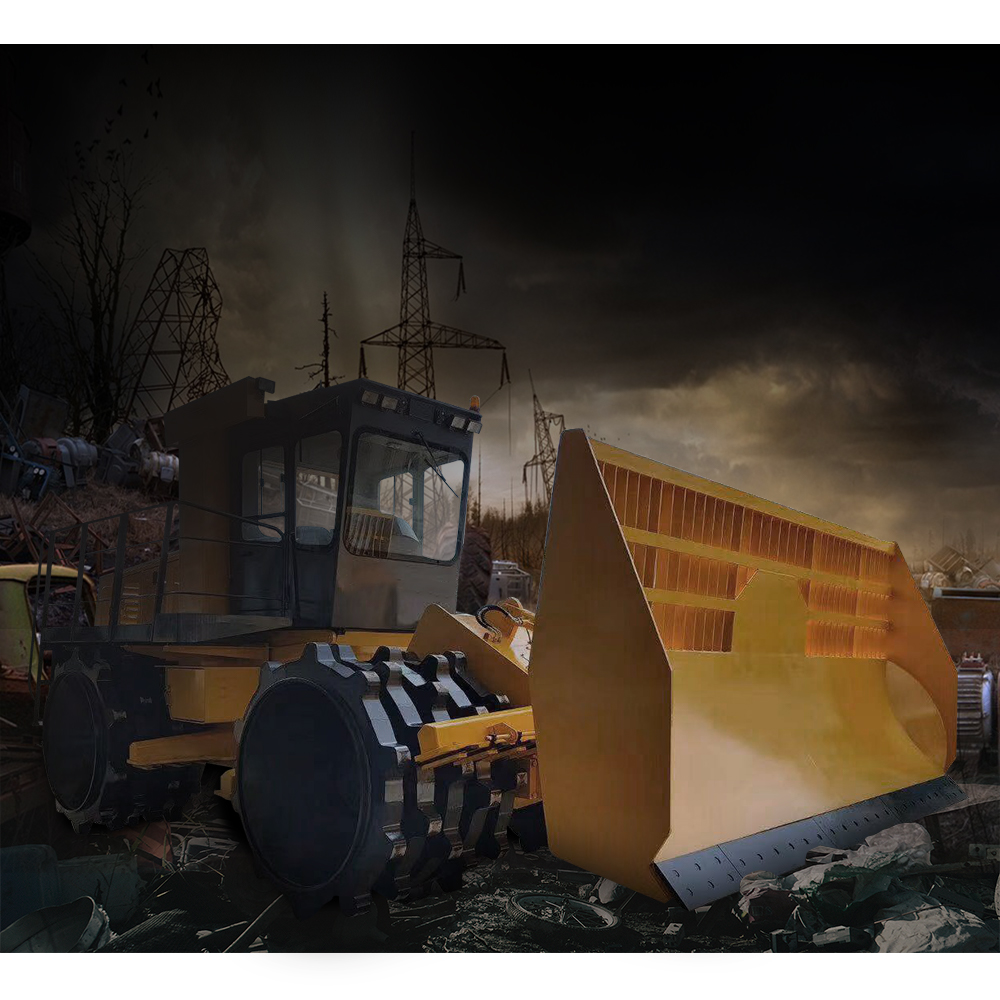

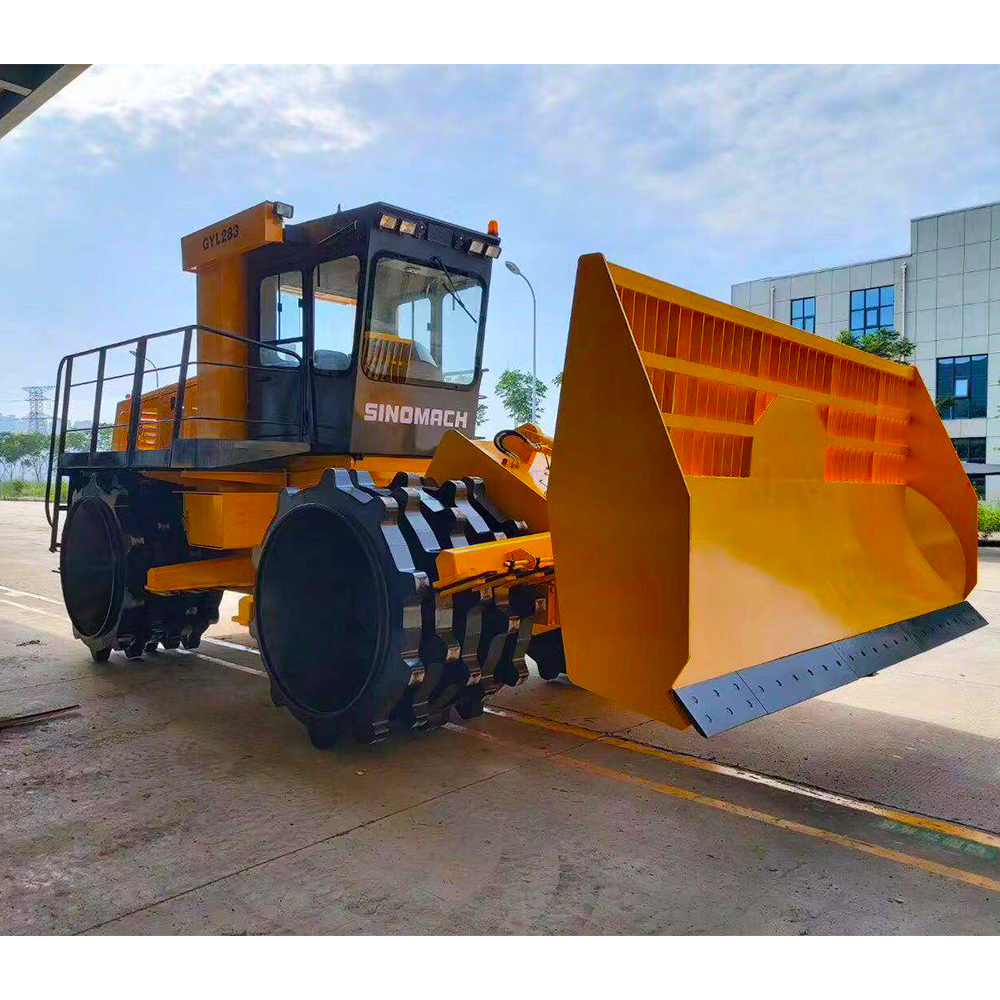

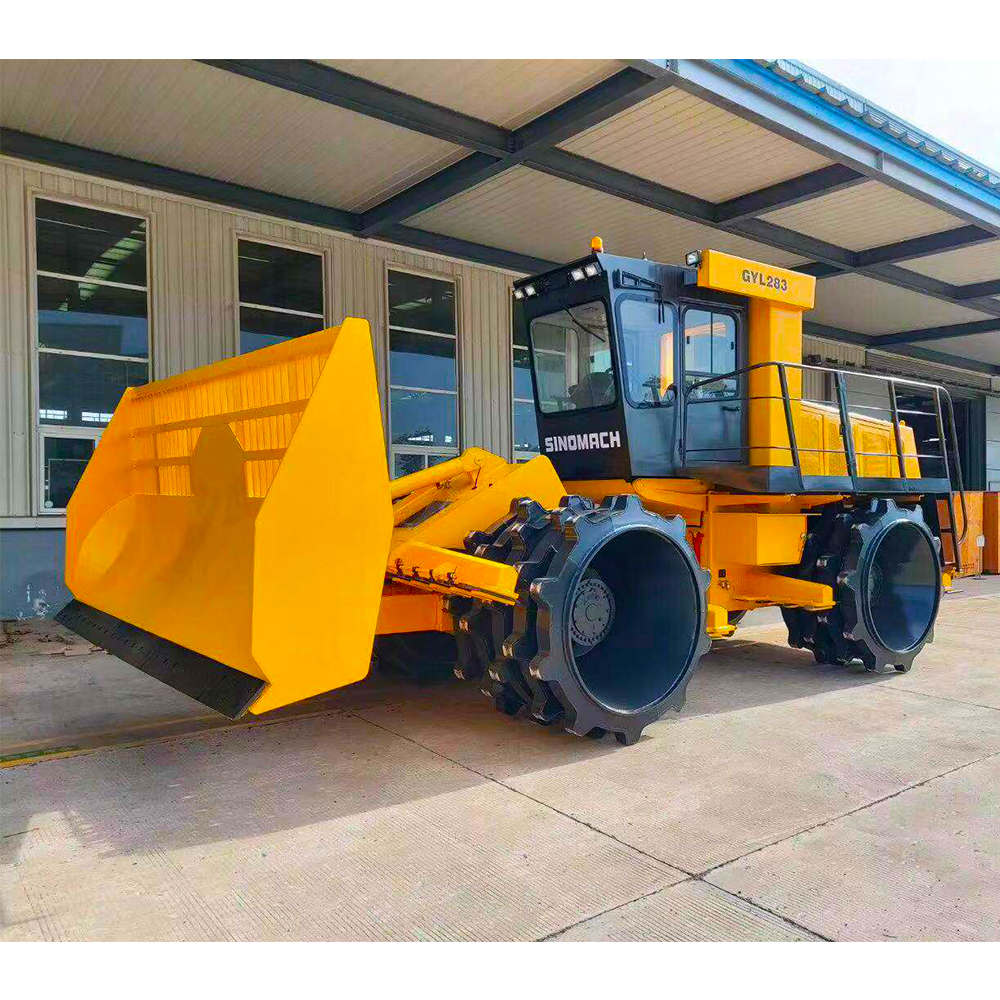

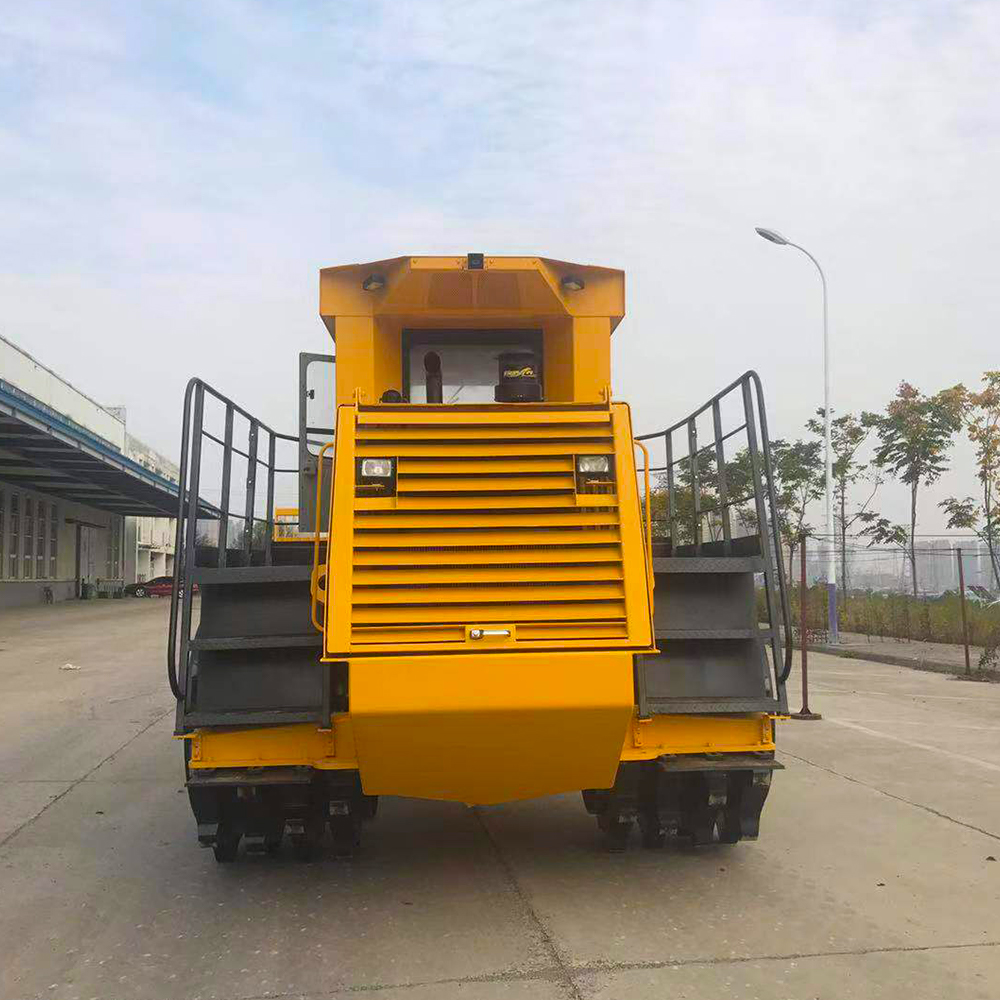

SINOMACH 20-28ton LLC228_226_223_220 Trash compacting machine Refuse Compactors trucks

Introduction:

The refuse compactors are essential equipments for refuse landfill site. It has the functions of pushing, spreading, pulverizing demolishing and compacting the refuse. Using this refuse compactor will help to save the land, protect the environmental and extend the operating life of the refuse landfill site.

Inquiry

Product Detail

Product Tags

Video

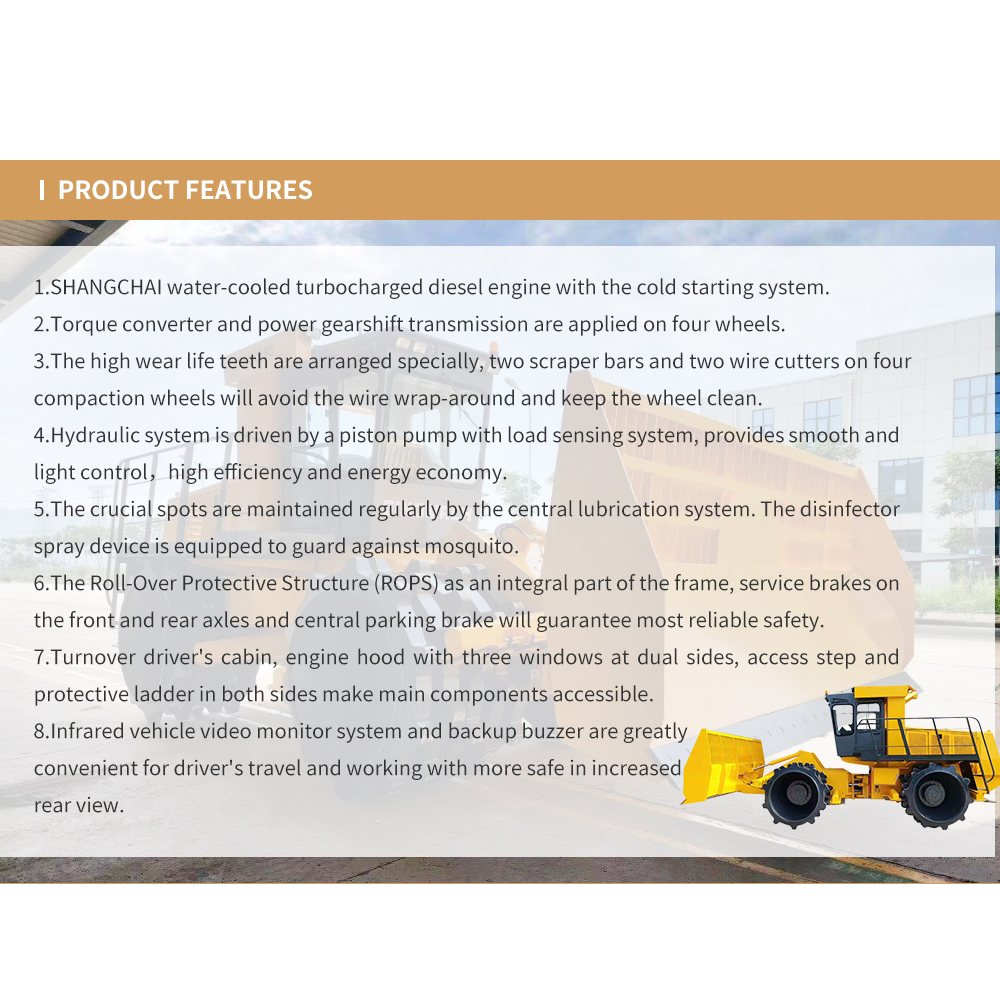

Features

1.SHANGCHAI water-cooled turbocharged diesel engine with the cold starting system.
2.Torque converter and power gearshift transmission are applied on four wheels.
3.The high wear life teeth are arranged specially, two scraper bars and two wire cutters on four

compaction wheels will avoid the wire wrap-around and keep the wheel clean.

4.Hydraulic system is driven by a piston pump with load sensing system, provides smooth and light control，high efficiency and energy economy.

5.The crucial spots are maintained regularly by the central lubrication system. The disinfector spray device is equipped to guard against mosquito.

6.The Roll-Over Protective Structure (ROPS) as an integral part of the frame, service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.

7.Turnover driver's cabin, engine hood with three windows at dual sides, access step and protective ladder in both sides make main components accessible.

8.Infrared vehicle video monitor system and backup buzzer are greatly convenient for driver's travel and working with more safe in increased rear view.

Parameter

Model		LLC220	LLC223	LLC226	LLC228
Total weight	kg	20000	23000	26000	28000
Front wheel axle load	kg	9500	11000	12500	13500
Rear wheel axle load	kg	10500	12000	13500	14500
Long	mm	7355	7355	8150	8150
Width	mm	3000	3000	3800	3800
High	mm	3600	3600	3650	3650
Wheelbase	mm	3350	3350	3500	3500
Ground clearance	mm	435	435	490	490
Width of pressure roller(front/rear)	mm	1040/835	1040/835	1195/970	1195/970
Diameter of pressure roller(front/rear)	mm	1500/1500	1500/1500	1620/1620	1620/1620
Number of teeth of pressing wheel(front/rear)		50/40	50/40	50/40	50/40
Engine manufacturer		SHANGCHAI	SHANGCHAI	SHANGCHAI	SHANGCHAI
Engine model		SC8DK200G3	SC8DK200G3	SC9DK260G3	SC9DK260G3
Engine power	kw	147	147	192	192
Engine speed	r/min	2200	2200	2200	2200
1 Forward speed	km/h	0-4.2	0-4.2	0-4.41	0-4.41
2 Forward speed	km/h	0-10	0-10	0-7.1	0-7.1
3 Forward speed				0-10.87	0-10.87
Reverse speed 1 gear	km/h	0-5.8	0-5.8	0-4.41	0-4.41
Reverse speed 2 gear				0-7.1	0-7.1
Maximum climbing ability	%	100	100	100	100
Dozer height	mm	1650	1650	1880	1880
Dozer width	mm	3000	3000	3800	3800
Dozer lifting height	mm	1000	1000	1200	1200
Dozer depth	mm	150	150	200	200
Steering angle	±°	40	40	40	40
Lateral swing angle	±°	15	15	15	15
Turning radius(outside front wheel)	mm	6250	6250	7200	7200
Fuel tank	L	450	450	500	500
Hydraulic tank	L	236	236	236	236
Drive method		Hydraulic transmission,power shift,all-wheel drive
Service brake		Pneumatic push oil,four-wheel caliper disc brake
Parking/emergency braking		Mechanical,expanding shoe brake
Steering method		Hydraulic,central articulated,swingable
