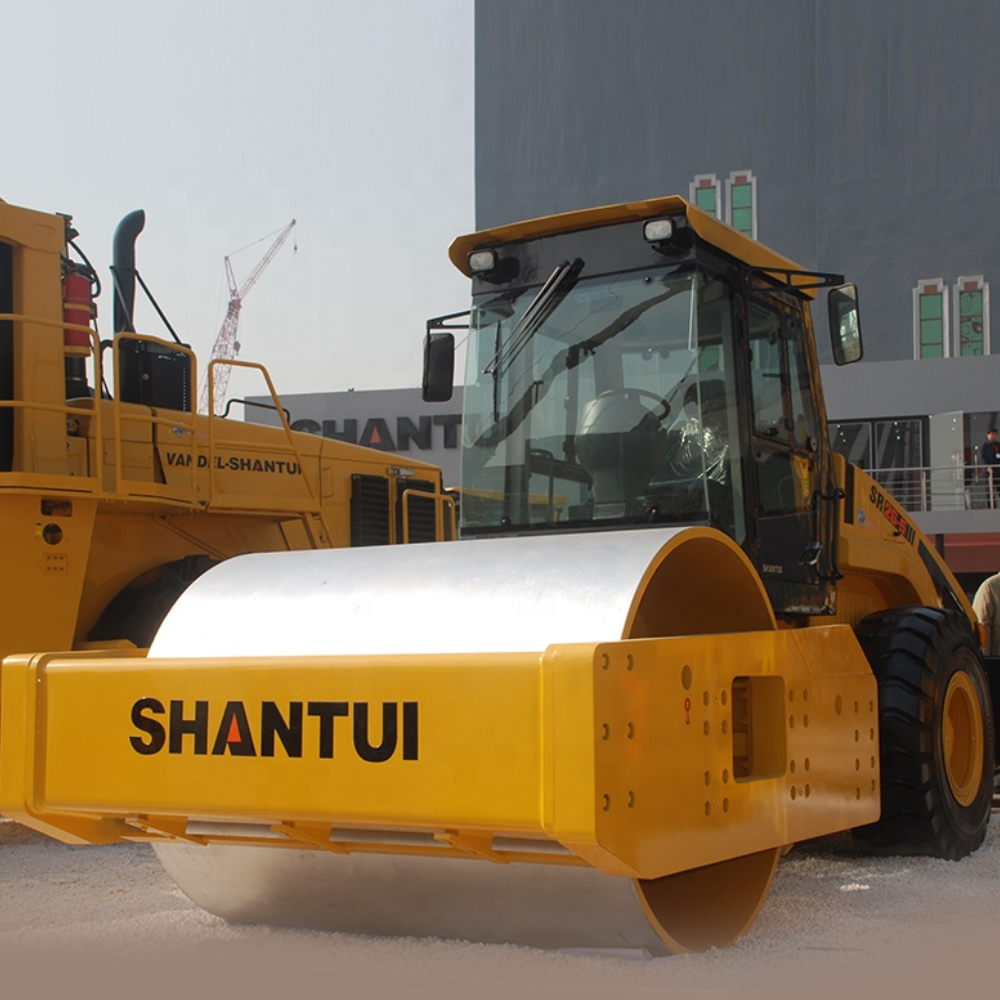

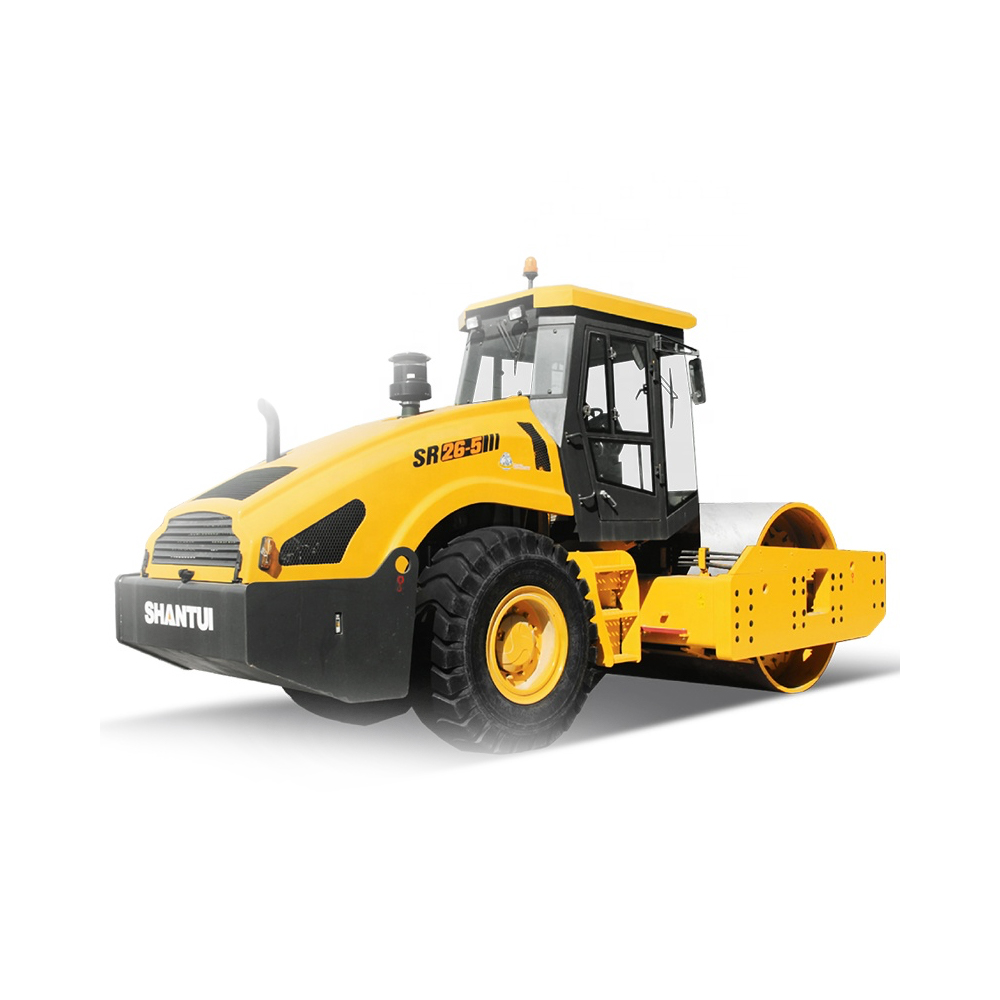

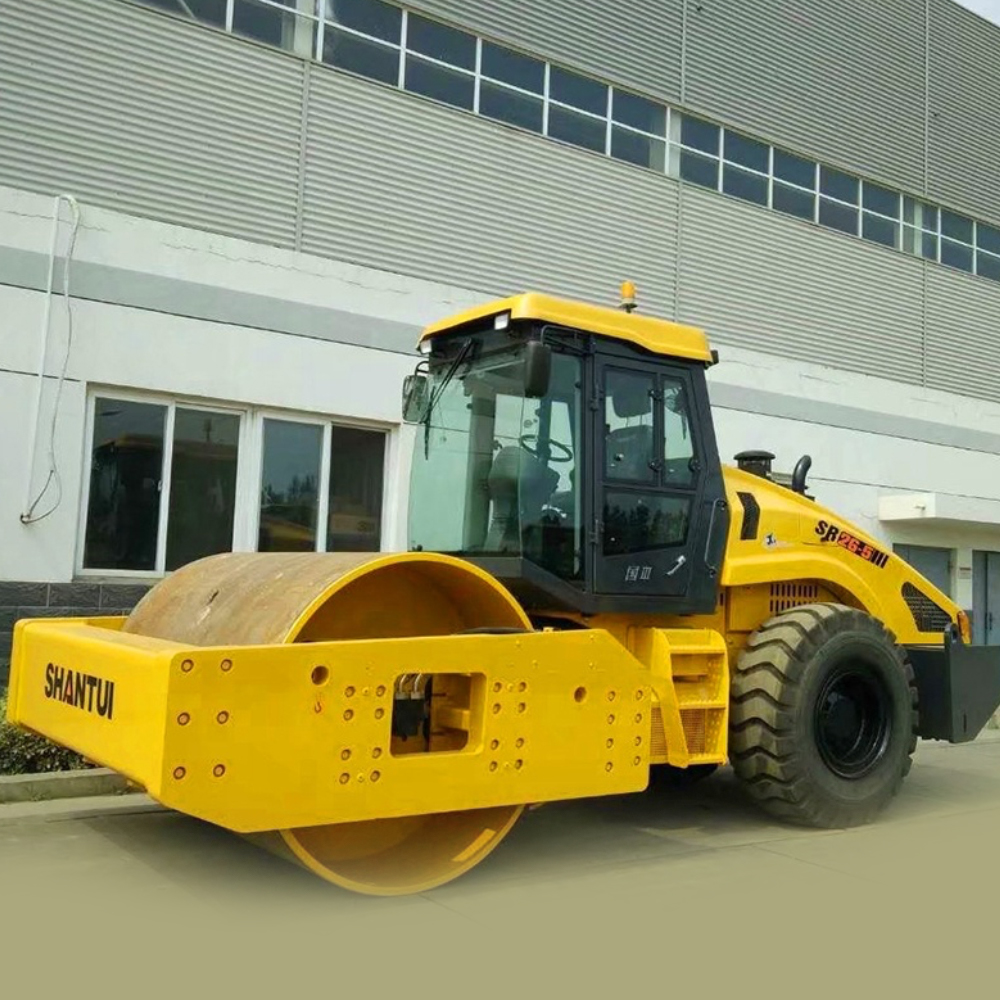

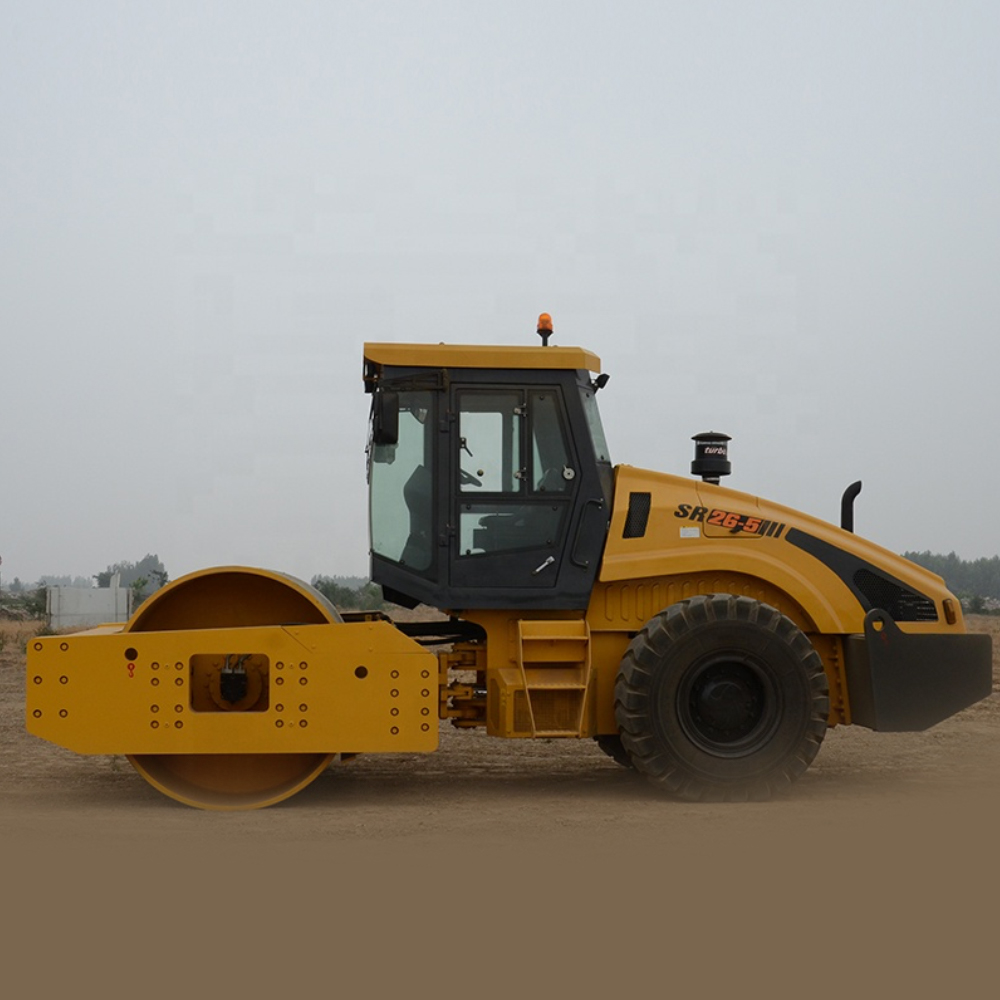

Shantui 26 ton SR26-5 compactor MachineOfficial single drum vibratory road rollers

Introduction:

Shantui’s high grade and high standard choice of critical parts of the roller (including engine, drive parts, and hydraulic parts) guarantees the performance and reliability of the product. The professional design on the static linear pressure, vibration amplitude, and vibration frequency and the appropriate speed and gradeability performance realize maximum working efficiency while providing high compacting performance.Finally, it has the extra-added touch of having a very attractive design flow to its outward appearance.


Product Detail

Product Tags

Video

Working Conditions

Standard double-amplitude and double-frequency function expands the application scope of the equipment.

The high span between high and low centrifugal forces helps the establishment of compacting schemes depending on different density specifications.

The design of the drum vibration parameters conforms to the requirements of the work site and the padfoot can be assembled onto the smooth drum within a short period to expand the functional scope of the machine.

1
2
3

Parameter

MODEL SR10 SR12-5 SR16 SR18 SR20-3 SR26-5
Operating weight(kg) 10120 12000 16450 18000 19535 25800
Axle load,front (kg) 5520 7000 10000 11350 12713 17000
Static linear load, front/rear(N/cm) 259 327 468 530 595 779
Working width(mm) 2130 2110 2140 2140 2140 2140
Minimum turning radius(mm) 5880 5500 5600 5800 6100 6000
Drum diameter(mm) 1500 1550 1550 1550 1550 1600
Vibration frequency 30/36 30/33 29/32 29/33 28/33 27/30
high amplitude/low amplitude(Hz)
Rated amplitude,high/low (mm) 2.0/1.0 1.9/1.02 1.8/0.8 1.75/0.95 1.86/0.93 1.8/1.1
Centrifugal force, high/low(KN) 270/180 270/175 300/167 310/215 370/255 352/265
Steering angle(°) ±36 ±36 ±36 ±36 ±36 ±36
Oscillating angle(°) ±12 ±12 ±12 ±12 ±10 ±10
Maximum climbing ability(%) 48 48 45 45 45 45
Forward speed(km/h) 1 0–5.3 0-5.3 0-5.6 0-5.2 0-4
2 0–9.9 0-9.9 0-5.9 0-7.1 0-7.2 0-5.4
3 0-9 0-8.7 0-12.7 0-9.5
4 0-13.5
Reverse speed(km/h) 1 0–5.3 0-5.3 0-5.9 0-5.6 0-5.2 0-4
2 0-9.9 0-9.9 0-9 0-7.1 0-7.2 0-5.4
3 0-8.7 0-12.7 0-9.5
4 0-13.5
Engine model Weichai Weichai DEUTZ CUMMINS CUMMINS Shangchai CUMMINS
P4G110E220 WP6G140E22 6BT5.9-C150 6BT5.9 SC8D190.G2 6CTAA8.3-C215
Rated power (kW) 82 105 112 132 140 160
Rated speed (rpm) 2200 2200 2500 2500 2200 2200
Padfoot,number
Height of the padfoot(mm)
Overall length(mm) 5860 6034 6092 6093 6232 6501
Overall width(mm) 2305 2275 2382 2410 2422 2562
Overall height(mm) 3225 3214 3104 3132 3372 3258
