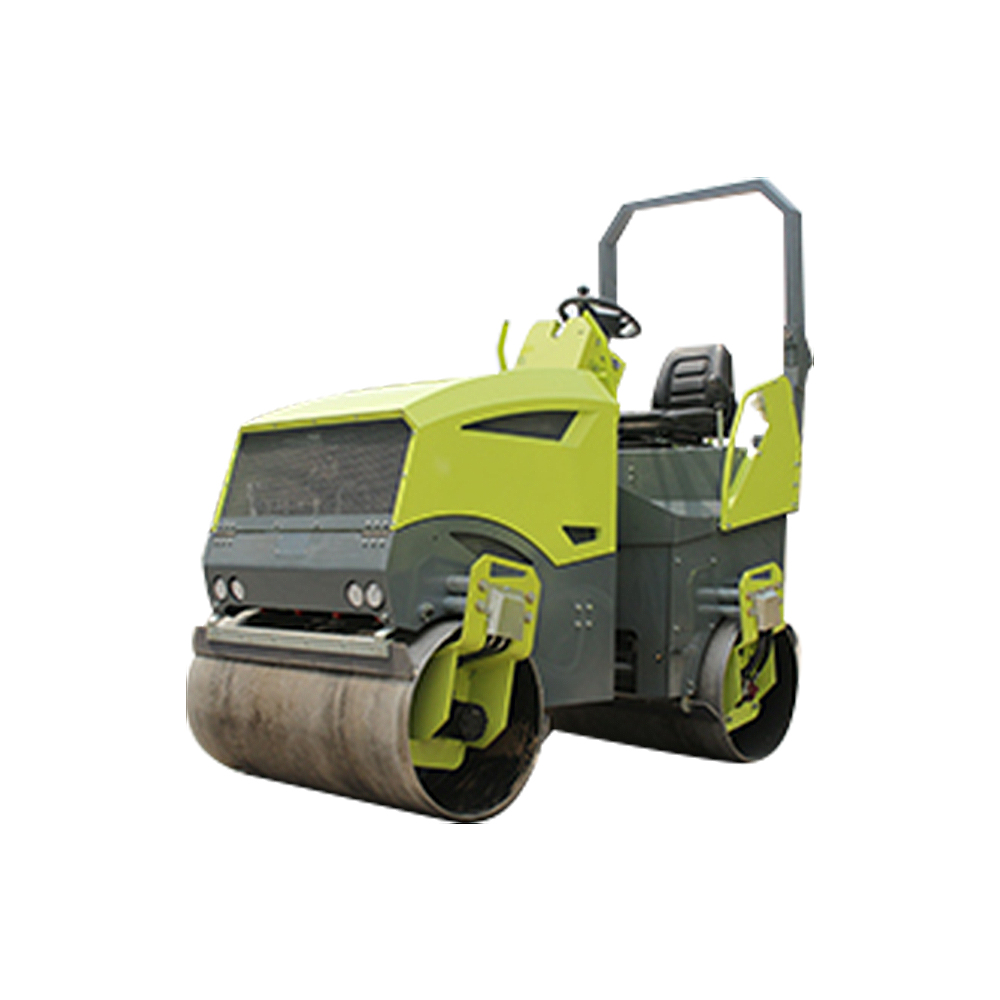

Storike 3 ton ST-3000 38hp China Suppliers Mini double drum vehicle type vibratory road rollers compactors price
1 . Equipped with brand power , quality assurance and superior performance
2 . Broad vision , beautiful and generous
3 . Imported hydraulic variable pump and fixed motor , stepless speed change , walking forward and backward

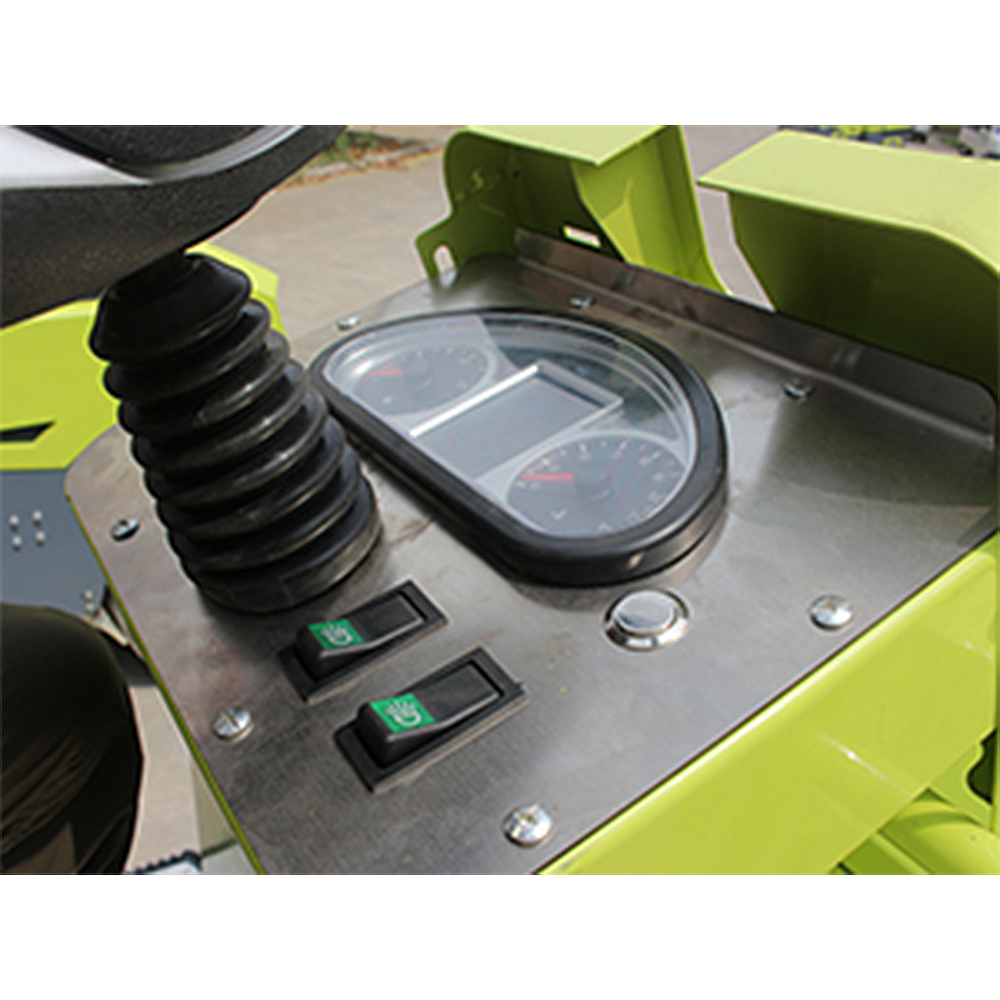

4 . The control panel has complete functions and one-key operation
5 . The front and rear assembly lights & warning lights are convenient for night construction
6 . Ergonomic driving
7 . The product has passed CE certification and IS09001 certification
8 . The steel wheels can be equipped with contour lights , which is convenient , safe and efficient to operate
9 . Won the Red Star Award and multiple patents
Used to compact soil, asphalt roads, sidewalks, bridges and culverts, parking lots, stadiums. Vertical vibration, large excitation force, high compaction efficiency, is a professional equipment for roads, streets and squares by highway and municipal departments.
| Technical parameters | Unit | |
| Model | ST3000 | |
| Operating weight | kg | 3000 |
| Static line load | N/cm | 106/94 |
| Size | ||
| Working width | mm | 1355 |
| Length of the whole machine(protective frame dumped/upped) | mm | 2480/2400 |
| The height of the whole machine (protective frame is tilted/upped) | mm | 1955/2630 |
| Outside turning radius(inside and outside) | mm | 2405/3760 |
| Steel wheel width | mm | 1200 |
| Steel wheel diameter | mm | 630 |
| Wheelbase | mm | 1650 |
| Drive | ||
| Engine brand | Changchai | |
| Engine model | ZH390B | |
| Engine type | Diesel/inline/water-cooled/four-stroke | |
| Number of cylinders | a | 3 |
| Output power | kw | 28.5 |
| Rotating speed | rpm | 2600 |
| Electrical equipment | v | 12 |
| Drive way | Variable plunger pump/Stepless variable speed/Hydraulic double | |
| Walking characteristics | ||
| Speed | km/h | 0--10 |
| Theoretical climbing ability | % | 30/35 |
| Brake | ||
| Working brake | Variable piston pump | |
| Steering | ||
| Steering method | Hydraulic cylinder/articulated steering | |
| Steering system | Swing articulated | |
| Excitation system | ||
| Vibrating steel wheel | Forward/forward+ backward | |
| Vibration form | Hydraulic motor | |
| Vibration frequency | hz | 65 |
| Vibration amplitude | mm | 0.5 |
| Exciting force | kn | 35/35*2 |
| Sprinkler system | ||
| Form | Intermittent electronic pressure water spray | |
| Capacity | ||
| Hydraulic oil capacity | l | 46 |
| Fuel capacity | l | 42 |
| Water tank capacity | l | 140 |
