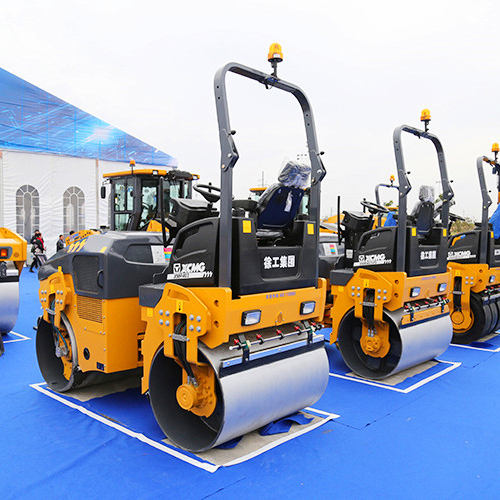

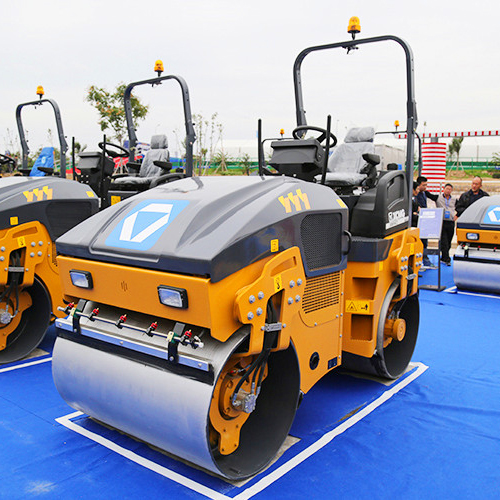

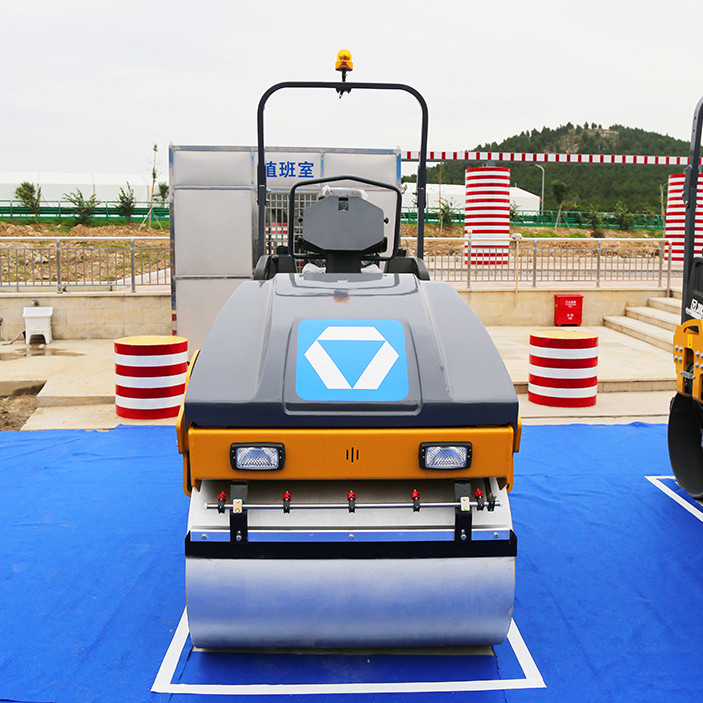

XCMG 4 ton Double Drum Road Roller XMR403

Introduction:

XMR403 is a light vibratory roller with operating weight of 4 tons. This machine is suitable for surface and edge compaction construction for asphalt engineering, cement engineering and So on, also suitable for sub-base and base, sand and gravel material compaction work, is the idealist compaction machinery for all sorts of parking lot construction, road, sidewalks and bike-way compaction, as well as a variety of road maintenance engineering.


Product Detail

Product Tags

Video

Performance Characteristics

Closed hydraulic drive system is adopted to realize step-less speed change.

Brake system uses the neutral position braking, emergency braking and parking brake, short braking distance and high braking torque, ensuring the safety of the product.

The front vision of machine is less than 1x0.75 m, rear view without any shade, which provides drivers with a good sight range.

The vibration system can realize the simultaneous vibration and independent vibration of the rear and front drum, and meets the different working conditions.

High frequency vibration and excitation force design, high working efficiency, good compaction effect.

Vibration drum width is larger than frame width, convenient to observe compaction condition of drum edge in the construction.

Large ground clearance and curb clearance, strong traffic ability, good edge compaction performance.

This machine has also the air intake preheating function, can realize low temperature cold start.

Changchai water-cooled turbocharged engine, in compliance with China Stage III emission requirements, allowing machine working normally in the environment at an altitude of 2000 meters and temperature above -20 ℃.

1
2
3
4
5
6

Specification

Item

Unit

XMR403

Operating mass

kg

4000

Static linear load (front drum/rear drum)

N/cm

157/157

Vibrational frequency

Hz

60

Amplitude

mm

0.41

Exciting force

kN

42

Vibrating drum (Diameter x width)

mm

800x1300

Theoretical gradeability

%

30

Operating speed

km/h

0~10.6

Wheel base

mm

1920

Steering angle

°

±30

Swing angle

°

±10

Minimum turning radius

mm

3062 / 4362

Minimum ground clearance

mm

348

Engine type



ZN490B

Rated power

kW

36

Rated speed

r/min

2600
