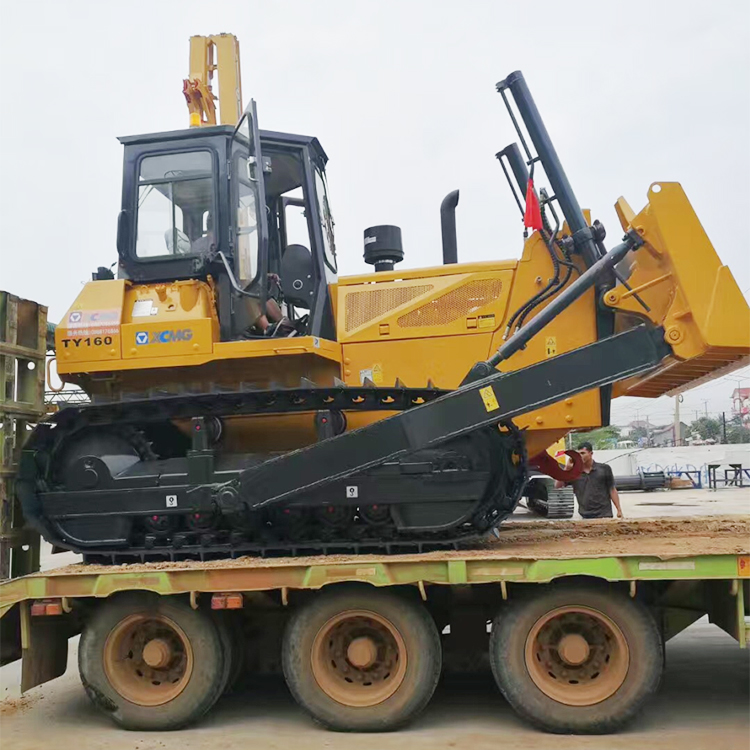

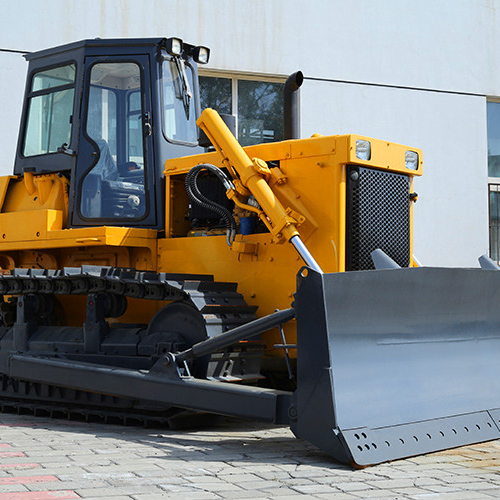

XCMG 18ton cheap bulldozers TY160 mini bulldozer







Name |
Remarks |
Specifications |

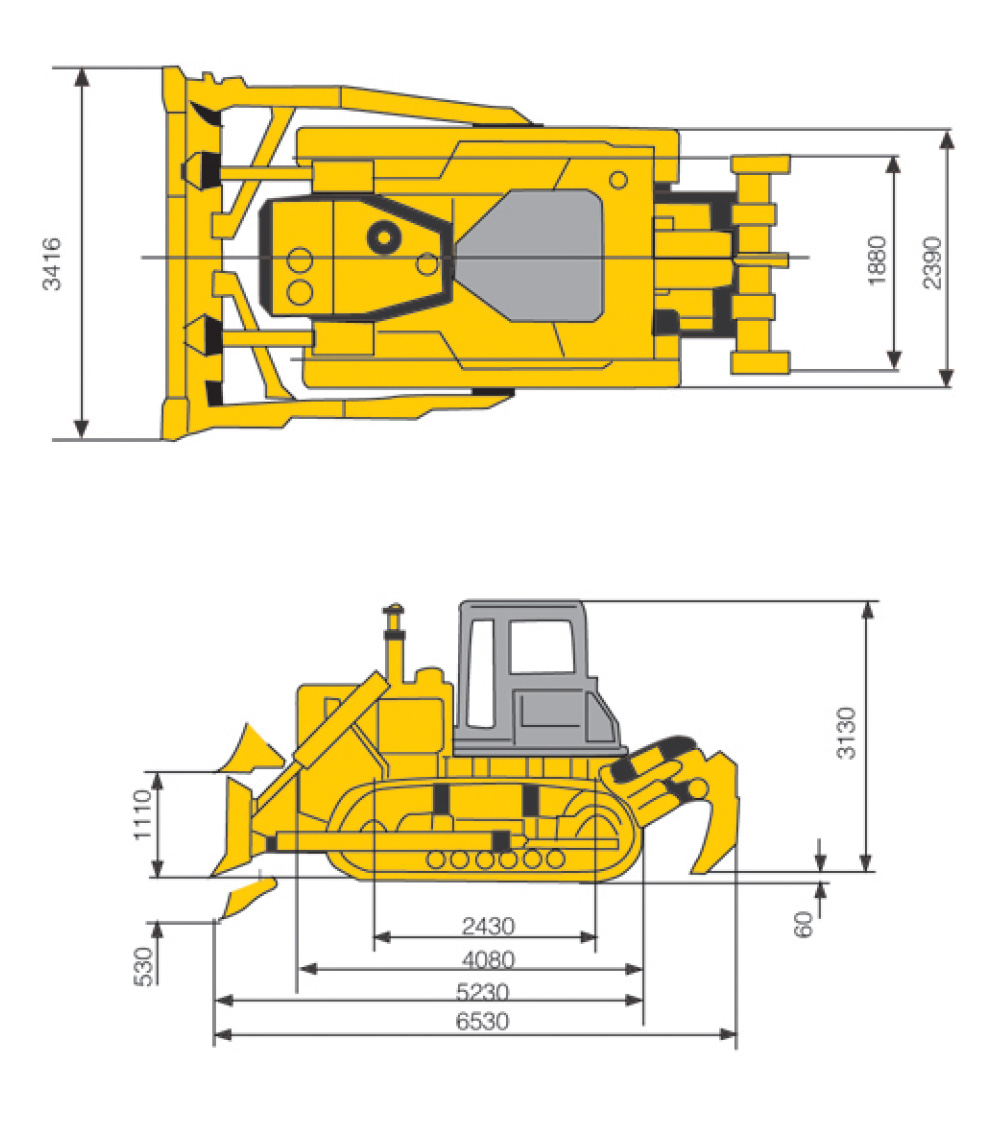

Overall size of the machine(mm) |
Straight shovel, traction rod |
5128×3416×3120 |
Straight shovel, three toothed soil loosen |
6215×3416×3120 |
|
The use quality of the whole machine(kg) |
Straight shovel, traction rod |
17100 |
Straight shovel, three toothed soil loosen |
18700 |
|
Maximum traction power (kN) |
148 |
|
Minimum turning radius (mm) |
3100 |
|
Maximum climbing performance (°) |
30 |
|
Minimum ground clearance (mm) |
No crawler |
400 |
Average ground specific pressure (MPa) |
0.065 |
|
Forward speed (km/h) |
F1 |
3.1 |
F2 |
5.47 |
|
F3 |
9.07 |
|
Back speed (km/h) |
R1 |
4.03 |
R2 |
7.12 |
|
R3 |
11.81 |
|
Tracked ground length (mm) |
2430 |
|
Caterpillar center distance (mm) |
1880 |
|
Production efficiency (m3/h) |
30m distance |
350 |

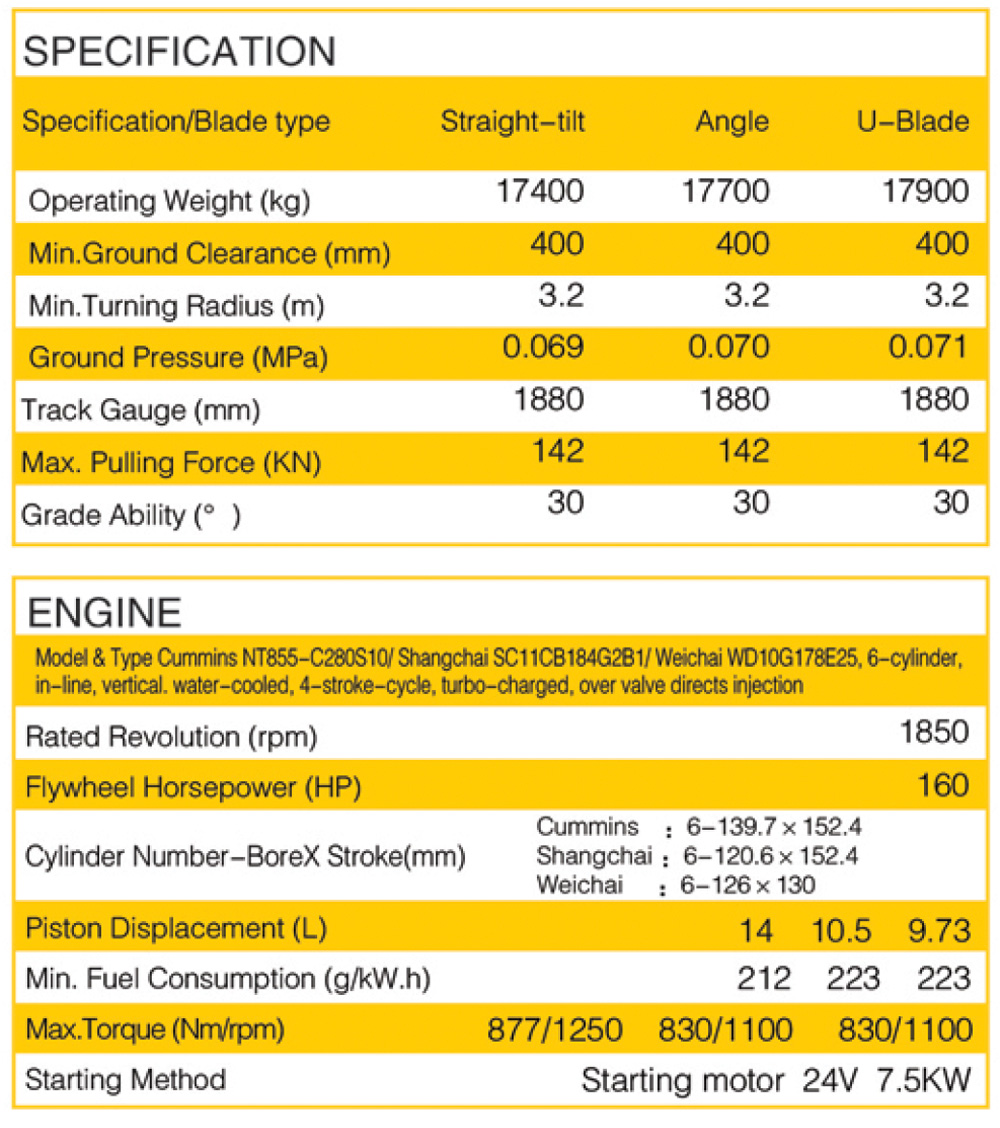

Engine |
||
Model |
Weichai WD10G178E25 |
|
type |
Water cooling,straight line,four stroke,direct injection |
|
The number of cylinder - bore * stroke (mm) |
6-126×130 |
|
Rated power (kW) |
131 |
|
Rated speed (r/min) |
1850 |
|
Maximum torque (N.m/r/min) |
830/1000~1200 |
|
Fuel consumption rate (g/kW.h) |
≤210 |
|

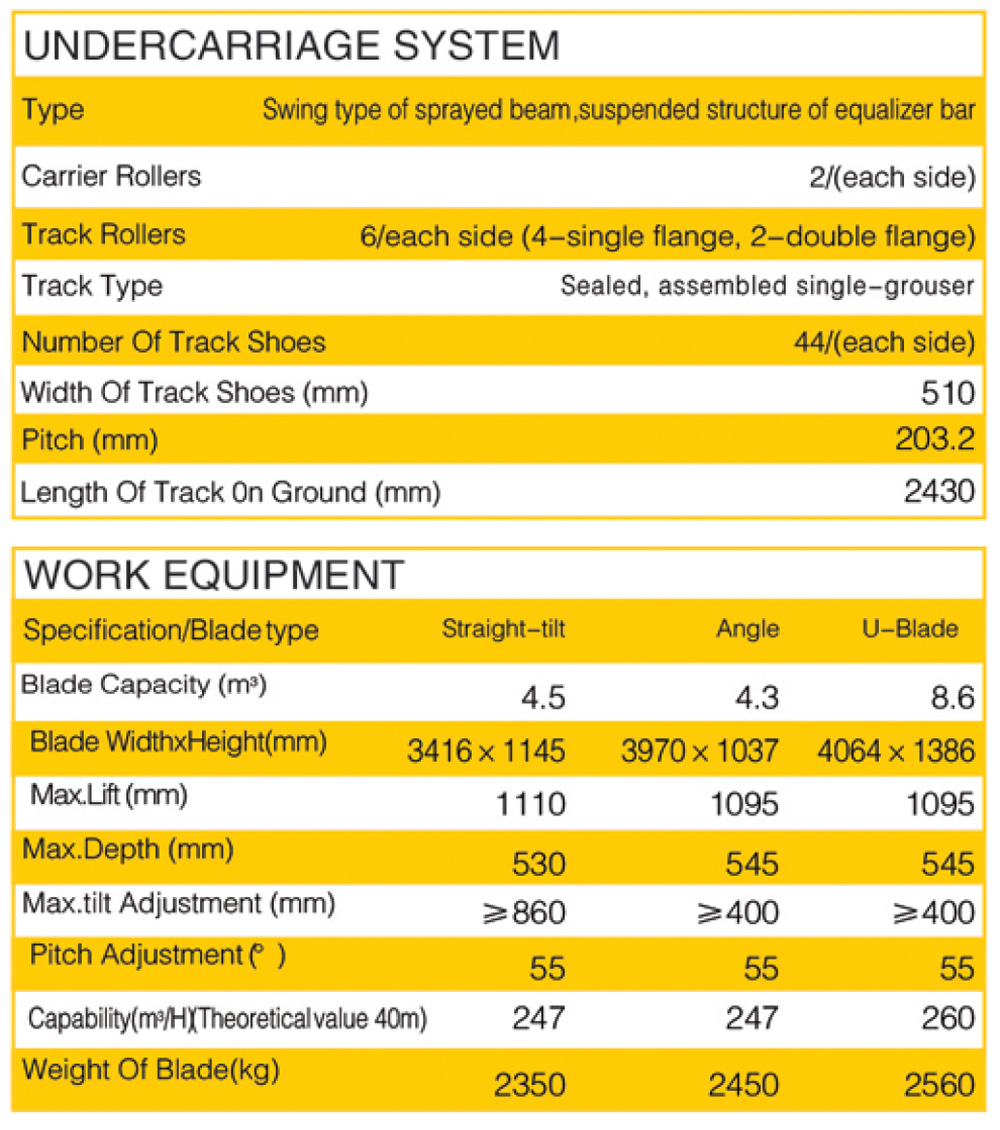

Walking system |
||
type |
Swing type and balance beam suspension structure |
|
Pitch (mm) |
203.2 |
|
Number of wheels of single side belt |
2 |
|
Number of single side pulley |
unilateral and 2 bilateral |
6 |
Crawler height (mm) |
60 |
|
Working device |
||
Straight shovel single shovel capacity (M3) |
3.9 |
|
The maximum lifting height of the blade (mm) |
1095 |
|
The maximum depth of soil cutting blade (mm) |
545 |
|
The maximum tilt blade height (mm) |
860 |
|

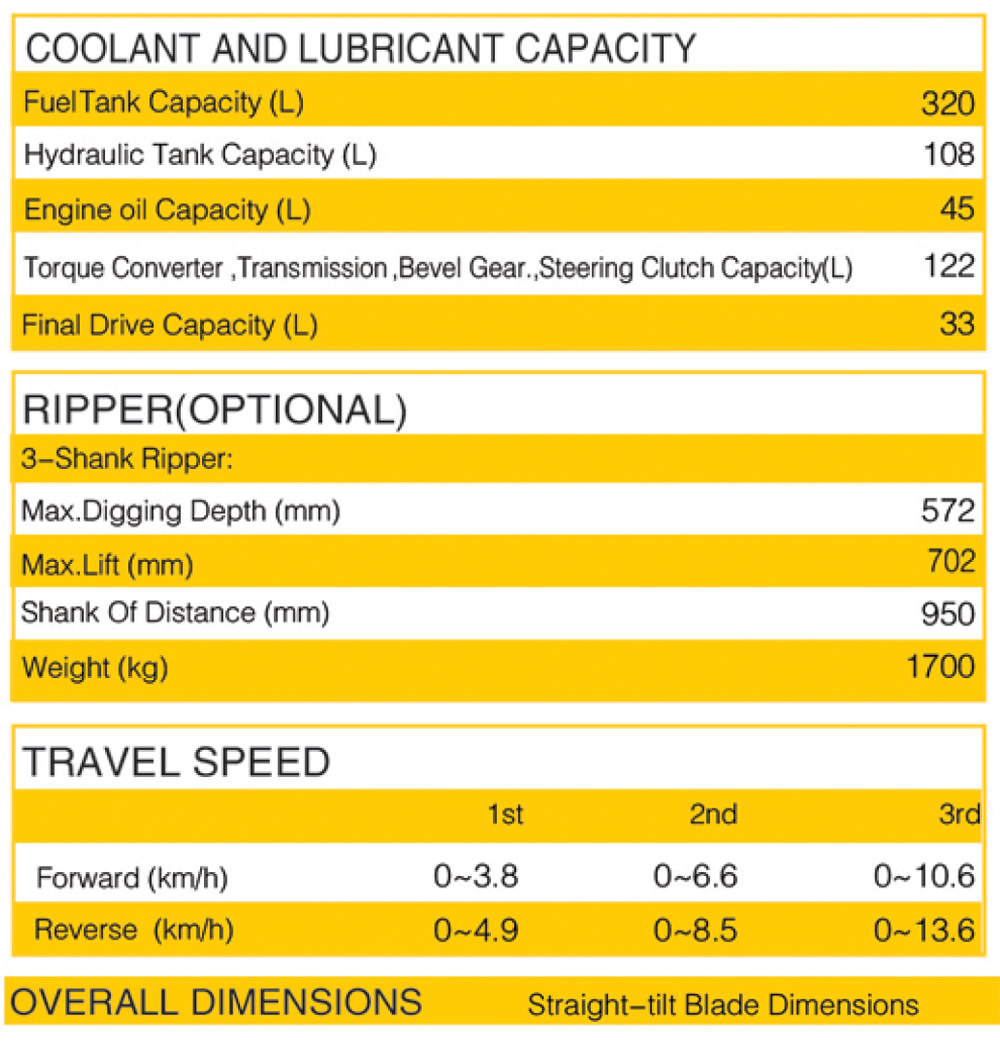

Type of soil looser |
Three teeth |
|
Three tooth looser tooth distance (mm) |
950 |
|
Three tooth looser |
Soil depth (mm) |
572 |
Elevation (mm) |
702 |
|
The three tooth scarifier weight (kg) |
1621 |
