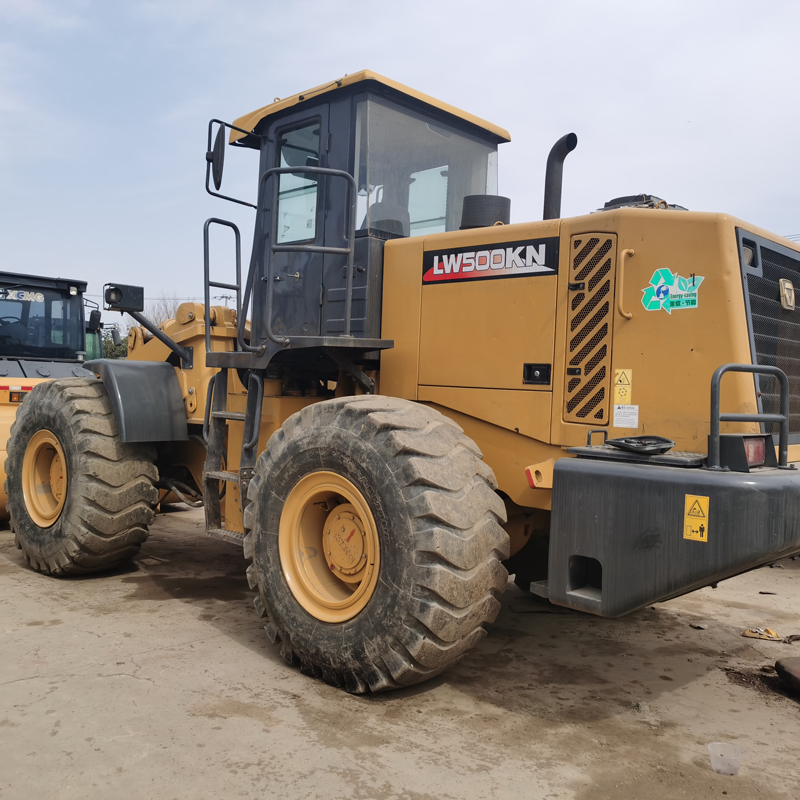

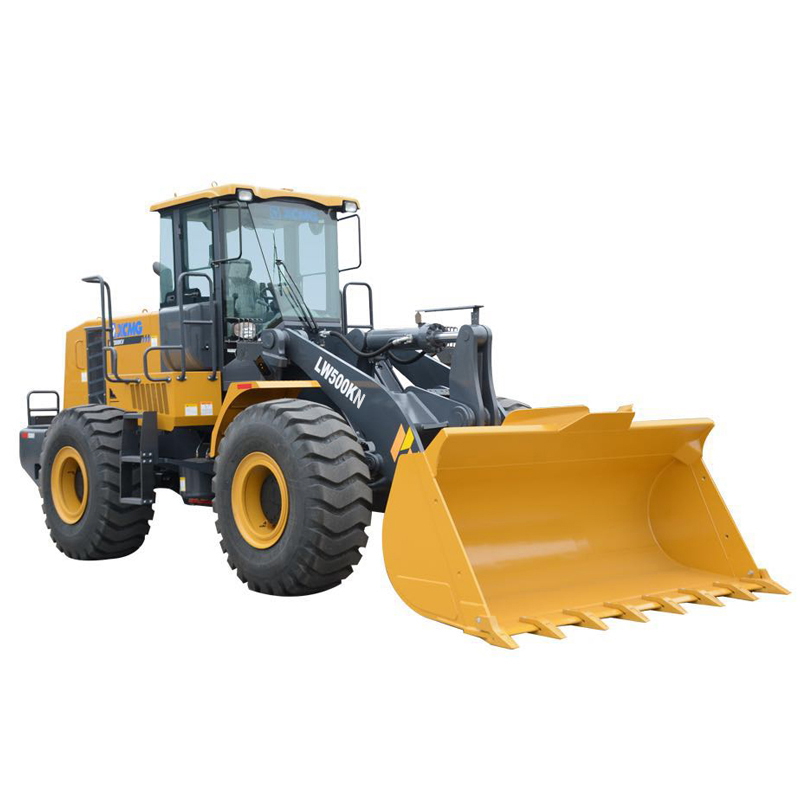

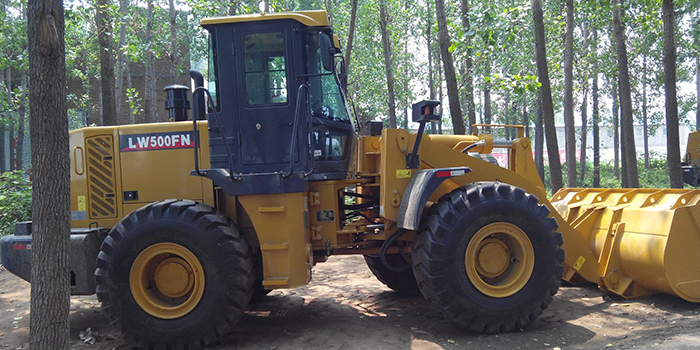

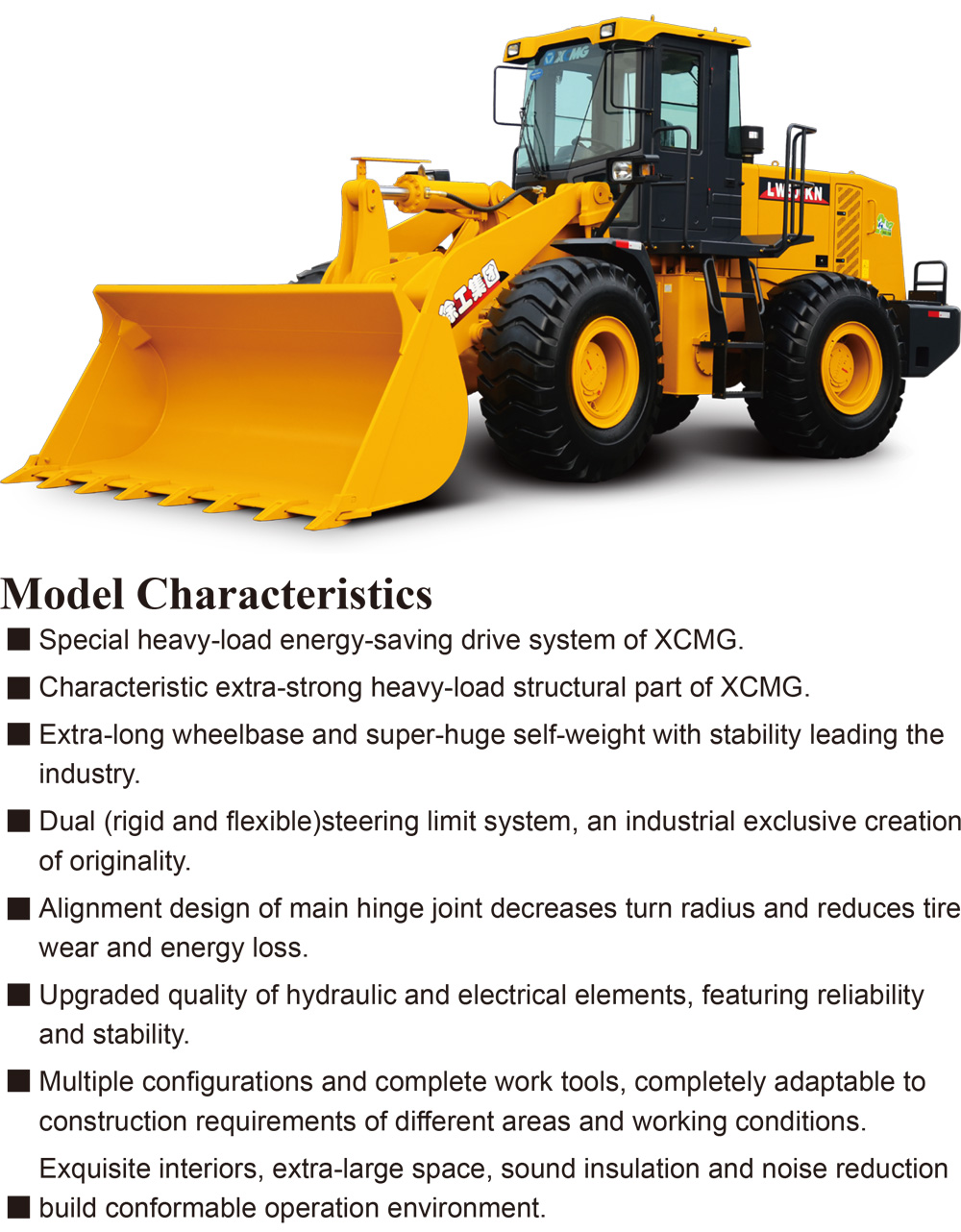

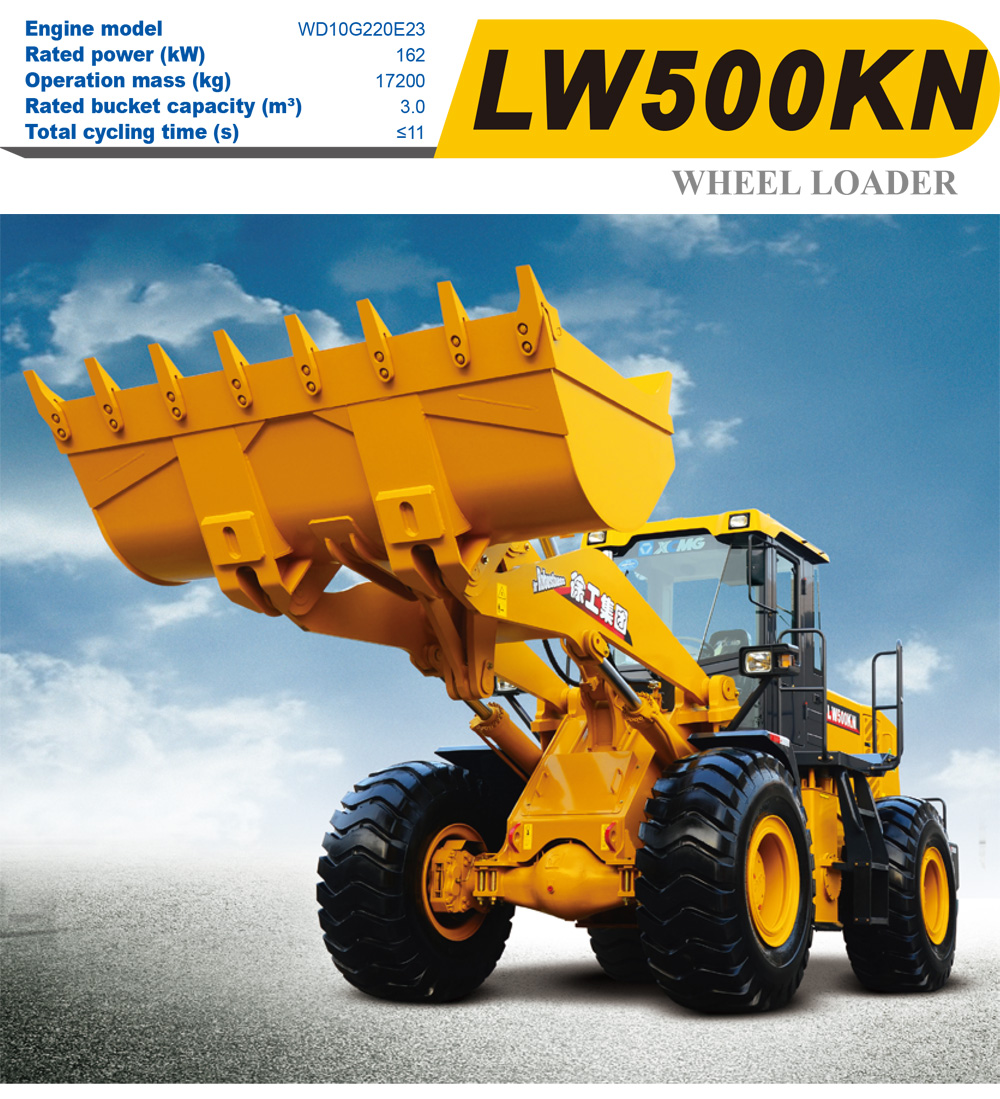

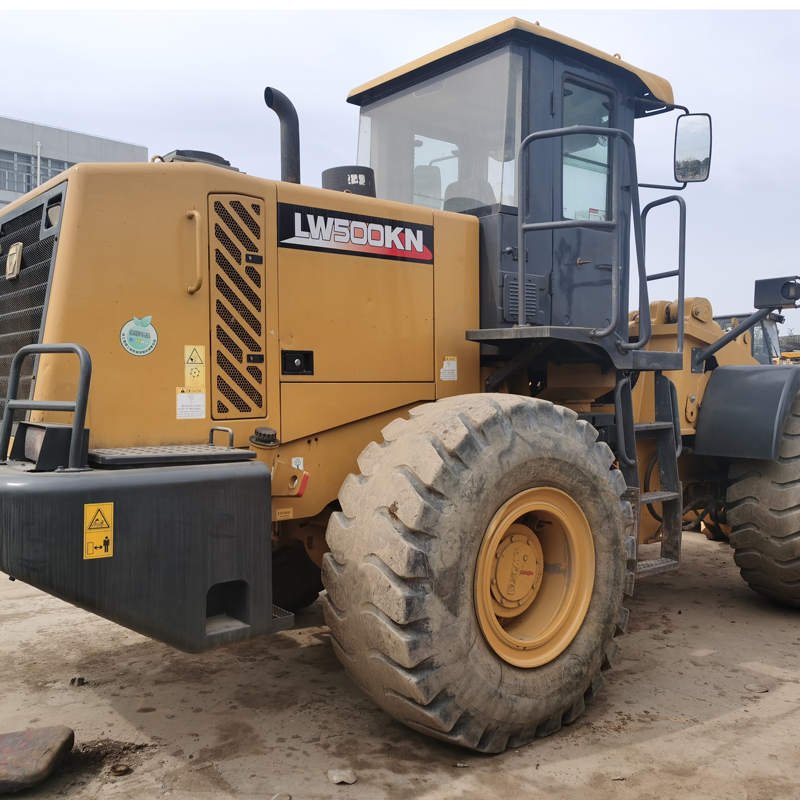

XCMG 5 ton LW500KN Wheel Loader







Item |
Specification |
Unit |
|
Rated operating load |
5000 |
kg |
|
Bucket capacity |
2.5~4.5 |
m³ |
|
Machine weight |
16900 |
kg |
|
Dump clearance at maximum lift |
3150~3560 |
mm |
|
Reach at maximum lift |
1100~1190 |
mm |
|
Wheel base |
2960 |
mm |
|
Tread |
2250 |
mm |
|
Height of hinge at maximum lift height |
4112 |
mm |
|
Working height(fully lifted) |
5510 |
mm |
|
Max.breakout force |
170 |
kN |
|
Hydraulic cycle time-raise |
6 |
s |
|
Total hydraulic cycle time |
10.5 |
s |
|
Min. turning radius over tyres |
5950 |
mm |
|
Articulation angle |
35 |
° |
|
Gradeability |
28 |
° |
|
Tyre size |
23.5-25-16PR |
|
|
Overall machine dimension L×W×H |
7910×3016×3515 |
|
|
Model |
WP10G220E21 |
|
|
Rated Power |
162 |
Kw |
|
Fuel Tank |
250 |
L |
|
Hydraulic Tank |
210 |
L |
|
Travel speed |
Ⅰ-gear(F/R) |
13/18 |
km/h |
Ⅱ-gear(F/R) |
40 |
km/h |
