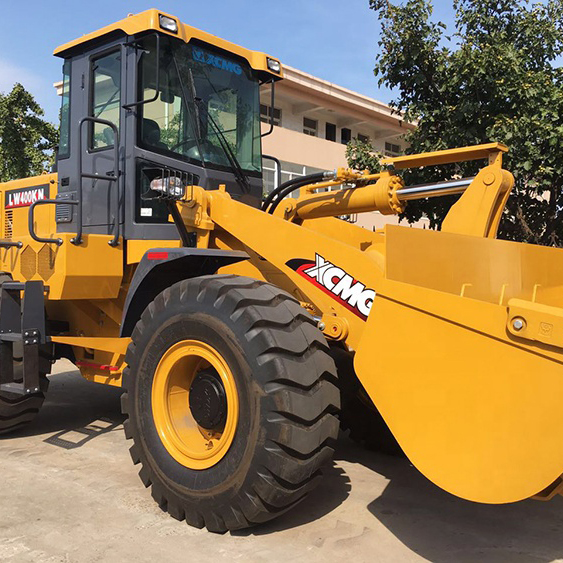

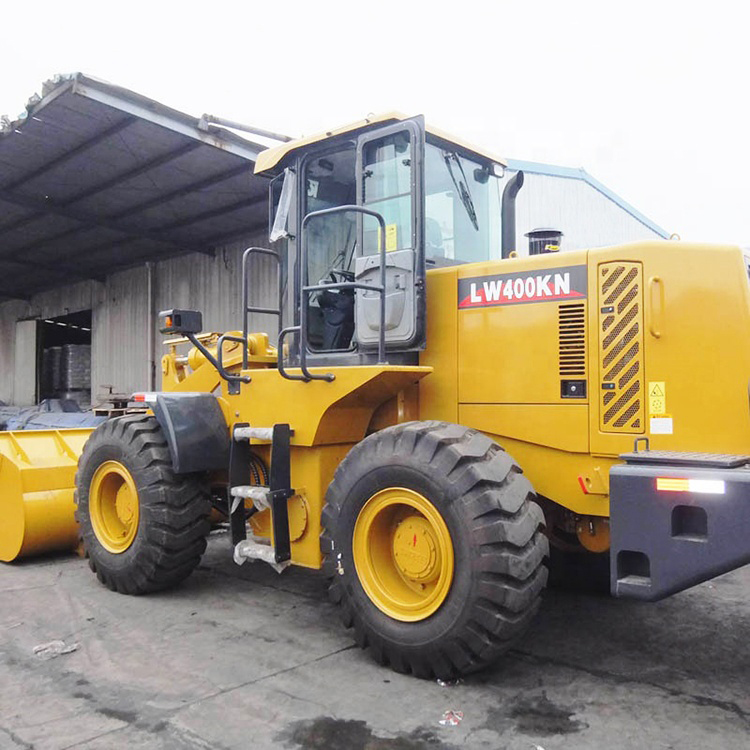

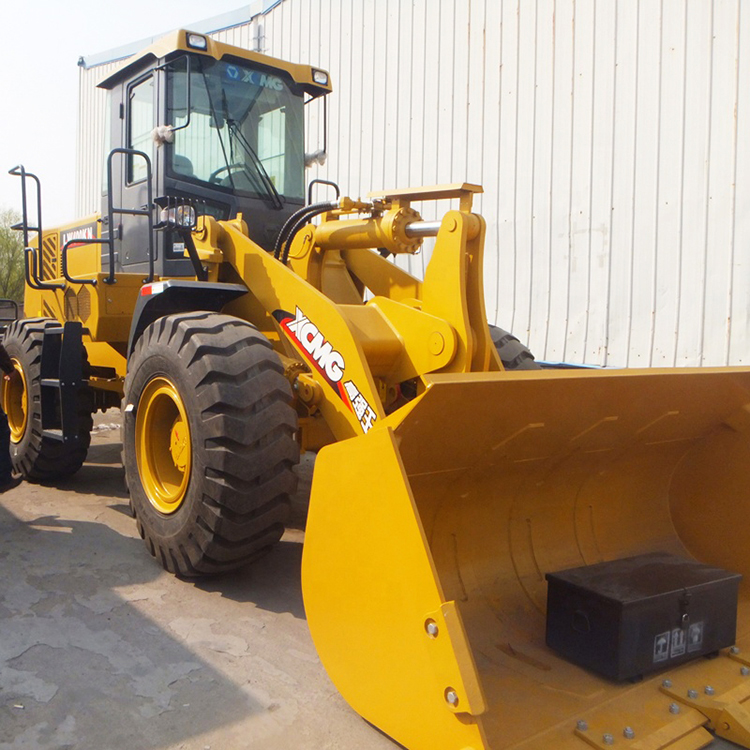

XCMG 4 ton official construction wheel loader LW400KN
High power performance: The 12t industry-leading powerful bucket breakout force guarantees
outstanding adaptability under diversified severe working conditions.
High working stability: 3,100mm extended wheelbase, 7,978mm extended machine body, and rear-mounted diesel tank ensure excellent working stability of the machine.
High loading capacity: The standard bucket of up to 2.4m3 capacity is leading the industry like products.
Fast motions: The total cycle time is only 10.5s, leading the industry.
Long life: The double-stage dust-proof measure is applied for critical hinged joints to ensure low wear and long life.







Item |
Unit |
Parameter value |
Rated bucket capacity |
m3 |
2.4 |
Rated load |
kg |
4000 |
Operating weight |
kg |
14500+200 |
Max.traction force |
kN |
123 |
Max.breakout force |
kN |
120 |
Tyre center (Min. turn radius) |
mm |
5946 |
Boom lifting time |
s |
5.5 |
Total cycling time |
s |
10.5 |
Tipping load |
kg |
8300 |
Model |
SC80D |
|
Rated power |
kw |
125 |
Rated rotary speed |
r/min |
2200 |
Forward I Gear |
km/h |
0~11 |
Forward II Gear |
km/h |
0~35 |
Backward |
km/h |
0~15 |
