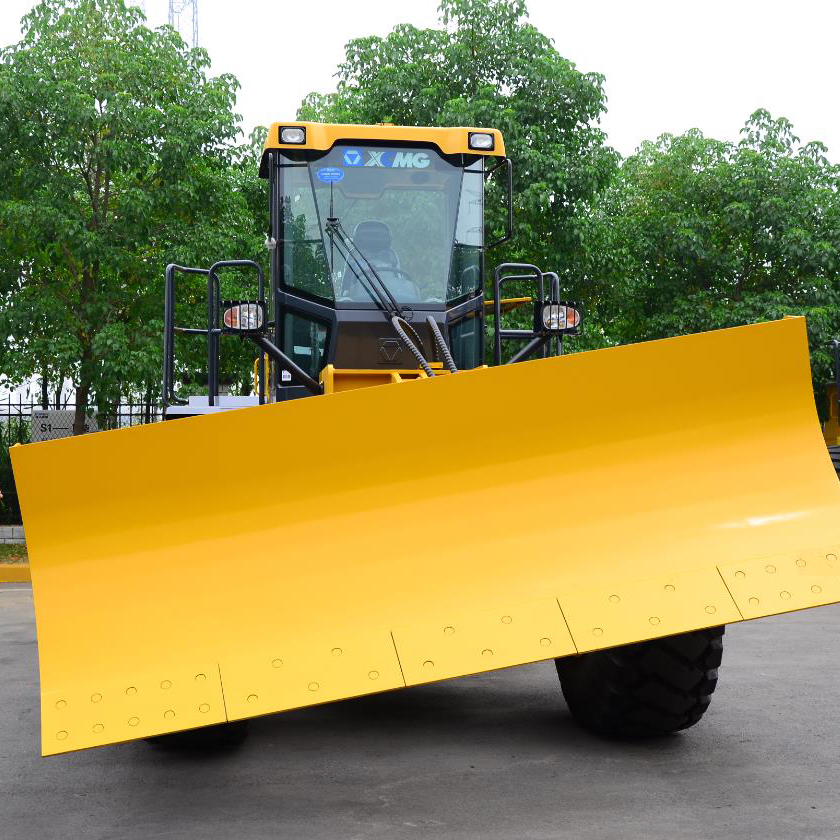

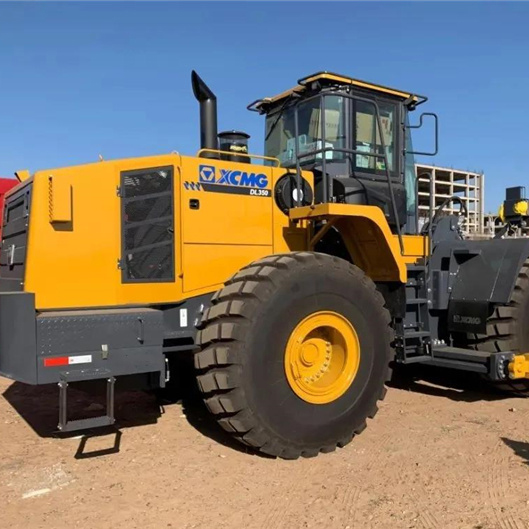

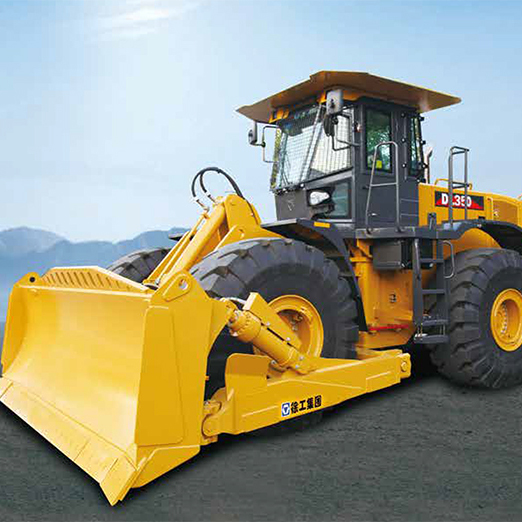

XCMG 30ton official DL350 560HP Wheel Bulldozer
The imported Cummins electronic control, direct injection, turbocharged engine equipped features high torque reserve coefficient, excellent energy-conservation and environment-friendliness, and strong power.
The split transmission and torque converter system, single-turbine three-element torque converter, and AMT full automatic electronic control transmission feature simple structure and higher reliability.
The full-hydraulic maintenance-free wet drive axle features fast response, stable braking, and high safety and reliability.
The XCMG new FOPS & ROPS pressurized cab features large space, broad visual field, excellent sealing performance, low noise, and high safety and comfort.
The load-sensing variable hydraulic system reduces the fuel consumption by 7% and prolongs the lives of parts.
The double-pump confluence technology improves the working efficiency and reduces the energy loss.
The electronic control joysticks feature convenient and flexible operations and incorporate the blade floating function. * The advanced electronic monitoring system incorporates the sound and light warning devices.
|

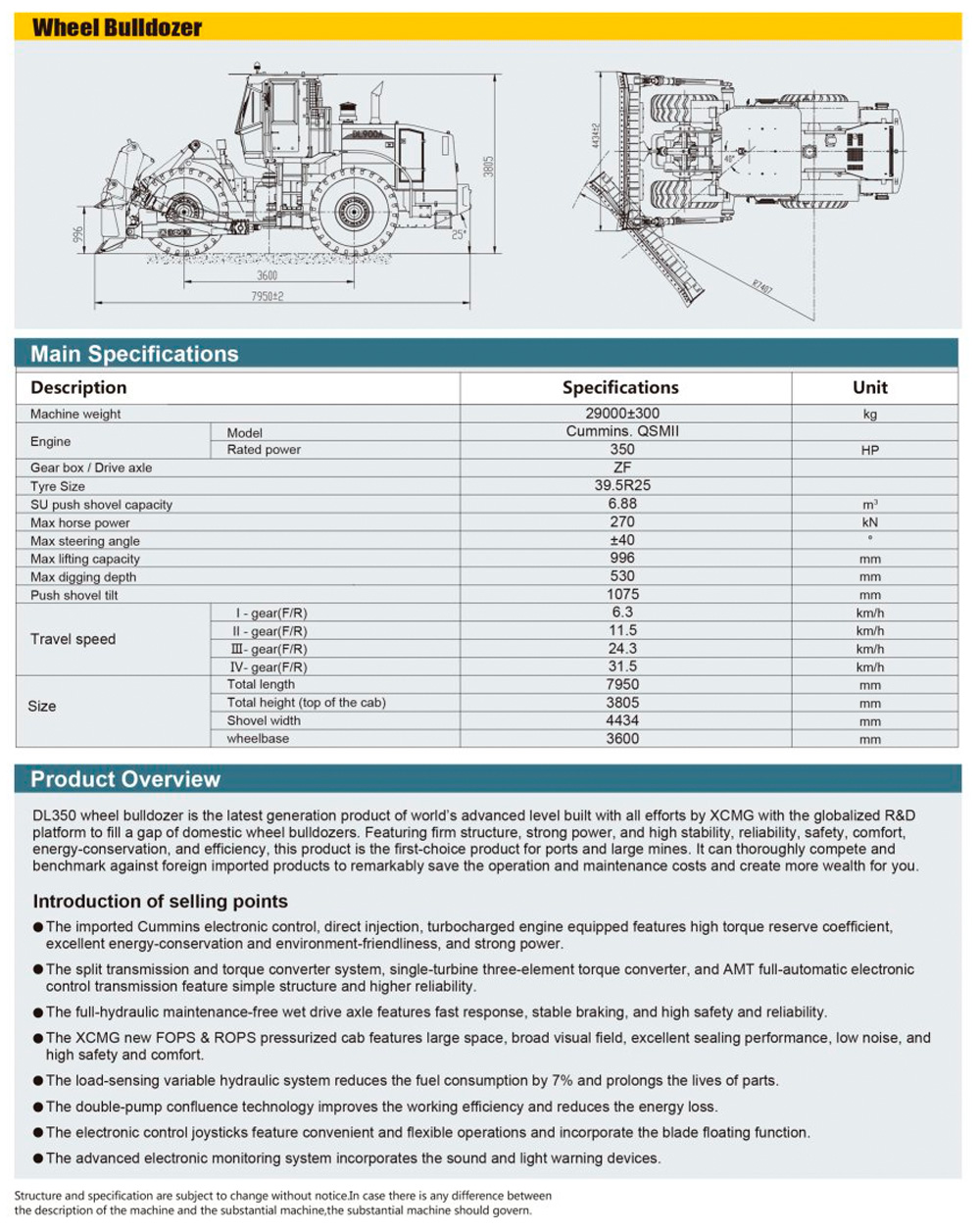

Description |
Specifications |
Unit |
|
|
Machine weight |
29000±300 |
kg |
|
|
Engine |
Model |
Cummins. QSMII |
|
|
Rated power |
350 |
HP |
|
|
Gear box / Drive axle |
ZF |
||
|
Tyre Size |
39.5R25 |
||
|
SU push shovel capacity |
6.88 |
m3 |
|
|
Max horse power |
270 |
kN |
|
|
Max steering angle |
±40 |
° |
|
|
Max lifting capacity |
996 |
mm |
|
|
Max digging depth |
530 |
mm |
|
|
Push shovel tilt |
1075 |
mm |
|
|
Travel speed |
I - gear(F/R) |
6.3 |
km/h |
|
II - gear(F/R) |
11.5 |
km/h |
|
|
Ⅲ- gear(F/R) |
24.3 |
km/h |
|
|
Ⅳ- gear(F/R) |
31.5 |
km/h |
|
|
Size |
Total length |
7950 |
mm |
|
Total height (top of the cab) |
3805 |
mm |
|
|
Shovel width |
4434 |
mm |
|
|
wheelbase |
3600 |
mm |
|
