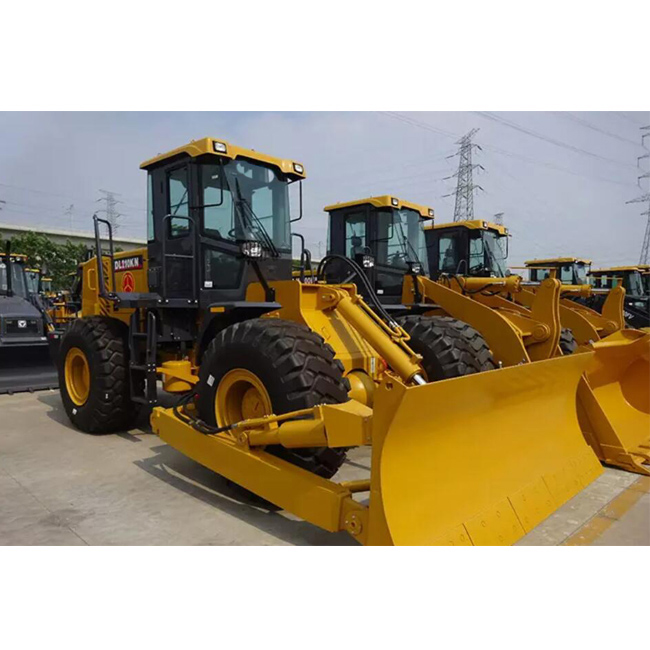

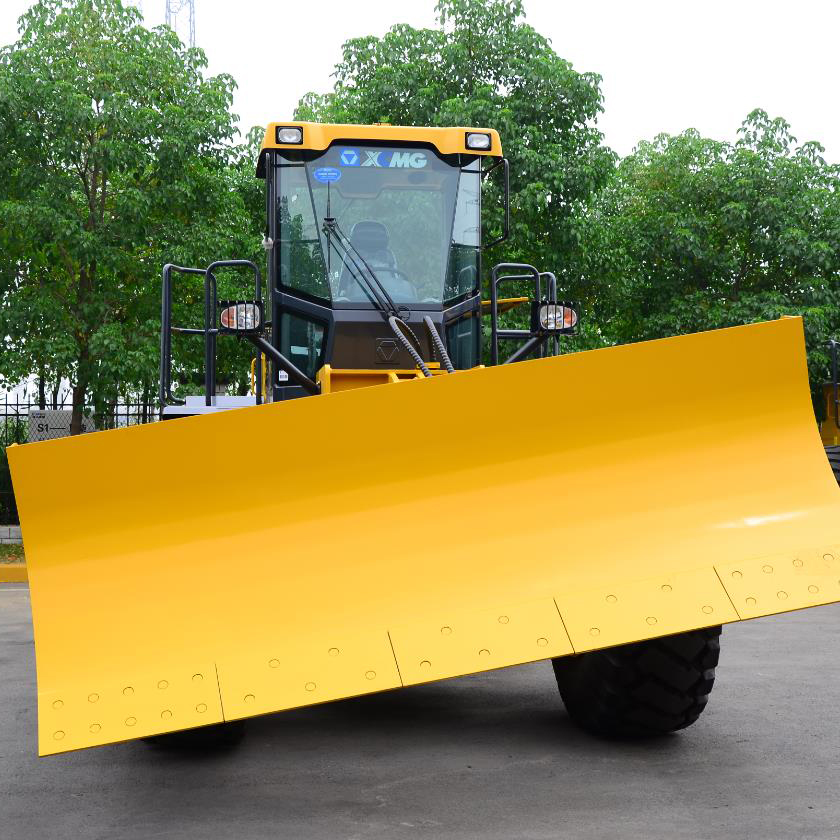

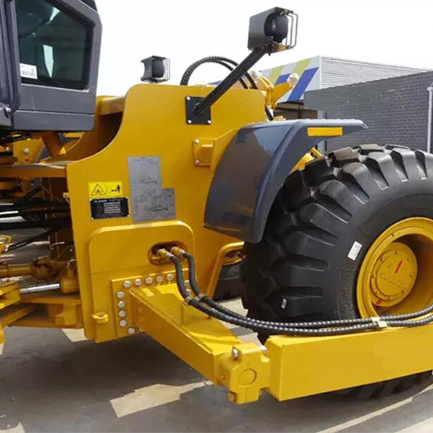

XCMG 50ton official DL560 350HP Wheel Bulldozer

Introduction:

DL560 wheel bulldozer is the latest generation product of world’s advanced level built with all efforts by XCMG with the globalized R&D platform to fill a gap of domestic wheel bulldozers. Featuring firm structure, strong power, and high stability, reliability, safety, comfort, energy-conservation, and efficiency, this product is the first-choice product for ports and large mines.


Product Detail

Product Tags

Video

Technical Characteristics

The imported Cummins electronic control, direct injection, turbocharged engine equipped features high torque reserve coefficient, excellent energy-conservation and environment-friendliness, and strong power.

The split transmission and torque converter system, single-turbine three-element torque converter, and AMT full-automatic electronic control transmission feature simple structure and higher reliability.

The full-hydraulic maintenance-free wet drive axle features fast response, stable braking, and high safety and reliability.

The XCMG new FOPS & ROPS pressurized cab features large space, broad visual field, excellent sealing performance, low noise, and high safety and comfort.

The load-sensing variable hydraulic system reduces the fuel consumption by 7% and prolongs the lives of parts.

The double-pump confluence technology improves the working efficiency and reduces the energy loss.

The electronic control joysticks feature convenient and flexible operations and incorporate the blade floating function. 8.The advanced electronic monitoring system incorporates the sound and light warning devices.

1
2

Specification

Description

Specifications

Unit

Machine weight

50000±500

kg

Engine

Model

QSK19



Rated power

560

HP

Gear box / Drive axle

DANA/KESSLER



Tyre Size

35/65 R33



SU push shovel capacity

7.9

m3

Max horse power

410

kN

Max steering angle

38

°

Max lifting capacity

1290

mm

Max digging depth

535

mm

Push shovel tilt

1325

mm

Travel speed

I - gear(F/R)

5.8

km/h

II - gear(F/R)

10.3

km/h

Ⅲ- gear(F/R)

17.6

km/h

Ⅳ- gear(F/R)

30.1

km/h

Size

Total length

9799±2

mm

Total height (top of the cab)

4313

mm

Shovel width

5074±2

mm

wheelbase

4500

mm
