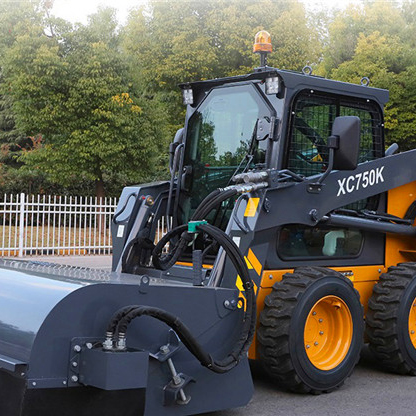

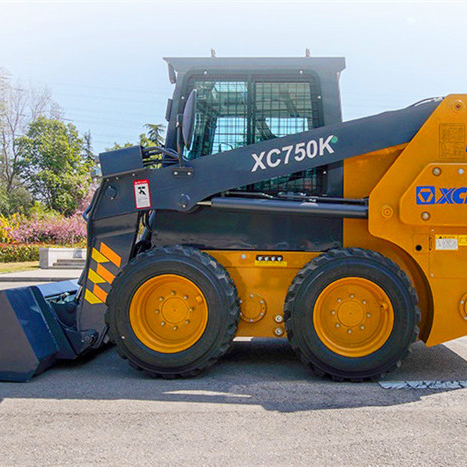

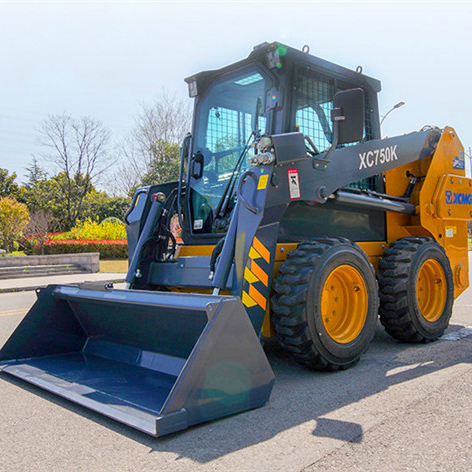

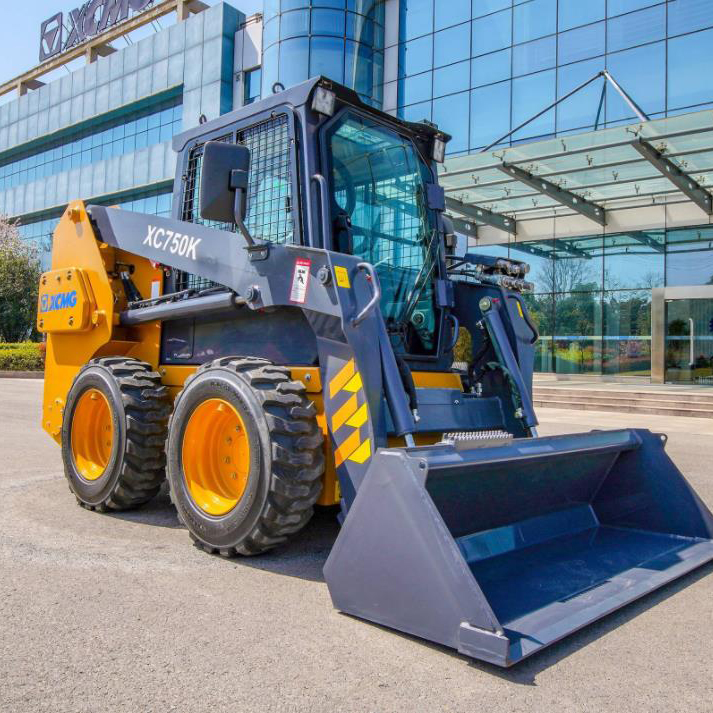

XCMG 3ton Official XC750K Skid Steer Loader
1. Strong power and high energy-conservation and efficiency * The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency. * The double speed motor with maximum speed up to 18km/h is installed to achieve high working efficiency. It can complete the site transfer rapidly and efficiently. * It can respond faster to the needs of emergency working conditions such as rapid snow removing. * The hydrostatic drive device is applied to realize quick change of appropriate attachments in the operation site.
2. Platform design for high reliability and firmness * The serialization design is applied for the frame based on the skid- steer tonnage to realize high structural reliability. All critical structural parts are optimized by finite element analysis to realize reasonable stress distribution. * The imported high-quality hydraulic parts are applied to realize higher reliability.
3. Multiple Applications Inclined sweeper/ Snow plough/ Rotary tiller/ Closed sweeper/ Planer/ Manhole cover planer/ Breaking hammer/ Twist drill/ Continuous ditcher.








Description |
Unit |
XC750K |
|
Engine |
Rated power |
HP(Kw)/rpm |
67(50)/2300 |
Emission standard |
Chinese-III |
||
Working hydraulic system |
Standard flow |
L/min |
75.9 |
Optional high flow |
L/min |
119.6 |
|
System pressure |
bar |
210 |
|
Traveling System |
Maximum traveling speed |
Km/h |
12 |
Optional two speed, maximum traveling speed |
Km/h |
18 |
|
Tire specification |
10-16.5 |
||
Control system |
Operating weight |
Kg |
3200 |
Loading performance |
Rated load |
Kg |
900 |
Static tipping load |
Kg |
1800 |
|
Breakout force |
kN |
20 |
|
Overall dimensions |
Cab roof height |
mm |
1950 |
Length with bucket |
mm |
3330 |
|
Dumping angle |
° |
40 |
|
Maximum dumping height |
mm |
2375 |
|
Dumping range |
mm |
575 |
|
Wheelbase |
mm |
1027 |
|
Departure angle |
° |
25 |
|
Ground clearance |
mm |
185 |
|
Wheel tread |
mm |
1380 |
|
Bucket edge width |
mm |
1800 |
|
Bucket capacity (High heap) |
m3 |
0.45 |
