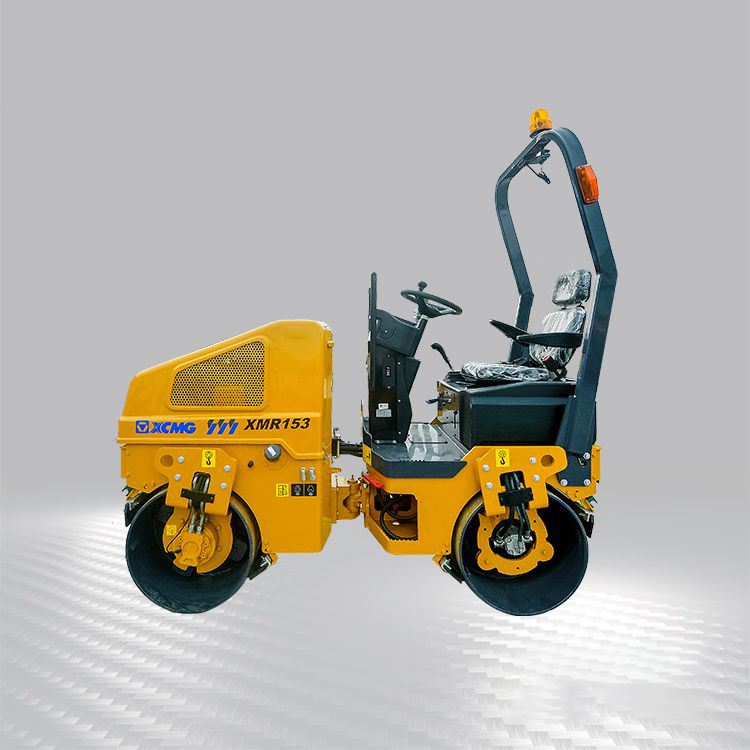

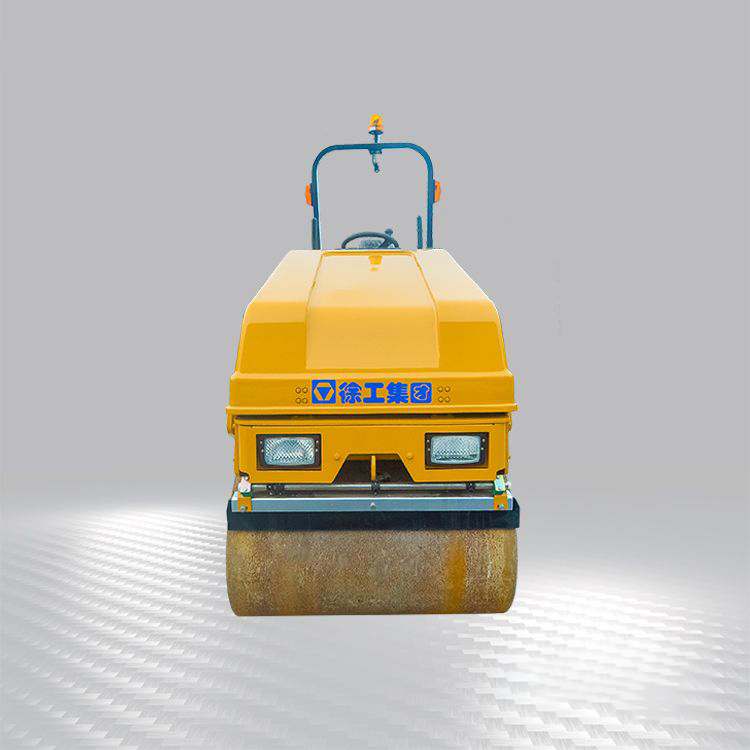

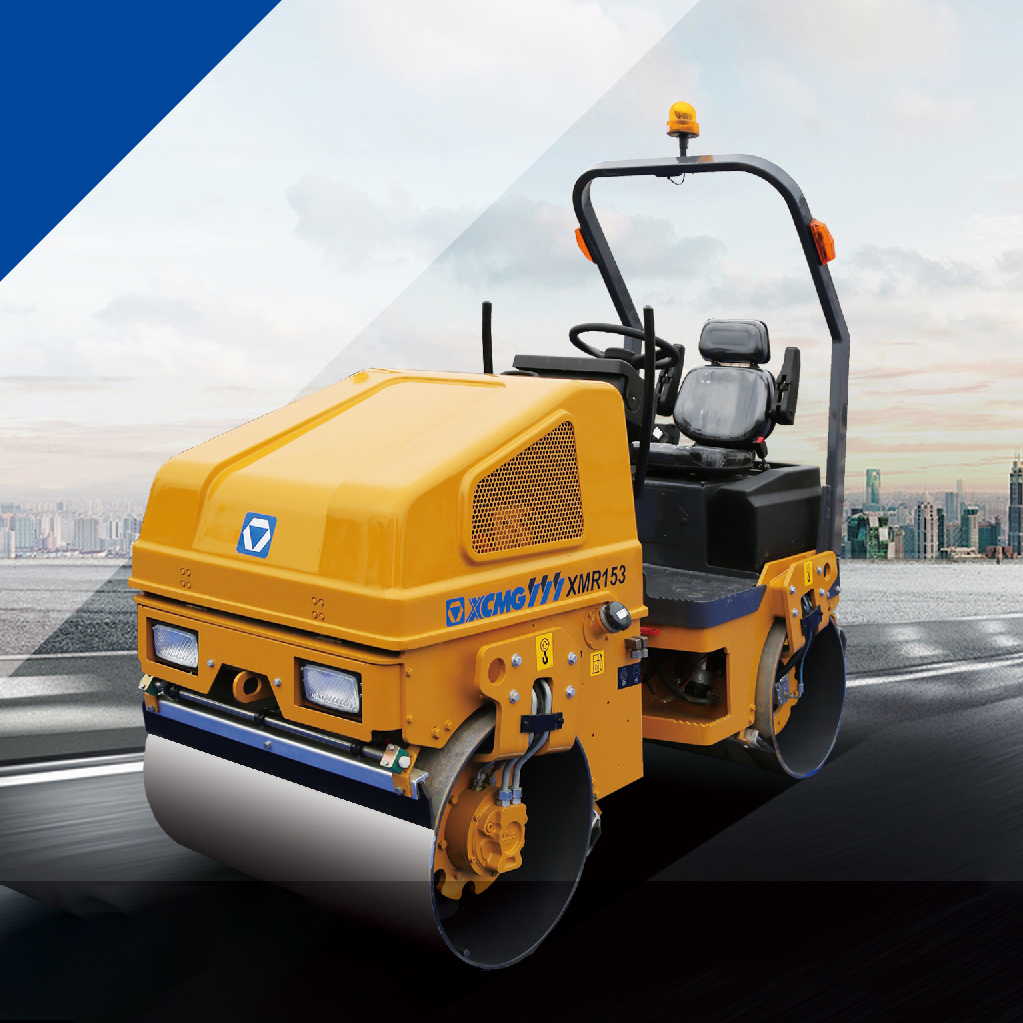

XCMG 1.5ton Official XMR153 Road Roller

Introduction:

XMR153 is a light vibratory roller with operating weight of 1.68 tons. This machine is suitable for surface and edge compaction construction for asphalt engineering, cement engineering and So on, also suitable for sub-base and base, sand and gravel material compaction work, is the idealist compaction machinery for all sorts of parking lot construction, road, sidewalks and bike-way compaction, as well as a variety of road maintenance engineering.

Inquiry

Product Detail

Product Tags

Video

Performance Characteristics

Closed hydraulic drive system is adopted to realize step-less speed change.

Brake system uses the neutral position braking, emergency braking and parking brake, short braking distance and high braking torque, ensuring the safety of the product.

The front vision of machine is less than 1 x 0.75 m, rear view without any shade, which provides drivers with a good sight range.

The vibration system can realize the simultaneous vibration and independent vibration of the rear and front drum, and meets the different working conditions.

High frequency vibration and excitation force design, high working efficiency, good compaction effect.

Vibration drum width is larger than frame width, convenient to observe compaction condition of drum edge in the

construction.

Specification

Item	Unit	XMR153
Operating mass	kg	1680
Static linear load (front drum/rear drum)	N/cm	92/92
Range of speed	km/h	0～10.5
Theoretical gradeability	%	30
Minimum turning radius	mm	3050
Minimum ground clearance	mm	235
Wheel base	mm	1550
Steering angle	°	±34
Swing angle	°	±7
Vibrational frequency	Hz	65
Exciting force	kN	17
Drum diameter	mm	582
Drum width	mm	900
Engine rated power	kW	17.6
Engine rated speed	r/min	2500
