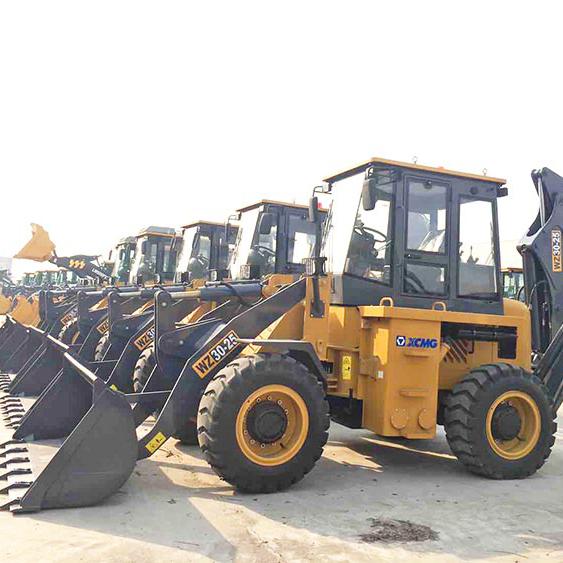

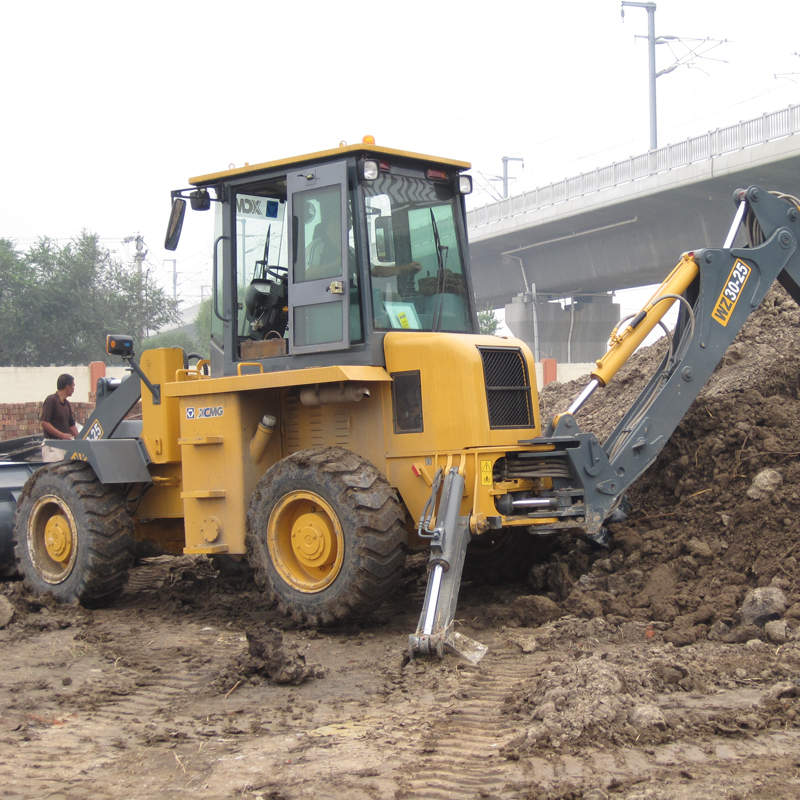

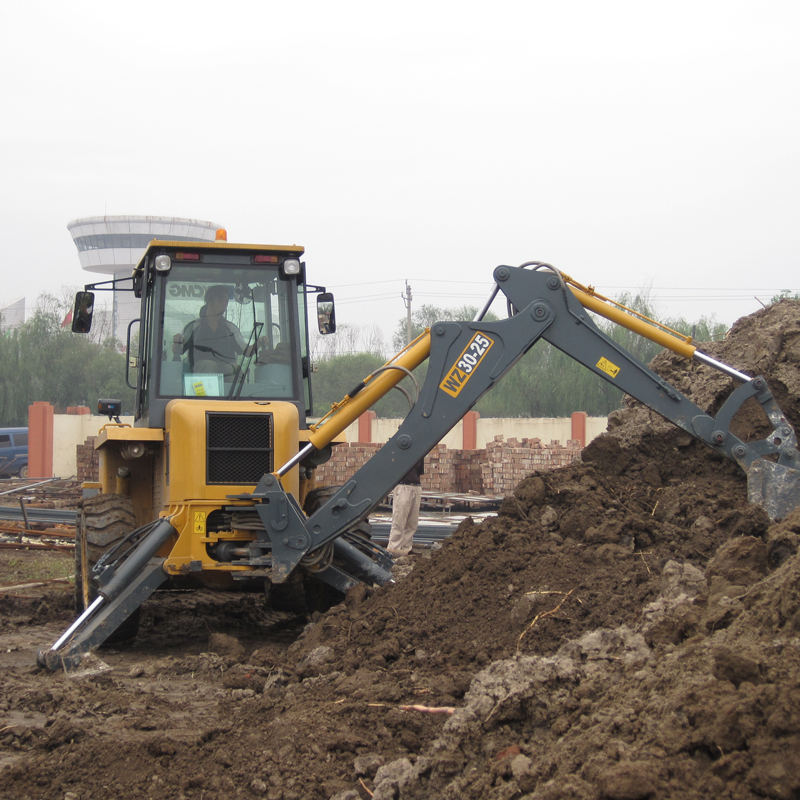

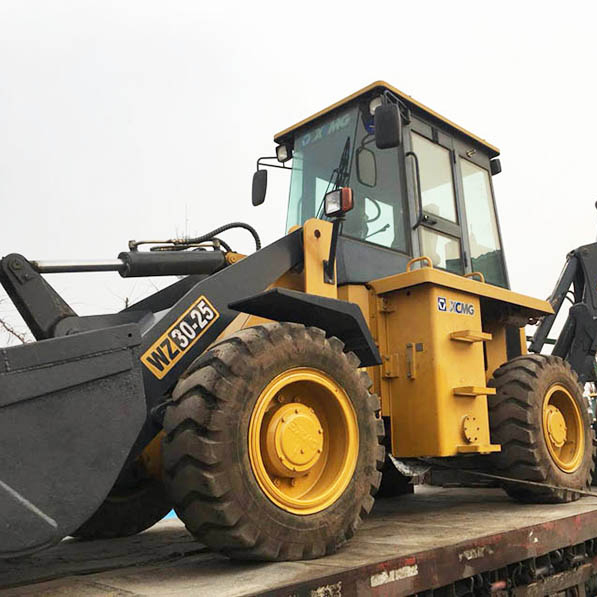

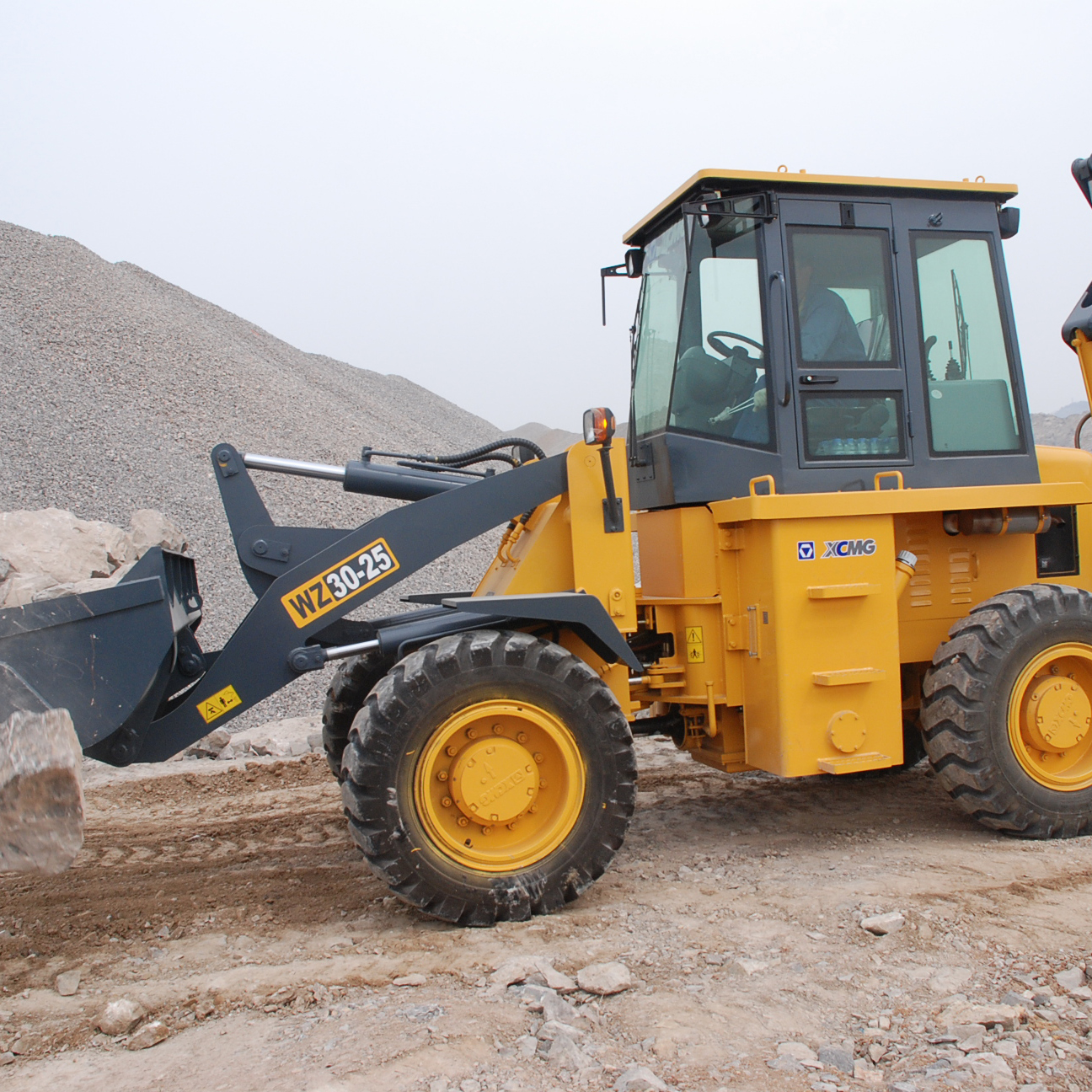

XCMG 2.5 ton WZ30-25 Backhoe Loader
1. The WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine.
2. It is the new generation model of the development based on the same kind product technique in domestic and international.
3. Having adopted four-wheel drive, hydraulic torque converter, hydraulic steering system, hydraulic.

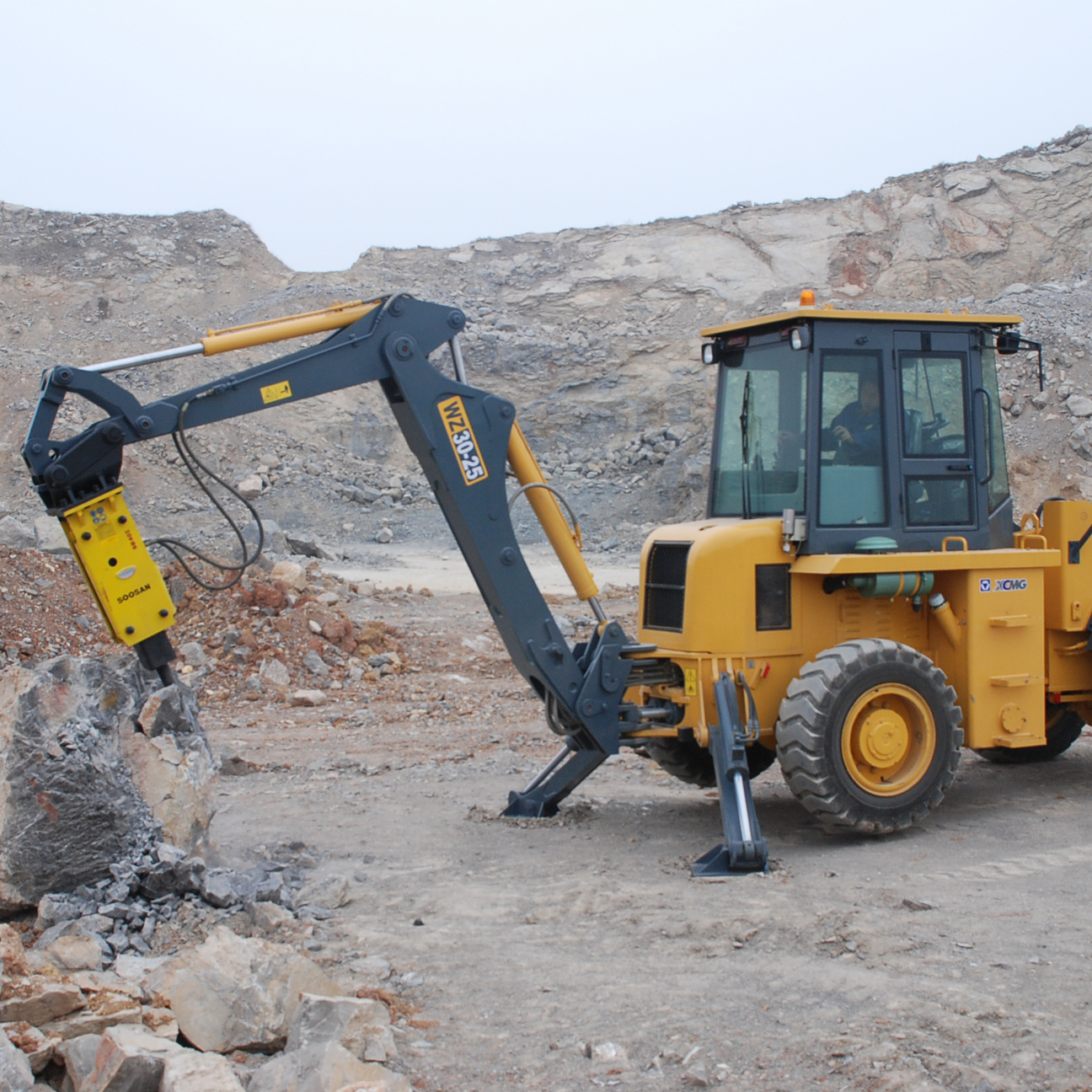

4. It is extensively used in the road maintenance, farms and developments, getting clay for making brick, piping builds, the cable builds, parking and the excavating of the road opens to dig, breaking up.etc.
5. This machine has below characteristics: The Yuchai engine: low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability.
6. The spirit valve control take type brake system and parking brake system move two unite as one,when there is trouble in the gas brake system, it can make in time brake automatically, so it is more safety.

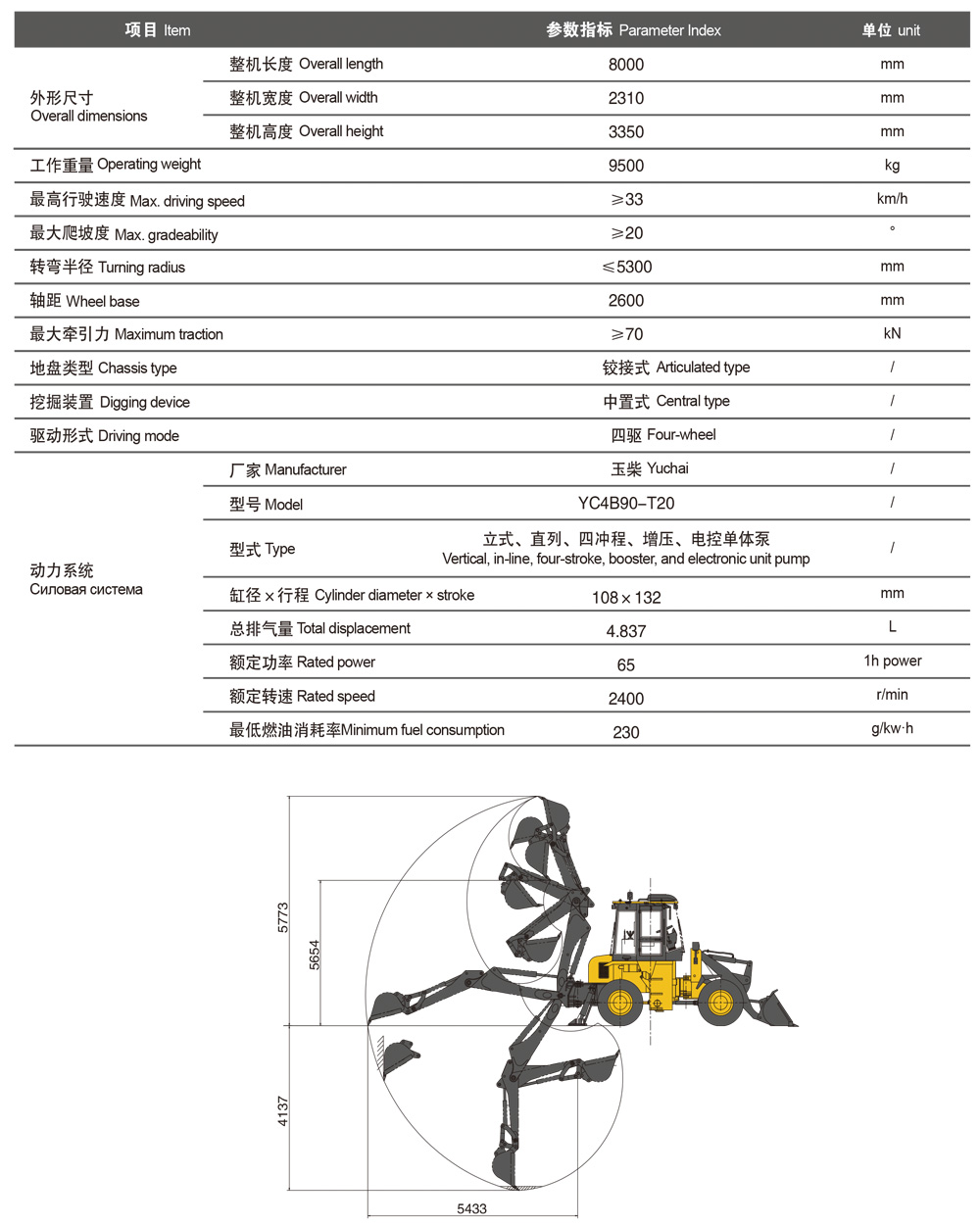

Description |
Unit |
Parameter value |
|
Bucket capacity(heaped) |
m³ |
1.0 |
|

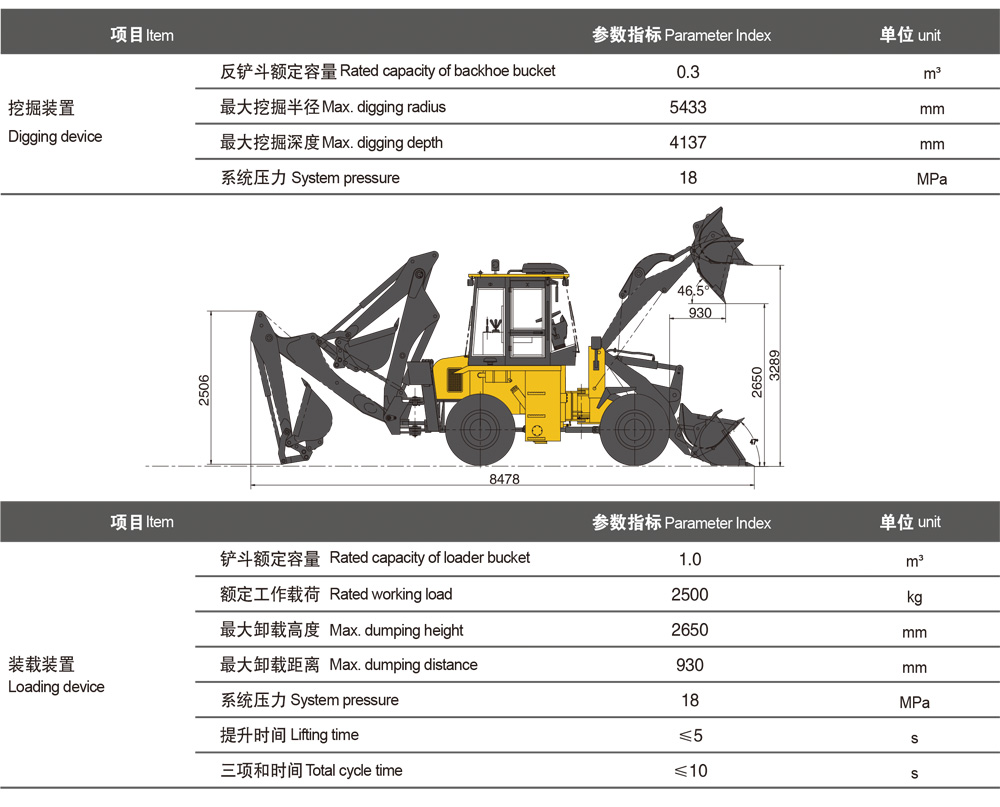

Digger capacity |
m³ |
0.3 |
|
Dumping clearance |
mm |
2650 |
|
Dumping reach |
mm |
930 |
|
Maximum.steering angle |
° |
±35 |
|
Maximum steering angle of dig working device |
° |
±85 |
|
Traceing speed I / II / III / IV |
km/h |
0-6.2 / 0-12 / 0-20 / 0-30 |
|
Back I / II speed |
km/h |
0-8 / 0-28.5 |
|
Diesel Model |
YC4A110-T310/YC41390-T20 |
||
Modality |
4-stroke water-cooled inline type/4-stroke water-cooled inline type |
||
Rated power |
kW |
73.5 (Turbocharged)/65 |
|
Rated speed |
r/min |
2200 |
|
Wheel base |
mm |
2600 |
|
Tread |
mm |
1700 |
|
Tires |
16/70-24 |
||
Maximum digging depth |
mm |
4400 |
|
Maximum digging radium |
mm |
5471 |
|

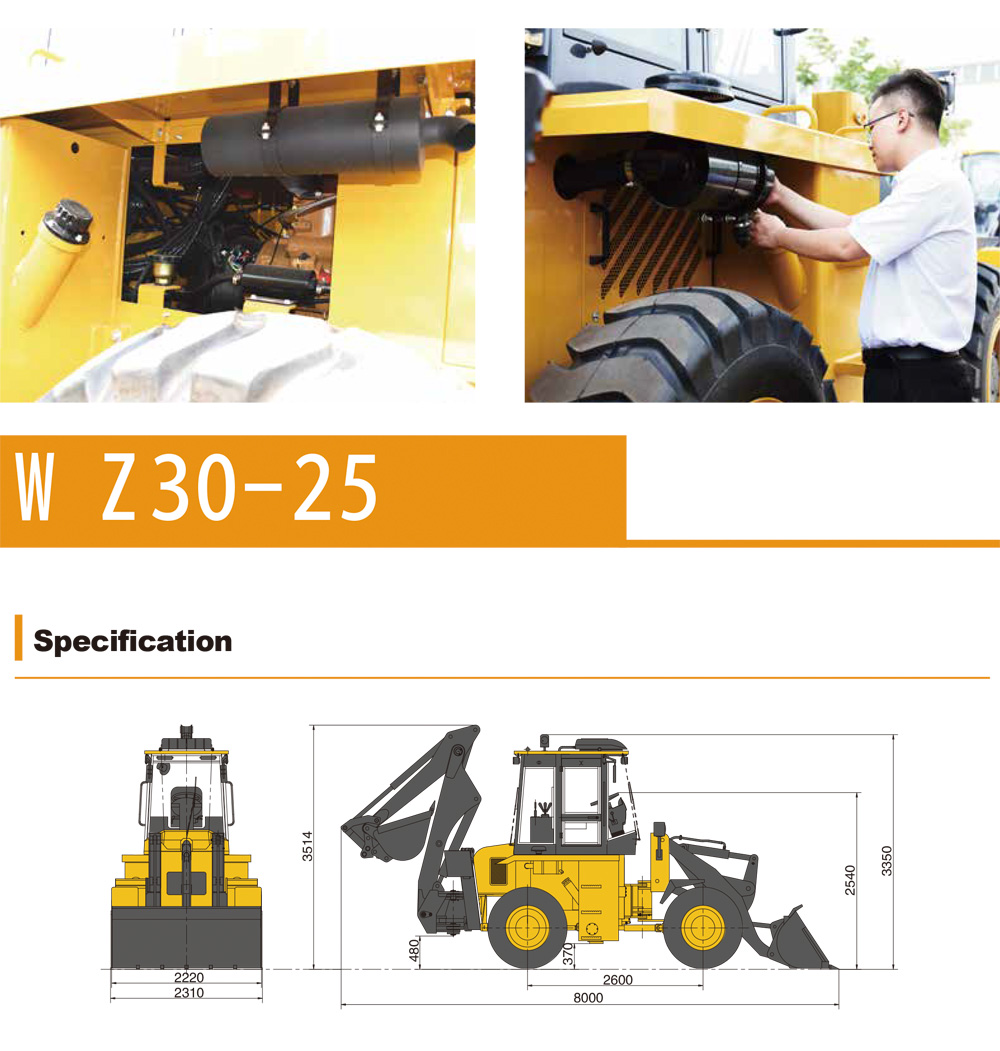

Overall dimensions(L×W×H) |
mm |
8000×2310×3424 |
|
Operating weight |
kg |
9500 |
