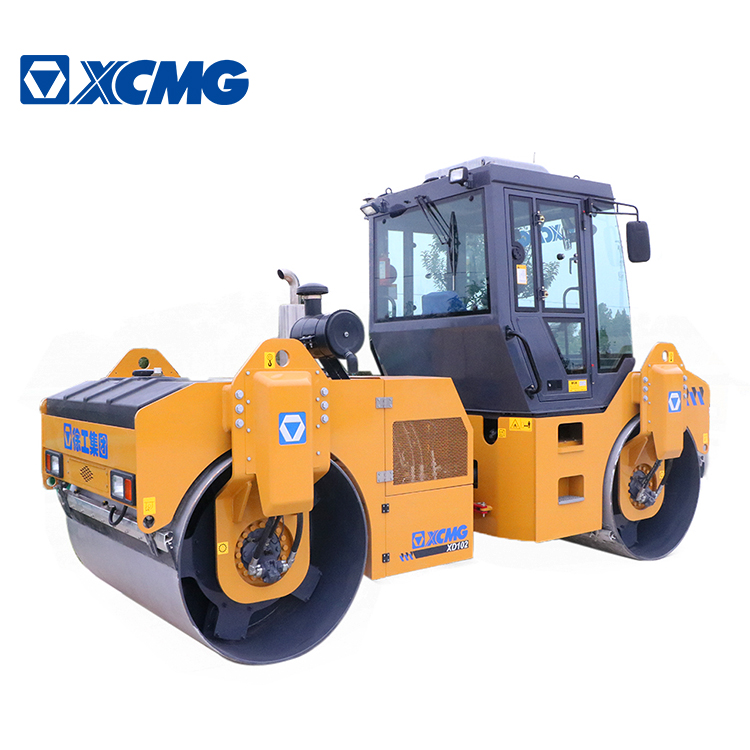

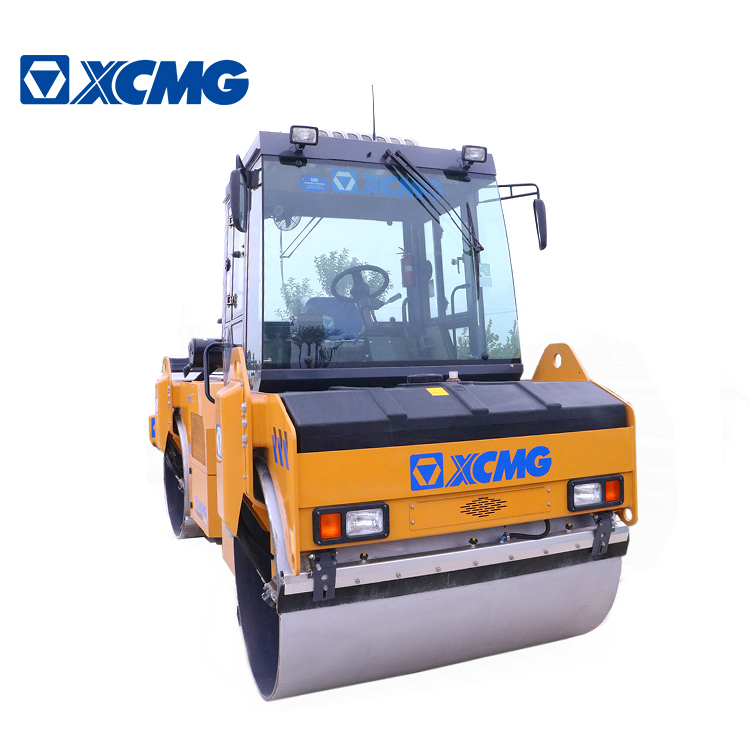

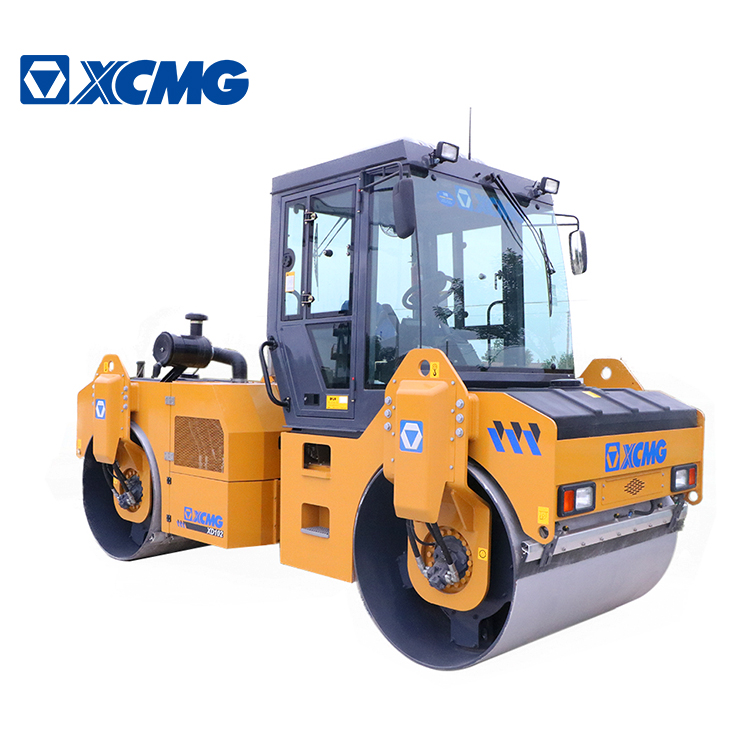

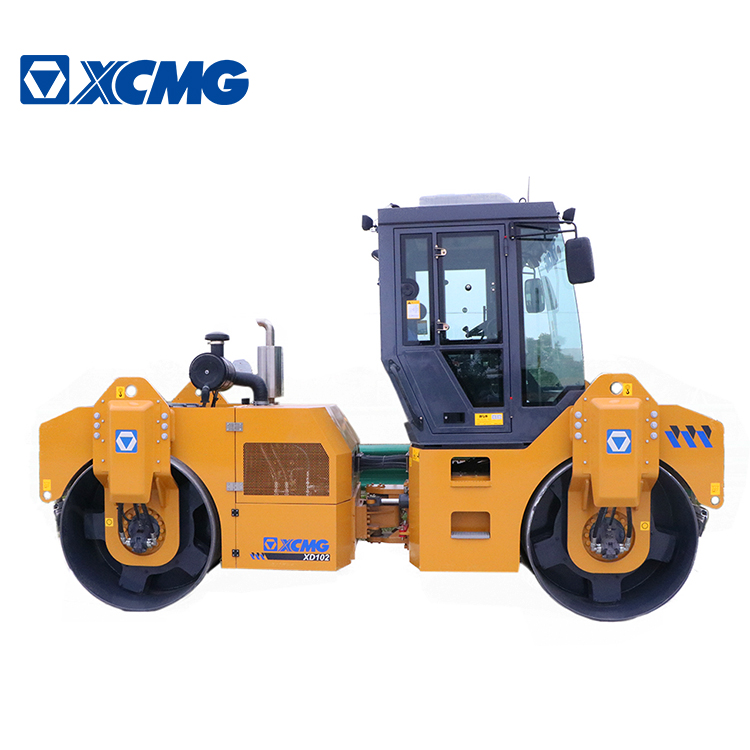

XCMG 10ton XD102 Full Hydraulic Double Drum Vibration Roller

Description |
Unit |
Parameter value |
|
Working weight |
kg |
10000 |
|
Front wheel distribution weight |
kg |
5000 |
|
Rear wheel distribution weight |
kg |
5000 |
|
Static linear load |
N/cm |
292/292 |
|
Nominal amplitude |
mm |
0.40/0.80 |
|
Vibration frequency |
Hz |
48/45 |
|
Exciting force (high frequency/low frequency) |
kN |
60/120 |
|
Vibration wheel size |
mm |
1150×1750 |
|
Speed range |
km/h |
0-9.5 |
|
Theoretical gradeability |
% |
30 |
|
Minimum turning radius(in/out) |
mm |
4065/5815 |
|
Swing angle |
|
±8° |
|
Steering angle |
|
±38° |
|
Engine |
Model |
|
DEUTZBF4M2012-10T3R |
Type |
|
Inline four-cylinder pressurized water-cooled |
|
Rated speed |
r/min |
2300 |
|
Rated power |
kW |
74.9 |
