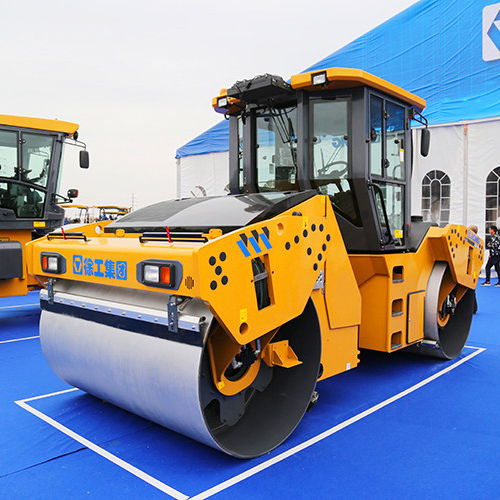

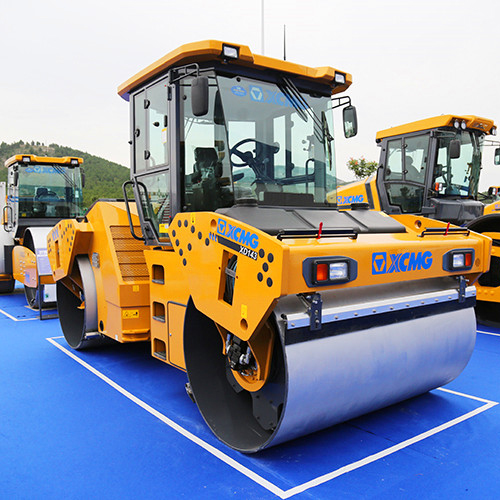

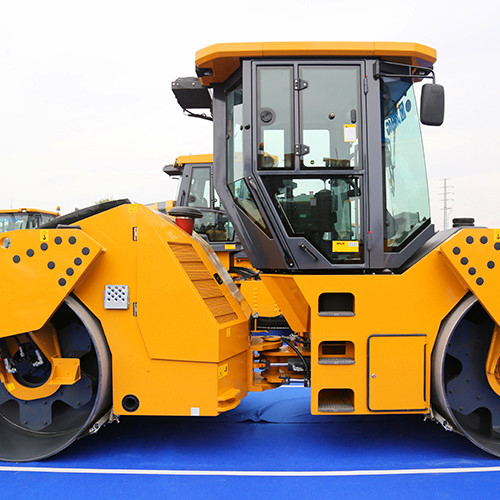

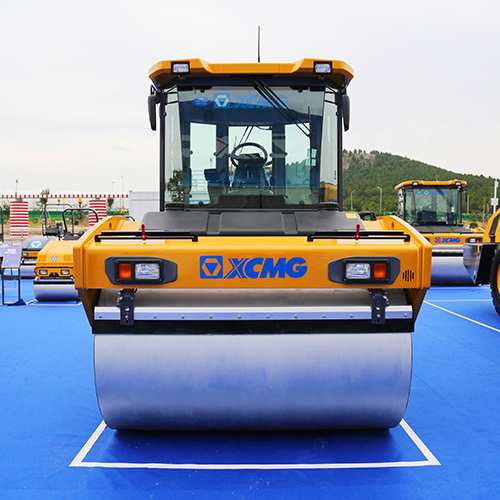

XCMG 14ton XD143 Road Roller Compactor Machine

Introduction:

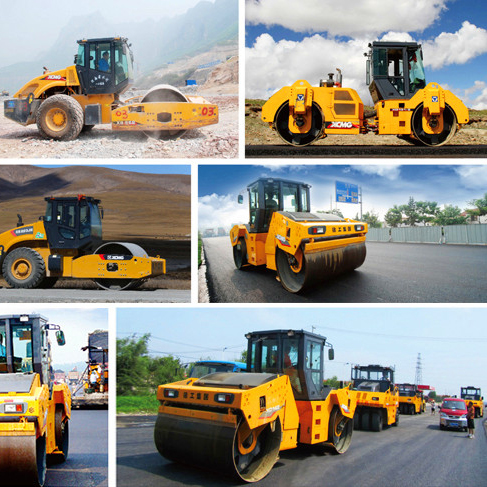

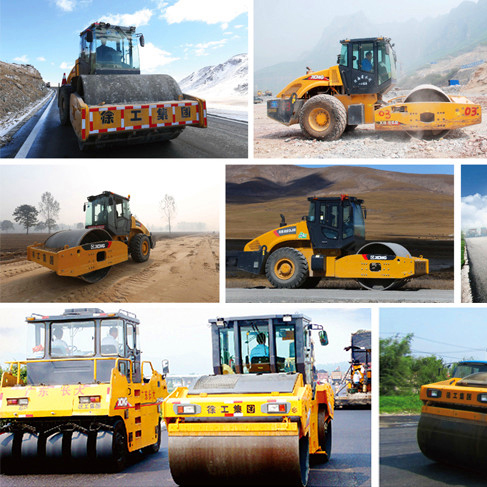

XD143 Vibratory roller is asphalt compaction machinery product which is independent researched and developed by XCMG road machinery business division based on years of experience in compaction machinery research and development. It is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of roadbed and sub-base material, wide application scope.


Product Detail

Product Tags

Video

Performance Characteristics

The console can rotate about 35 degrees, improving the driving comfort.

The steering wheel can adjust angle according to the need of the driver.

Control handle, display, etc. are arranged on the right side to broaden the front view. * Speed frequency management system guides the user to compaction operation.

Guiding the user to improve operation efficiency.

The vibration drum realizes the center of four-in-one combination.

Preventing the over-compaction and less-compaction.

1
2

Specification

Parameter

Unit

XD143

Weight distribution

Working weight

kg

14000

Front wheel distribution weight

7000

Rear wheel distribution weight

7000

Maneuverability

Speed range

km/h

0-6 / 0-12

Theoretical gradeability

%

35

Minimum turning radius (in/out)

mm

4800/6930

Largest amount of crab

mm

±160

Swing angle

°

±8°

Steering angle

°

±35°

Compaction performance

Static linear load

N/cm

322/322

Nominal amplitude

mm

0.35/0.85

Vibration frequency

Hz

55/45

Exciting force (high frequency/low frequency)

kN

98/158

Engine

rated power

kw

98

rated speed

r/min

2300
