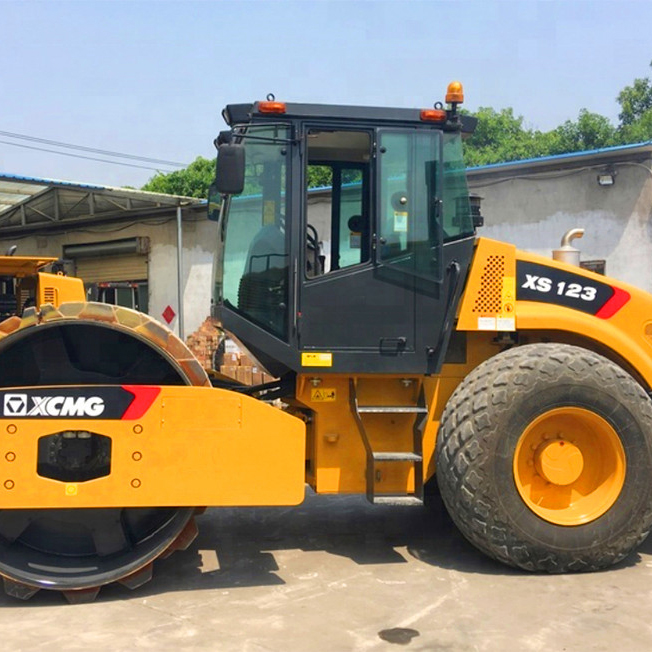

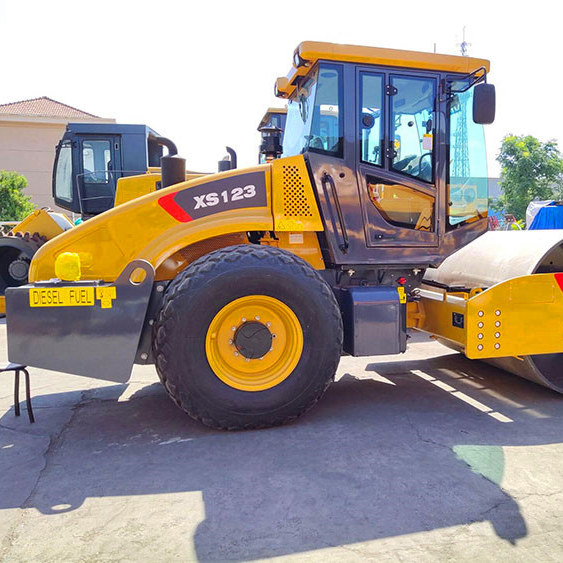

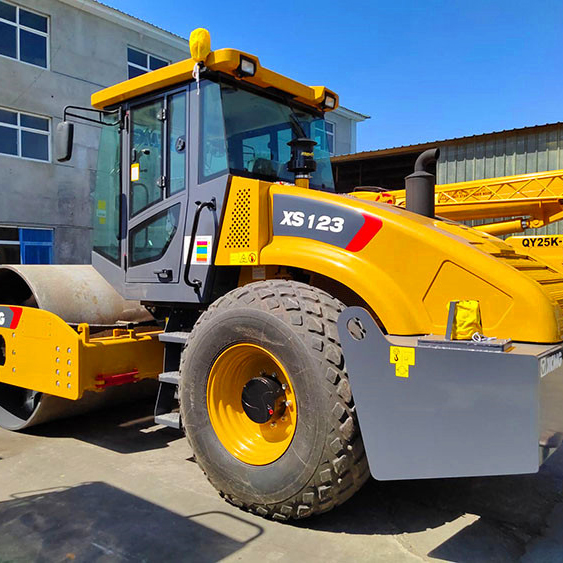

XCMG XS123H 12 ton new vibratory road roller soil compactor machine
1. Hydraulic system :
Adopt imported closed hydraulic drive system com- posed of variable displacement pump and motor to ensure better drive performance and gradeability.
Two gears infinitely variable speeds to ensure optimized working speeds under different working conditions.
2. Cummins engine Equipped with Cummins electrical control en- gine,water-cooled, turbocharged with big power reservation, low oil consumption,small noises. Europe stage III emission standard.
3. Braking system Braking system is made up with drive axle, wet type brakes at front drum speed reducer, and brake of closed hydraulic system. It owns travelling,parking, and emergency braking functions to ensure driving safety.
Description |
Unit |
Parameter value |
|
Work weight |
kg |
12000 |
|
Front wheel mass distribution |
kg |
6700 |
|
Rear wheel mass distribution |
kg |
5300 |
|
Static linear pressure |
N/cm |
308 |
|
Vibration frequency |
Hz |
30/35 |
|
Nominal amplitude |
mm |
1.8/0.9 |
|
Exciting force |
kN |
280/190 |
|
Speed range |
km/h |
0-10.4 |
|
Wheelbase |
mm |
3010 |
|
Compaction width |
mm |
2130 |
|
Theoretical gradeability |
% |
45 |
|
Minimum turning radius |
mm |
6800 |
|
Vibratory drum diameter |
mm |
1523 |
|
Minimum ground clearance |
mm |
417 |
|
Engine |
Rated speed |
r/min |
2200 |
Rated power |
kW |
93 |
|
Dimensions |
mm |
5940×2300×3150 |
