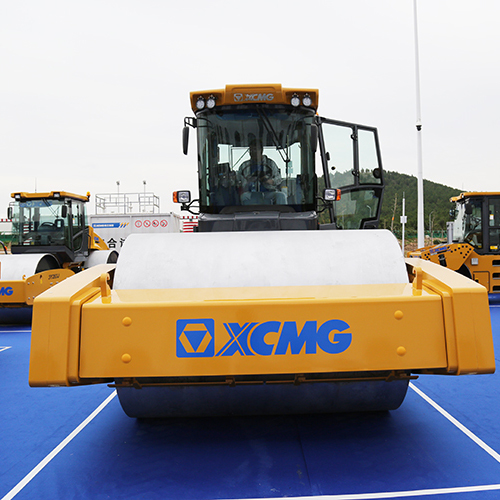

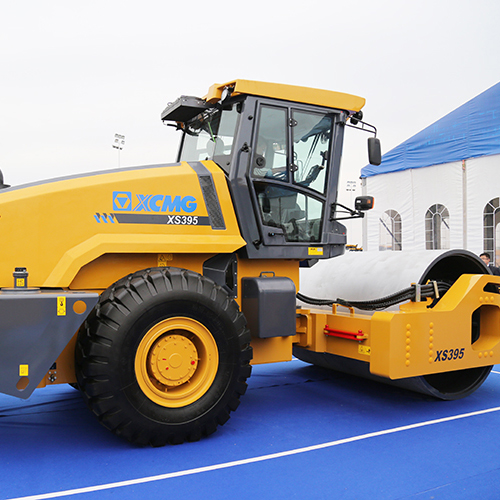

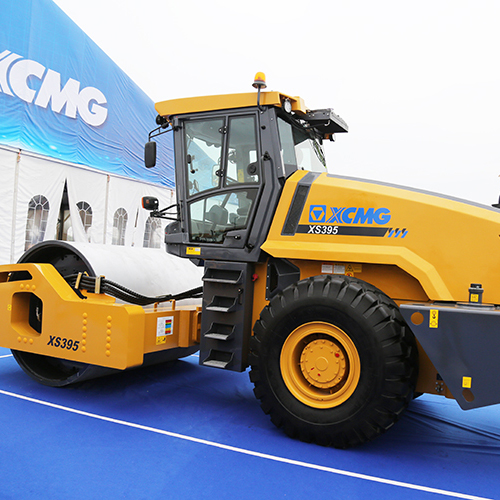

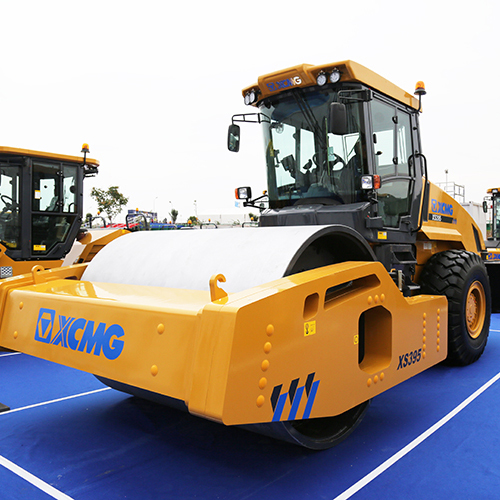

XCMG XS395 39 ton Full Hydraulic Single Drum Vibratory Soil Compactor Road Roller
The closed hydraulic drive system consisting of a single pump and two motors with larger displacement, a long-life reducer with larger torque output and a two-variable motor achieves the driving requirements of 39-ton roller. The front and rear wheels are fully driven to ensure that the roller has good driving performance and climbing ability.
Domestic heavy-duty driving axle, with strong bearing capacity and high reliability, can ensure that the roller can exert its required maximum gravity under various working conditions.
Dual-frequency, double-amplitude, scientific and reasonable static line load and exciting force configuration to ensure effective compaction of different types of laminates with different thickness.
|
Type |
Unit |
XS395 |
|
Operating weight |
kg |
39000 |
|
Load on front drum |
kg |
26000 |
|
Load on rear wheels |
kg |
13000 |
|
Static linear load |
N/cm |
1065 |
|
Vibration frequency(Low/High) |
Hz |
31/26 |
|
Nominal amplitude(High/Low) |
mm |
1.2/2.3 |
|
Excitation force(High/Low) |
KN |
590/800 |
|
Travel speed |
km/h |
0~10 |
|
Steering angle |
° |
±33 |
|
Swing angle |
° |
±12 |
|
Theoretical gradeability |
% |
45 |
|
Min. external turning radius |
mm |
7060 |
|
Engine power |
kw |
276 |
|
Rated engine speed |
r/min |
2200 |
