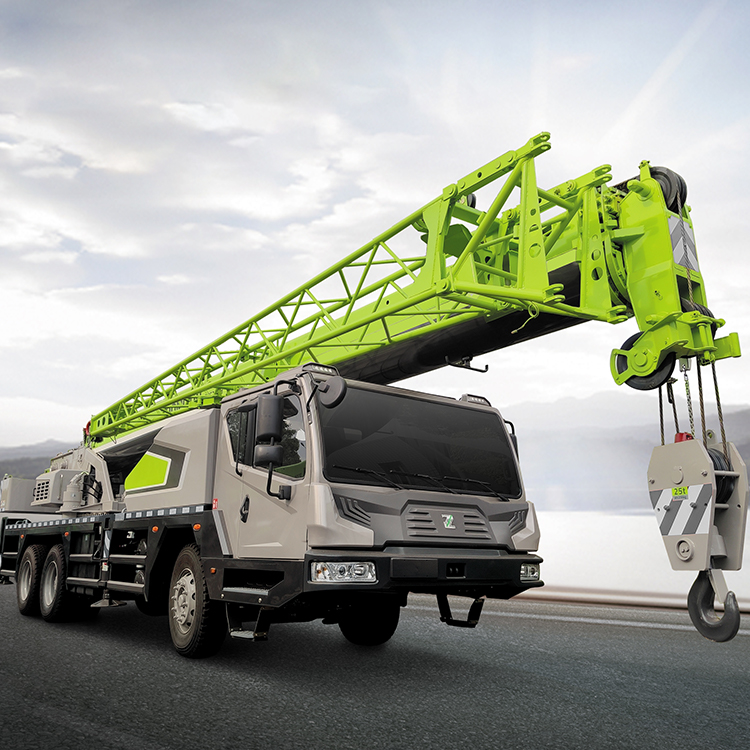

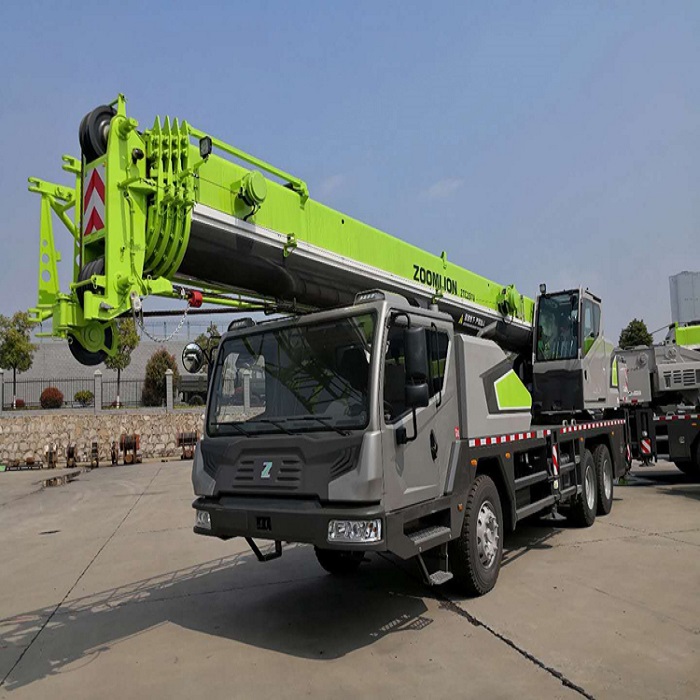

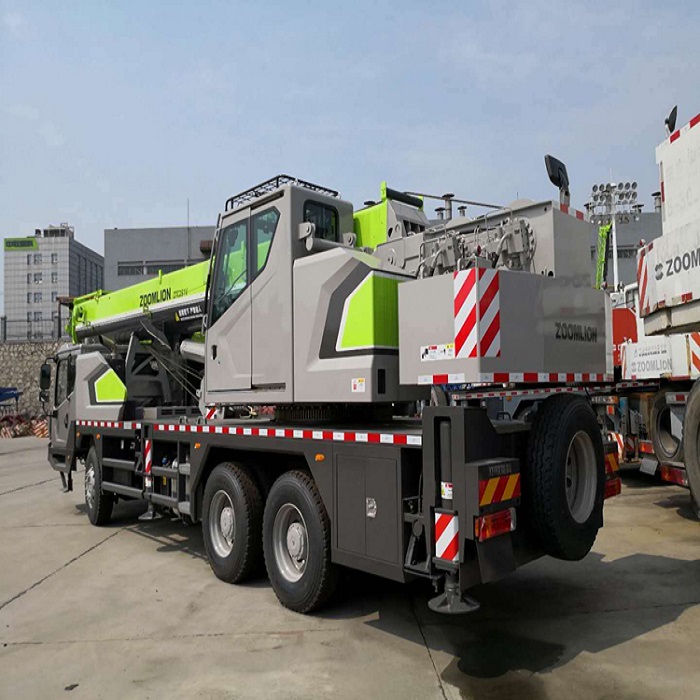

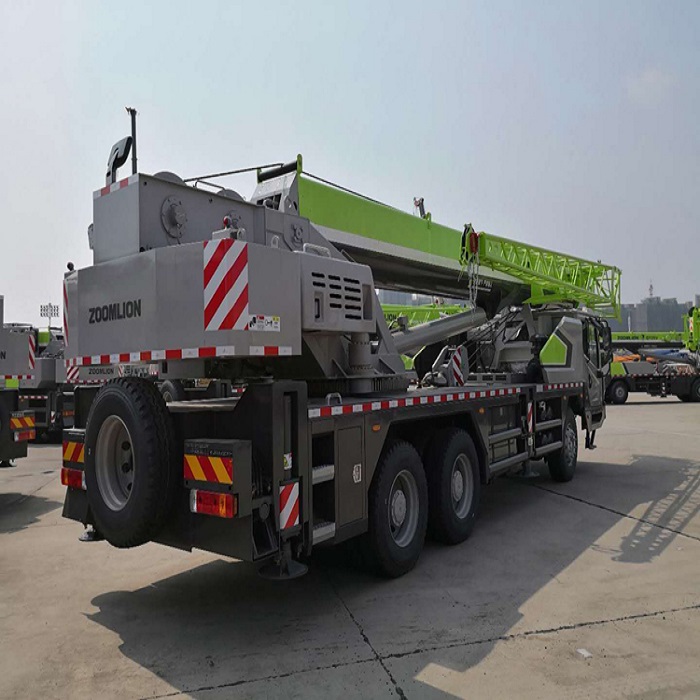

Zoomlion 25 Ton ZTC250V431 2021 hot sale Mobile Truck Crane

Introduction:

4-section U-shaped 35m long main boom with superior comprehensive lifting capacity, max.lifting moment is 960kN•m,max. lifting moment ( fully extended) is 600kN•m, the outrigger span is large and the hoisting ability is strong.


Product Detail

Product Tags

Features

Excellent quality and reasonable price

Dead weight 27.8 tons in driving condition.

Best driving and off-road capability in the industry

WEICHAI WP7 engine + FAST manual transmission is adopted. Large engine displacement, large power reserve

Specification

Item Unit Value Remarks
Working    performance Max.    rated lifting capacity kg 25000
Max.    load moment of basic boom kN.m 960
Max.    load moment of main boom(fully extended) kN.m 600
Max.    load moment of basic boom m 11.4
Max.    lifting height of main boom m 35.4 These parameters do not include

deflection of main boom

and jib

Max.    lifting height of jib m 43
Working    speeds Max.    hoist rope speed(Main winch) m/min 135 At    the 4th  layer
Max.    hoist rope speed(Auxiliary winch) m/min 135 At    the 2nd   layer
Boom    demrricking up time s 25
Boom    demrricking up time s 25
Slewing  speed r/min 0    -2.7
Driving    parameters Max.    driving  speed km/h 90
Max.    gradeability % 42
Turning    diameter m ≤20
Min.  ground clearance mm 250
Oil    consumption per hundred kilometers L 28
Mass Deadweight    in driving condition kg 27800
Complete    vehicle kerb mass kg 27670
Front    axle load kg 6500
Rear    axle load kg 21300
Dimensions Overall    dimensions(L×W×H) mm 13100×2500×3450
Outrigger    spread(L) m 5.4
Outrigger    spread(W) m Fully    extended:6.2,
Intermediately    extended:4.25
Tail    slewing radius mm 3265
Main    boom length m 10.7    - 35.0
Boom    angle ° -1    - 80
jib    length m 8
Offset ° 0、15、30
