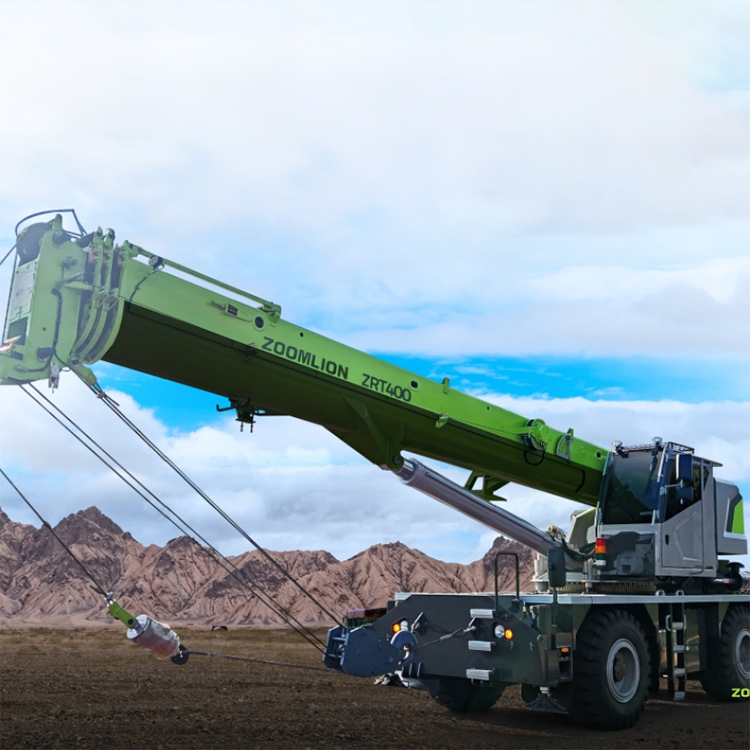

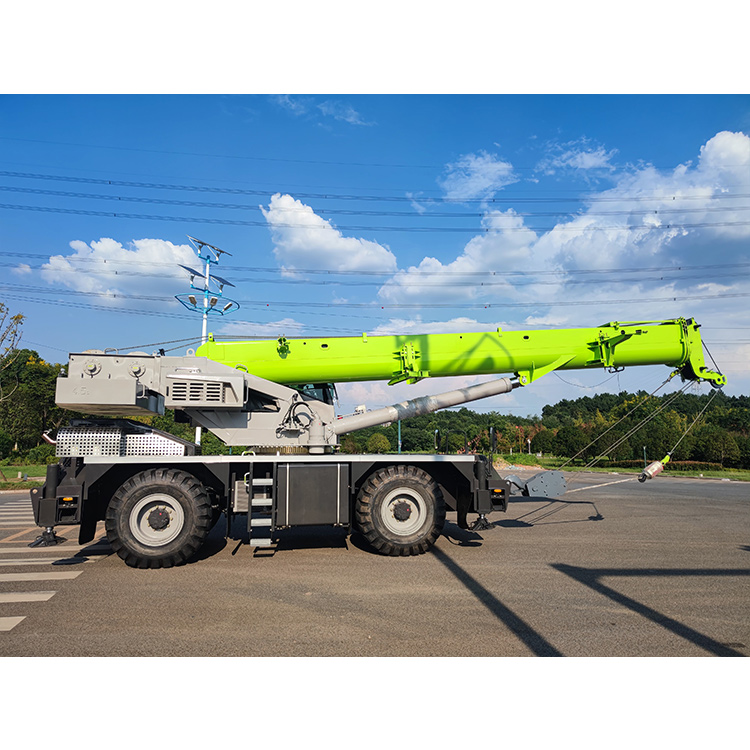

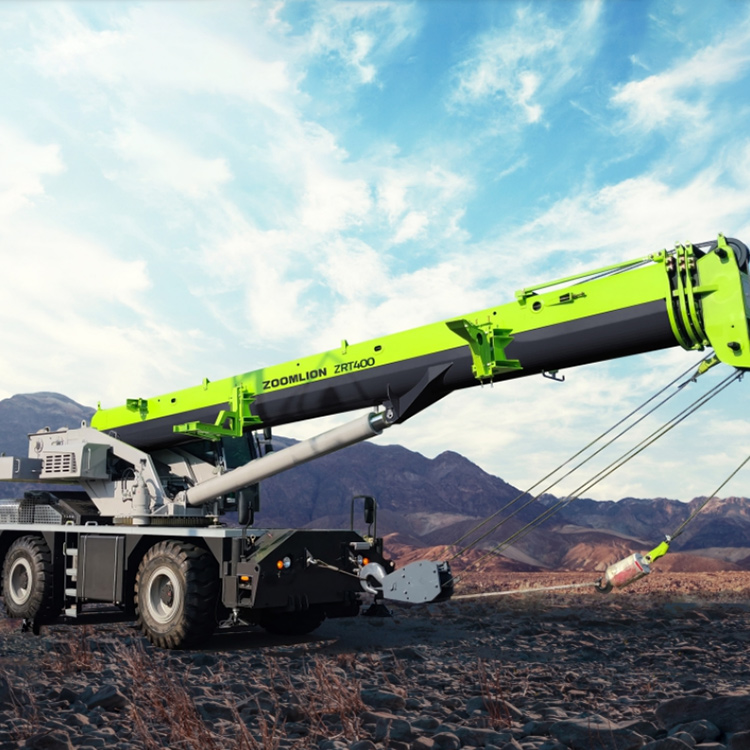

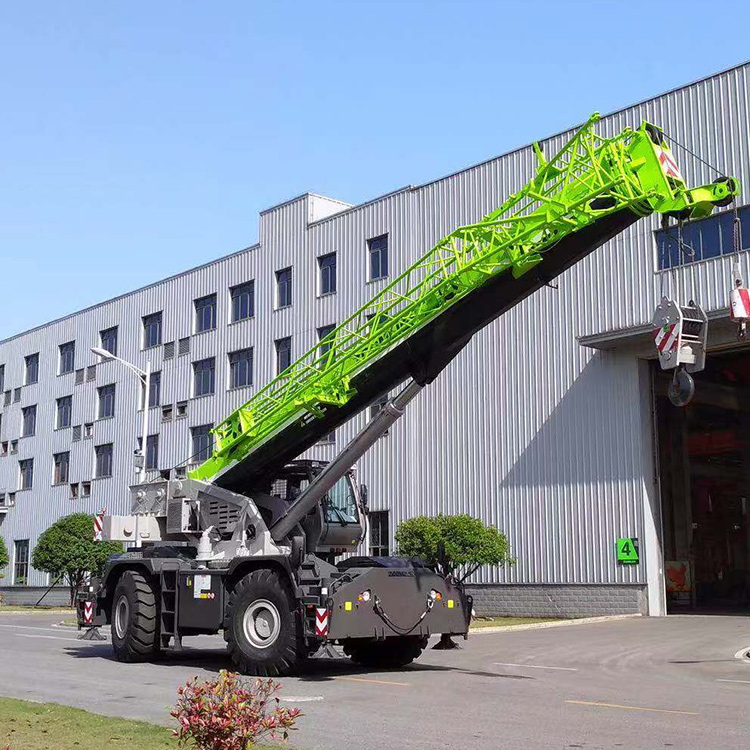

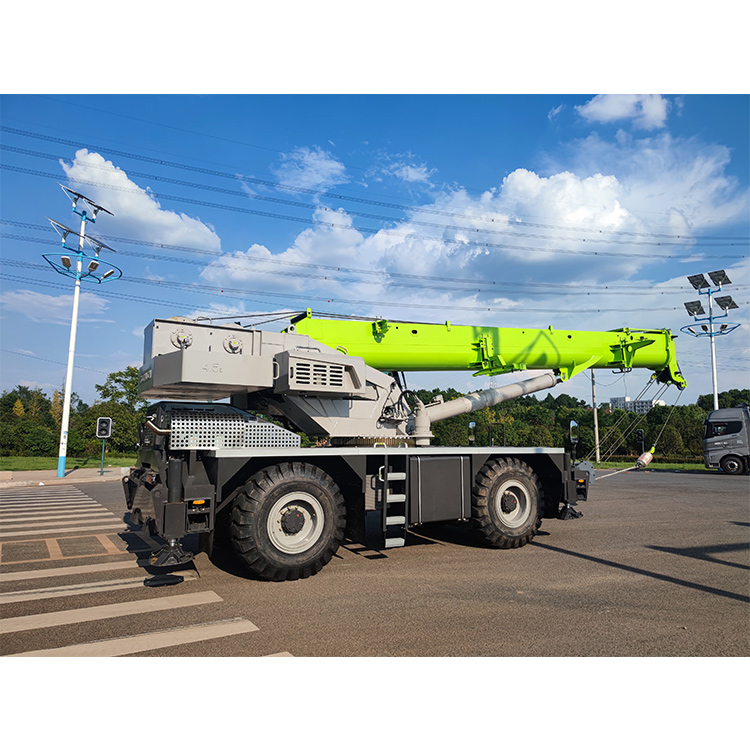

Zoomlion 40 Ton ZRT400 2021 hot sale Rough Terrain Crane
Strong lifting performance:
33m long large U-shaped section main boom
Four-wheel multi-mode steering, max. speed 38km/h, max. gradeability is 55%
Stable and reliable:
DONGFENG Cummins engine + DANA transmission + Meritor axles
Mature modular design guarantees its reliability
Comfortable and durable:
New generation panoramic cab with front sliding window and panoramic skylight
Optimized layout with human-friendly design in driver’s cab, enables convenient and comfortable operation
Items | Unit | Value | ||
Series | ||||
Working performance | 1 | Max lifting capacity × Working radius | kg.m | 40000×2.5 |
2 | Max lifting moment of basic boom | kN.m | 1305 | |
3 | Max lifting moment of main boom fully extended | kN.m | 792 | |
4 | Max lifting height of main boom | m | 33.9 | |
5 | Maximum lifting height of jib | m | 47.8 | |
Dimension | 6 | Dimension (L×W×H) | mm | 12360×2690×3650 |
7 | Outrigger span(V×H) | mm | 6500×6400 | |
8 | Main boom length(fully retracted~extended) | mm | 10200~33000 | |
9 | Jib length(1 jib/ 2 jib) | mm | 8200~14000 | |
10 | Main boom angle | ° | -2~80 | |
11 | Slewing range | 360° | ||
Working speed | 12 | Max speed of single rope of main winch | m/min | 145 |
13 | Telescoping out time | s | 50 | |
14 | Telescoping in time | s | 45 | |
15 | Derricking up time | s | 45 | |
16 | Derricking down time | s | 60 | |
17 | Slewing speed | r/min | 0~2.8 | |
Hydraulic system | 18 | Rated working pressure | MPa | 28 |
19 | tank capacity | L | 650 | |
Mess | 20 | Dead weight | kg | 31000 |
21 | Front axle load | kg | 15900 | |
22 | Rear axle load | kg | 15100 | |
Driving parameter | 23 | Max driving speed(Forward / backward) | km/h | 38/38 |
24 | wheelbase | mm | 3700 | |
25 | Track width (front / rear) | mm | 2170 | |
26 | Gradeability | % | 55 |
